Revolt - Bad Boy 48", 54", 61" Stand-On Mower (2024) IDLER ARM MOUNT Parts Diagram

48", 54", 61" Stand-On Mower

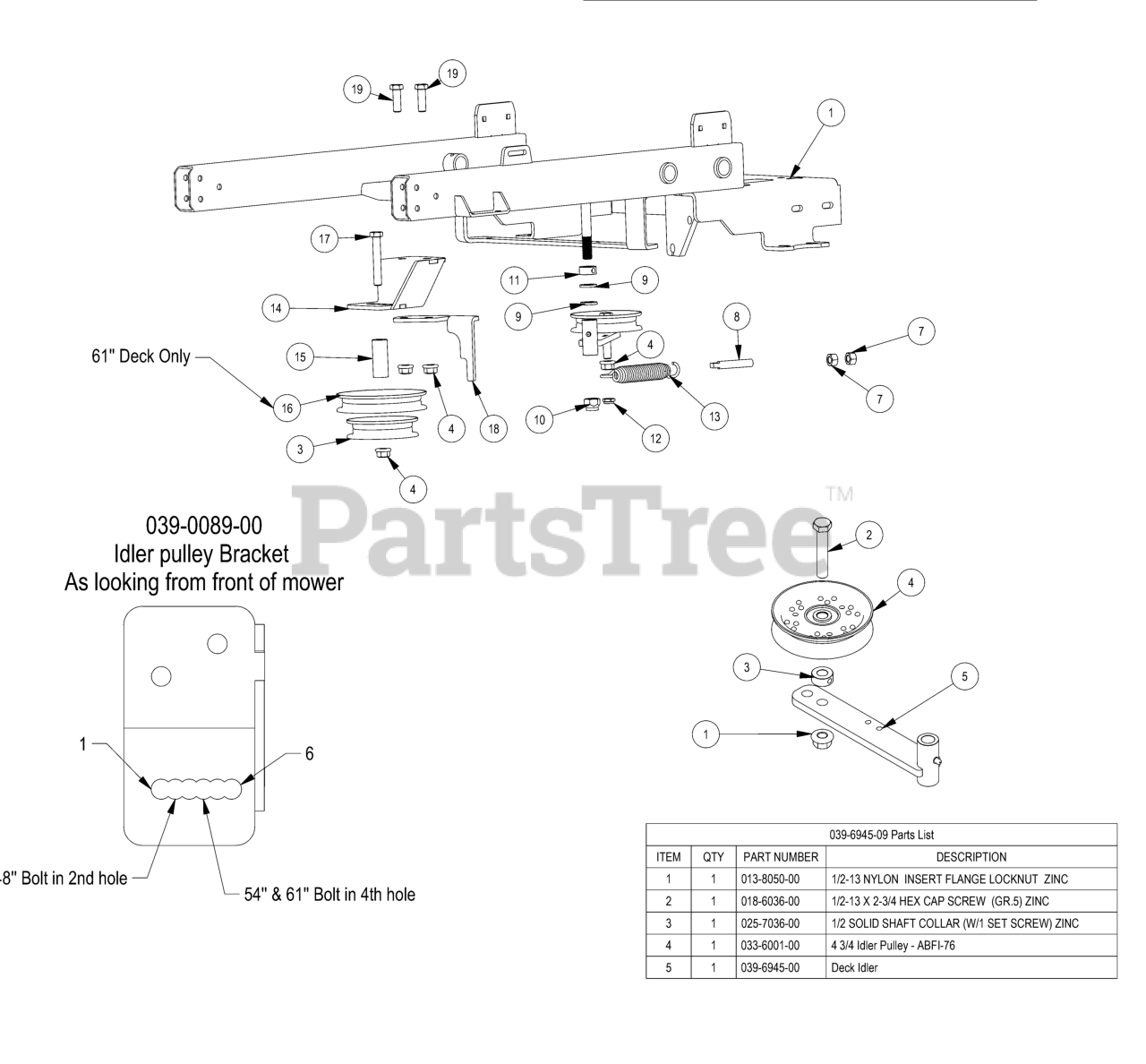

IDLER ARM MOUNT Parts Diagram

  • Title

1

Bad Boy 070-5220-19

2019 Stand On Frame

$854.99

$

Usually ships in 4-7 days

0

2

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

3

Bad Boy 033-6001-00

4 3/4 Idler Pulley

$33.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

6

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

7

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

8

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 5

0

9

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

11

Bad Boy 025-7020-00

5/8 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

13

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

14

Bad Boy 039-0089-00

Idler Pulley Bracket Weldment 2019 Stand On

$30.99

$

Usually ships in 4-7 days

0

15

Bad Boy 025-5343-00

Stand On Spacer 2.5''

$11.99

$

Usually ships in 4-7 days

0

16

Bad Boy 033-7201-25

5-3/4 Idler Pulley-Capitol Stampings

$37.99

$

In Stock, Qty 20+

0

17

Bad Boy 018-0050-00

1/2-13 X 3-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

18

Bad Boy 039-0119-00

2019 Stand On Clutch Stop Bracket

$10.99

$

Usually ships in 4-7 days

0

19

Bad Boy 018-5006-00

1/2-13 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0
