Revolt - Bad Boy 36" Stand-On Mower (2025) Frame Parts Diagram

36" Stand-On Mower

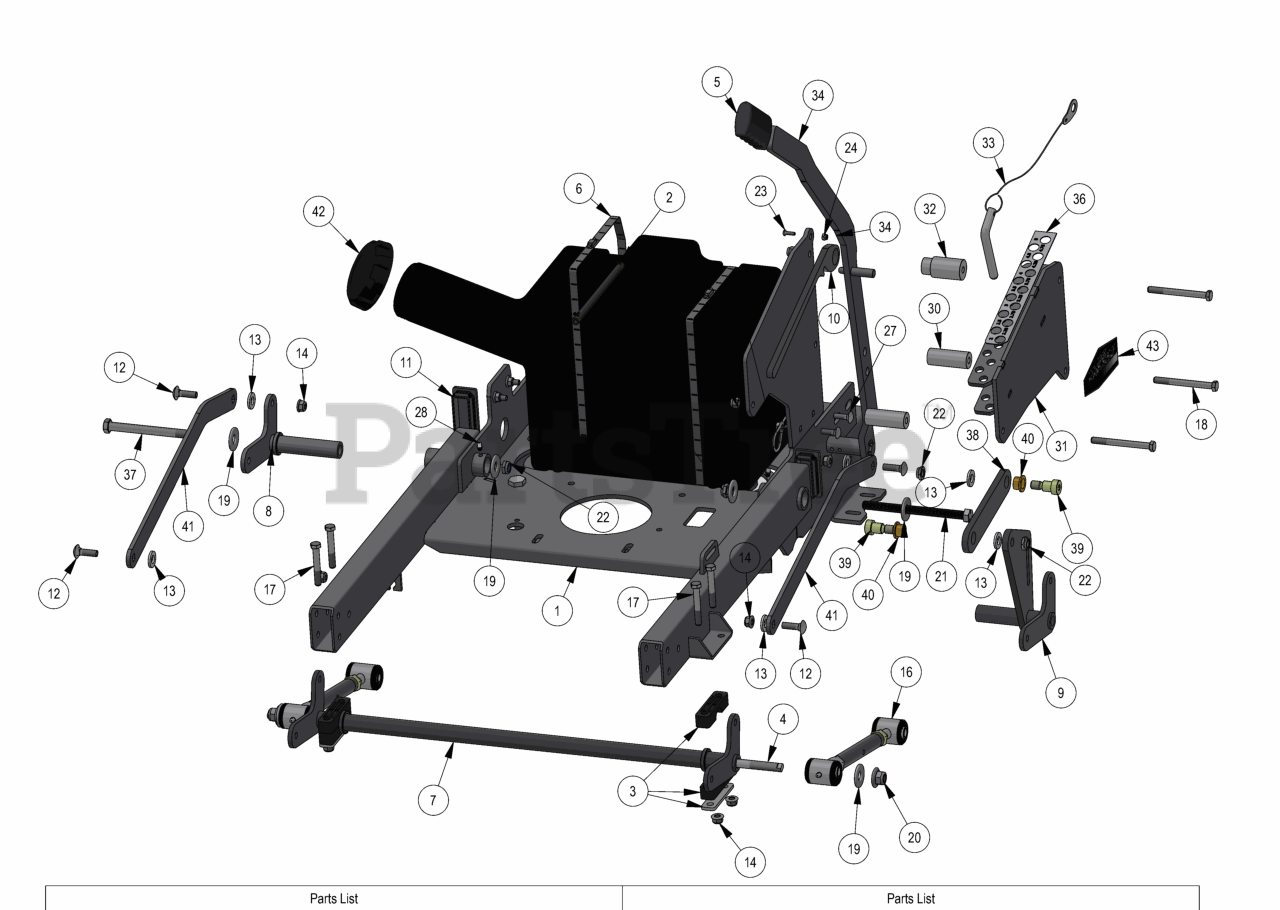

Frame Parts Diagram

  • Title

1

Bad Boy 070-5221-20

2020 36" Stand On Frame

$

$

Not available

2

Bad Boy 051-8067-08

Revolt Fuel Line Assembly

$

$

Not available

3

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

4

Bad Boy 048-6058-00

2020 36 Stand On Turnbuckle Rod

$45.99

$

Usually ships in 4-7 days

0

5

Bad Boy 069-4012-00

2019 Stand On Lift Grip

$15.99

$

Usually ships in 4-7 days

0

6

Bad Boy 072-0051-00

2019 Stand On Gas Tank Strap

$12.99

$

In Stock, only 2 left!

0

7

Bad Boy 028-0036-00

Revolt Front Actuator Bar Weldment 2020 36" Black

$79.99

$

Usually ships in 4-7 days

0

8

Bad Boy 028-0037-00

Revolt Rear Actuator Bar Weldment RH 2020 36" Black

$22.99

$

Usually ships in 4-7 days

0

9

Bad Boy 028-0038-00

Revolt Rear Actuator Bar Weldment LH 2020 36" Black

$

$

Not available

10

Bad Boy 031-0093-00

2019 Stand On Deck Lever Lock

$25.99

$

Usually ships in 4-7 days

0

11

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

12

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

13

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

14

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

15

Bad Boy 020-1001-00

Revolt Cotter Pin for 7/8" to 1" shank

$

$

Currently unavailable

16

Bad Boy 048-6000-00

2018 Maverick Turnbuckle (Top Link)

$85.99

$

In Stock, only 3 left!

0

17

Bad Boy 018-0028-00

3/8-16 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-0084-00

3/8-16 X 3-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

19

Bad Boy 019-2040-00

1/2" Flat Washer

$1.99

$

Usually ships in 4-7 days

0

20

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 018-0038-00

1/2-13 x 6 1/2 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

22

Bad Boy 018-4010-00

1/2''-13 Jam Nut

$1.99

$

In Stock, Qty 11

0

23

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

24

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

25

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 013-8049-00

5/16" Nylock Flange Nut Zinc

$0.99

$

In Stock, Qty 17

0

27

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

28

Bad Boy 024-3050-00

1/4" Press in Grease Fitting

$1.49

$

Usually ships in 4-7 days

0

29

Bad Boy 026-0271-00

2023 Stand On Inner Adjustment Plate

$

$

Not available

30

Bad Boy 025-5343-00

Stand On Spacer 2.5''

$11.99

$

Usually ships in 4-7 days

0

31

Bad Boy 026-0256-00

2023 Stand On Outer Adjustment Plate weldment

$

$

Not available

32

Bad Boy 025-0081-00

Stand On Spacer 2.5'' With shoulder

$15.99

$

Usually ships in 4-7 days

0

33

Bad Boy 040-4004-00

2023 stand on Height Adj Pin

$17.99

$

Usually ships in 4-7 days

0

34

Bad Boy 031-7151-00

2023 Stand On SD Lift Lever Weldment

$

$

Not available

35

Bad Boy 067-0030-00

Fuel Tank

$287.99

$

Usually ships in 4-7 days

0

36

Bad Boy 091-0025-00

2023 Revolt Deck Hight decal

$17.99

$

Usually ships in 4-7 days

0

37

Bad Boy 018-1090-00

1/2-13 X 5 1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

38

Bad Boy 028-5002-00

2023 lever secondary linkage

$

$

Not available

39

Bad Boy 018-3001-00

5/8'' x 5/8'' Shoulder Bolt

$16.99

$

In Stock, Qty 11

0

40

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK

$4.99

$

In Stock, Qty 11

0

41

Bad Boy 026-0304-00

2023 SD-36 Stand-on Actuator Linkage

$

$

Currently unavailable

42

Bad Boy 066-8076-00

Fuel Cap

$34.99

$

In Stock, only 3 left!

0

43

Bad Boy 091-0521-00

Revolt Deck Height Decal

$

$

Currently unavailable
