Revolt - Bad Boy 36" Stand-On Mower (2024) Pump Idler Parts Diagram

36" Stand-On Mower

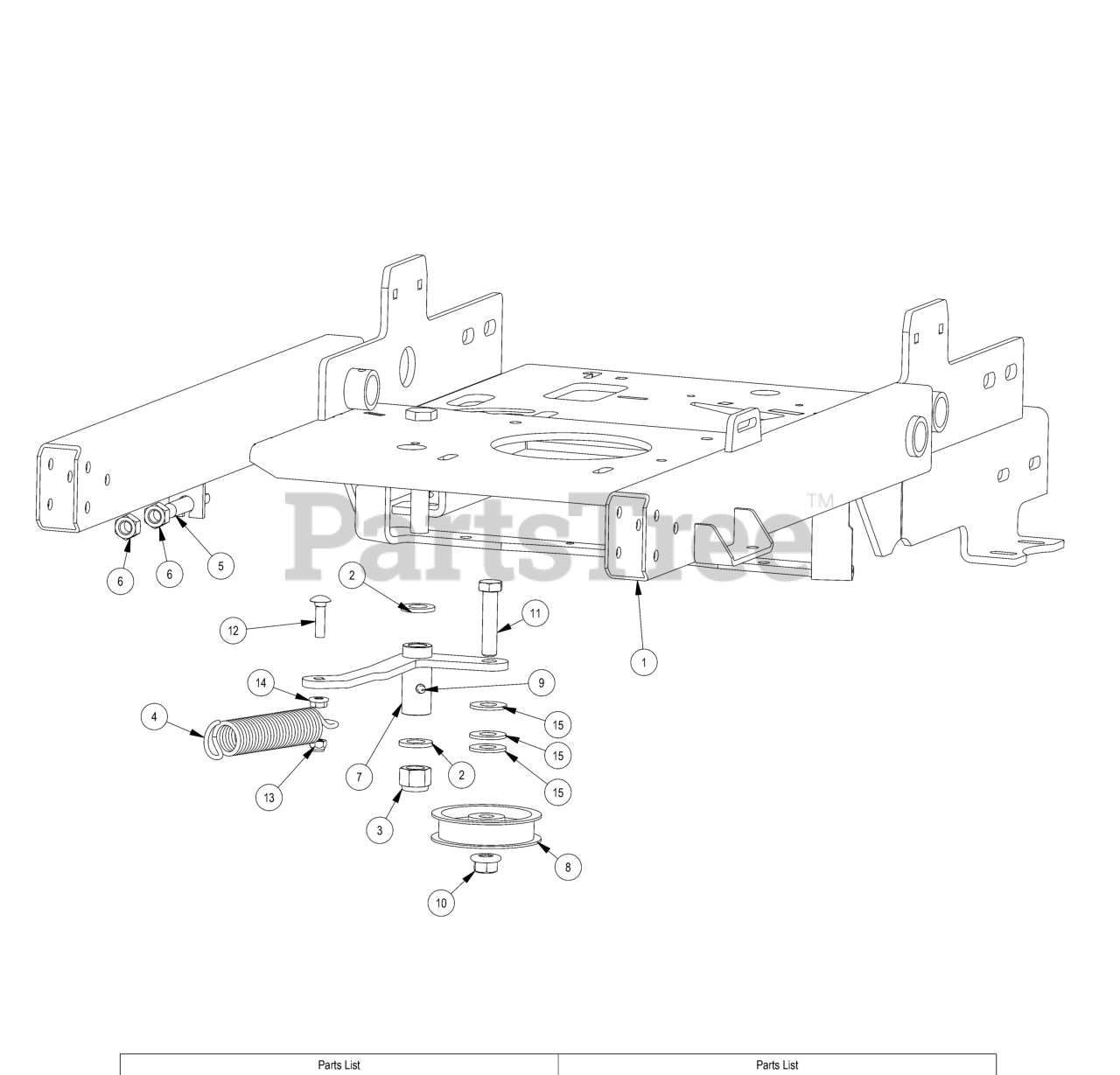

Pump Idler Parts Diagram

  • Title

1

Bad Boy 070-5221-20

2020 36" Stand On Frame

$

$

Not available

2

Bad Boy 019-6017-00

.630 ID x 1.122 OD x .142 THK Plastic Washer

$0.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

4

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 6

0

6

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

7

Bad Boy 039-6947-00

36 Pump Idler Arm Weldment

$34.99

$

Usually ships in 4-7 days

0

8

Bad Boy 033-1876-00

3.25 Flat Idler Pulley

$30.99

$

In Stock, only 2 left!

0

9

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 018-6037-00

1/2-13 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

13

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

14

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

15

Bad Boy 019-5010-00

.565 ID X 1.250 OD X .095 THK FLAT WASHER BRASS

$2.99

$

Usually ships in 4-7 days

0
