RER 80 AT - Electrolux/AYP Rear-Engine Riding Mower MOWER DECK Parts Diagram

Rear-Engine Riding Mower

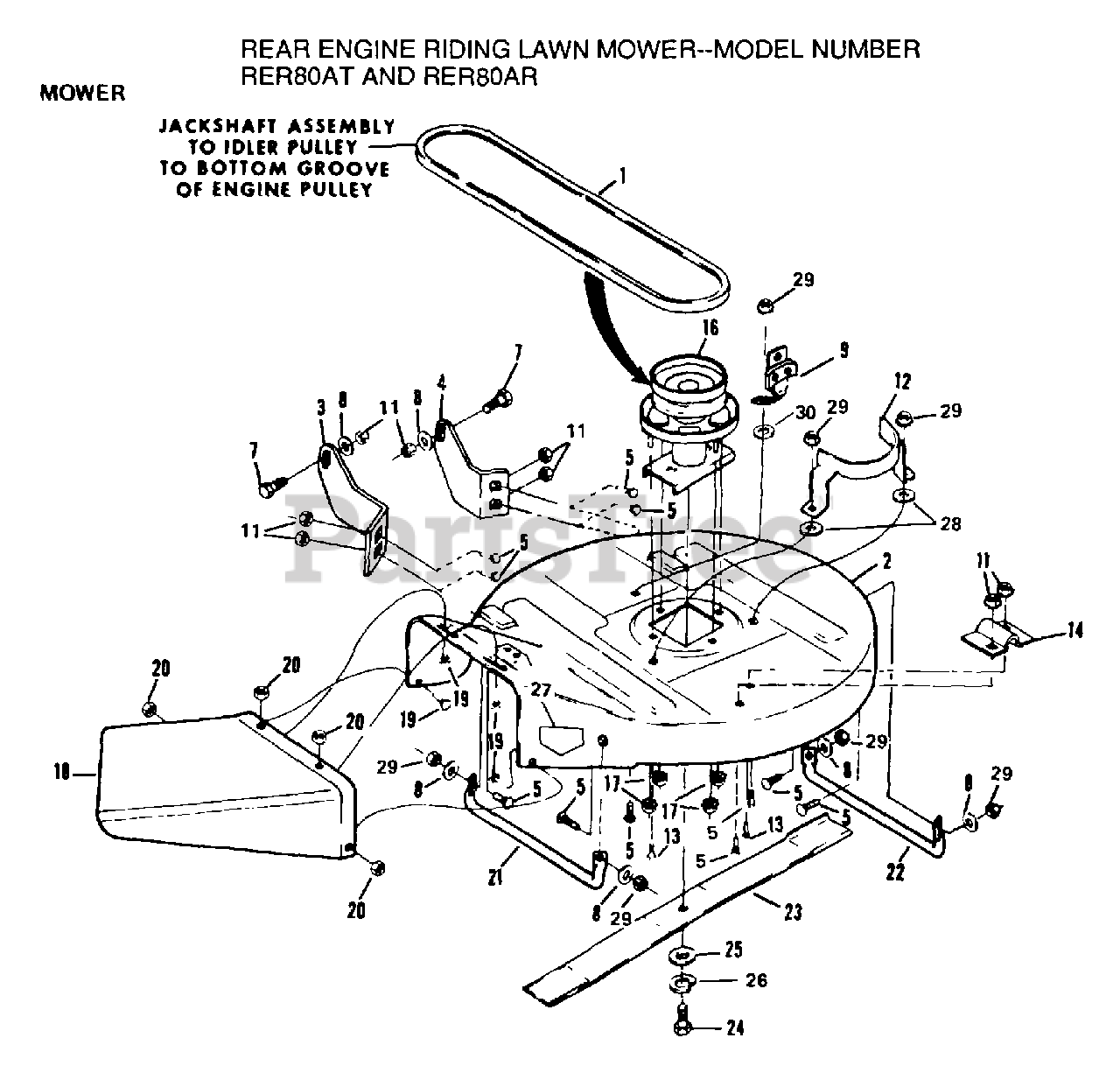

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 110975X

V-BELT RER
(Superseded to 583661101)

$31.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 74668

HOUSING W/SILK SCREENING

$

$

Not available

3

Electrolux/AYP 74710

HOUSING LIFTE T

$

$

Not available

4

Electrolux/AYP 74709

HOUSING LIFTE T

$

$

Not available

5

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

7

Electrolux/AYP 6091J

SHOULDER BOLT T

$

$

Not available

8

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

$

$

Not available

11

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 6069J

BELT SNUBBER T

$

$

Not available

13

Electrolux/AYP 72250508

SUB= 72140508

$

$

Not available

14

Electrolux/AYP 72368

MOWER SUPPORT T

$

$

Not available

16

Electrolux/AYP 110988X

JACKSHAFT RER

$

$

Not available

17

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 71534

DISCHARGE GUARD

$

$

Not available

19

Electrolux/AYP 72250406

SUB= 72140406

$

$

Not available

20

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

21

Electrolux/AYP 74824

SUB= 120893X

$

$

Not available

$

$

Not available

23

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 67354

SUB= 19133808

$

$

Not available

26

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

27

$

$

Not available

27

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

28

$

$

Not available

29

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

30

$

$

Not available
