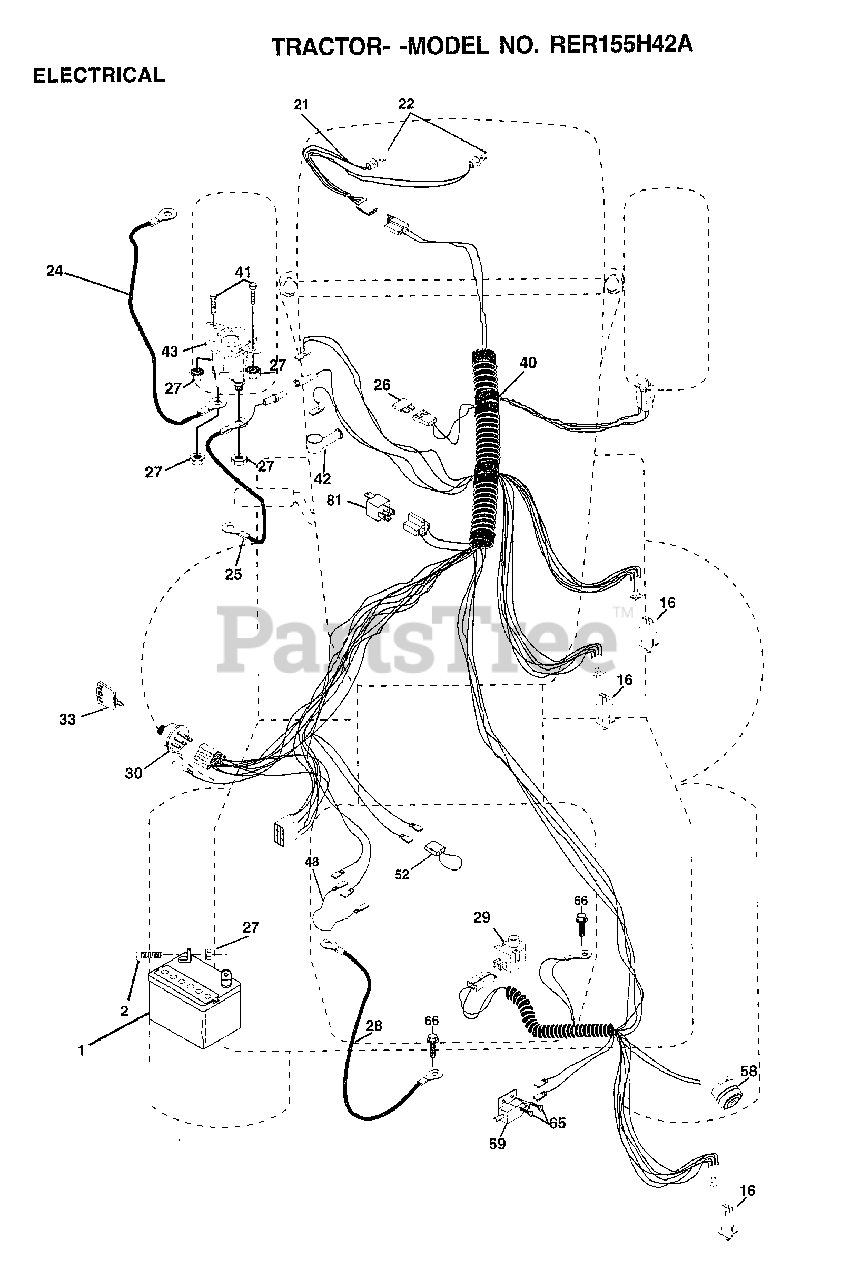

RER 155H42 A - Electrolux/AYP Rear-Engine Riding Mower ELECTRICAL Parts Diagram

Rear-Engine Riding Mower

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 144925

SUB= 123899X
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

16

Electrolux/AYP 153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 166181

HARNESS.ASM.LIGHT W/4152J
(Superseded to 532166181)

$

$

Not available

22

Electrolux/AYP 4152J

HEADLAMP BULB
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4799J

"CABLE T, BATTERY"
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 165987

CABLE.BATTERY.CRD
(Superseded to 532165987)

$30.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 166180

FUSE.15 AMP
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

27

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 127725X

"CABLE.GRD.6GA/18""BLACK"
(Superseded to 583673501)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 160784

SWITCH.PLUNGER
(Superseded to 532160784)

$20.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 163968

SWITCH.IGN.
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 140401

KEY MLD GEN DELTA
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

40

Electrolux/AYP 170164

HARNESS IGN CORD
(Superseded to 583096901)

$218.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 71110408

BOLT HXHD FIN
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 145673

SUB= 146154
(Superseded to 532145673)

$24.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 140844

ADAPTER AMMETER
(Superseded to 532140844)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 141940

PROTECTION LOOP
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 169419

BUZZER CRD
(Superseded to 532169420)

$74.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 166299

SWITCH.FBI.CRD

$5.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 17211008

SCREW
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0
