RER 145H36 D - Electrolux/AYP Rear-Engine Riding Mower MOWER LIFT Parts Diagram

Rear-Engine Riding Mower

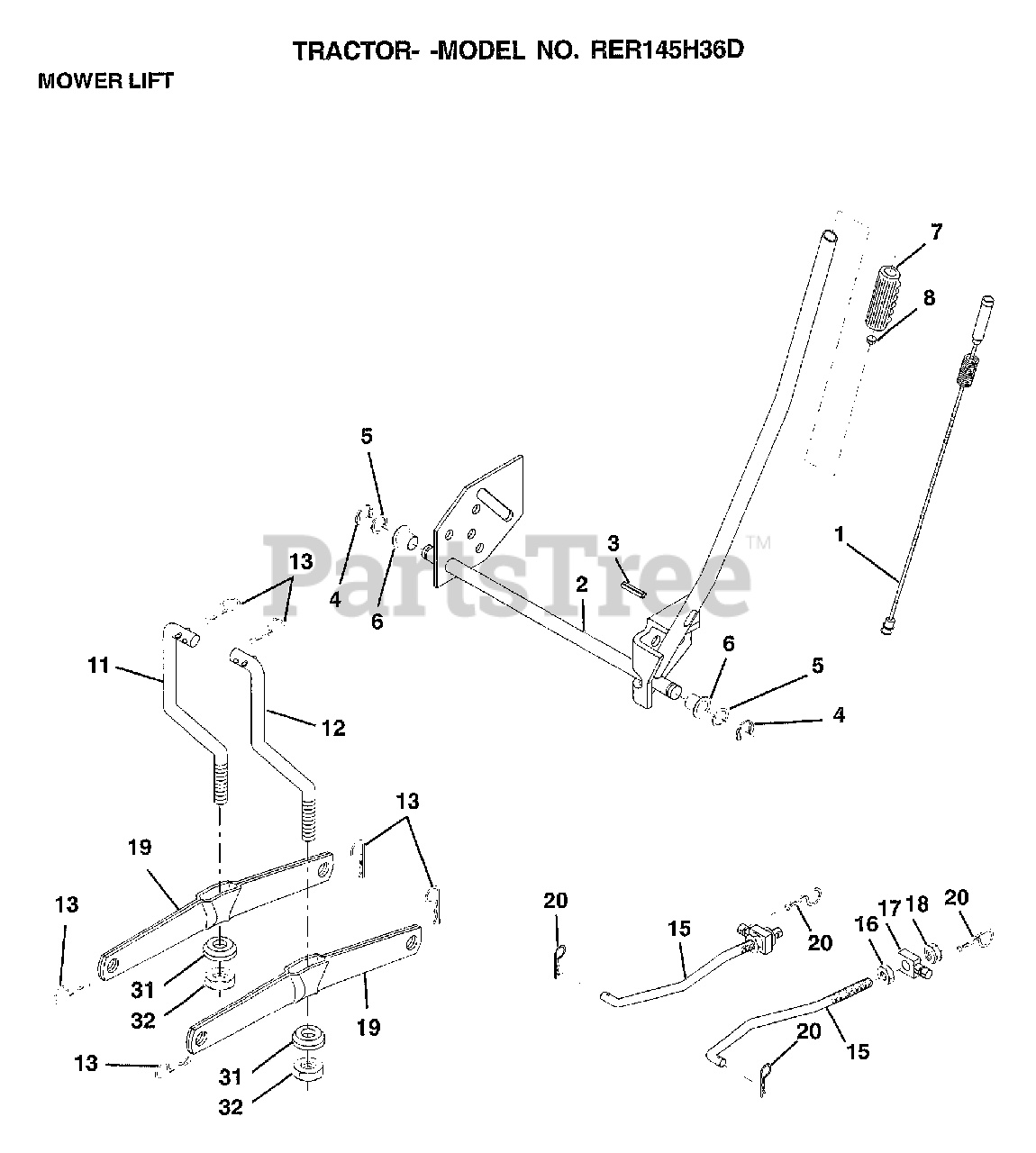

MOWER LIFT Parts Diagram

  • Title
1

Electrolux/AYP 159460

WIRE ASM W.SPRING
(Superseded to 532159460)

$26.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 159471

"SHAFT ASM LIFT,RH"
(Superseded to 532159471)

$54.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 105767X

PIN-GROOVE LT
(Superseded to 532105767)

$6.49

$

In Stock, only 3 left!

0

$

$

Not available

5

Electrolux/AYP 19211621

WASHER
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

8

$

$

Not available

11

Electrolux/AYP 165829

LINK.LIFT.LH.CRD
(Superseded to 532165828)

$26.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 165831

LINK.LIFT.RH.CRD
(Superseded to 532165830)

$

$

Not available

13

Murray 4939M

SUB= 85902

$

$

Not available

15

Electrolux/AYP 173288

LINK, FRONT
(Superseded to 532173288)

$13.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

19

Electrolux/AYP 139868

ARM SUSP REAR
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 163552

RETAINER SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 169865

BEARING
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

NUT.CROWNLOCK.3/8
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0
