RER 1236 A - Electrolux/AYP Rear-Engine Riding Mower DRIVE Parts Diagram

Rear-Engine Riding Mower

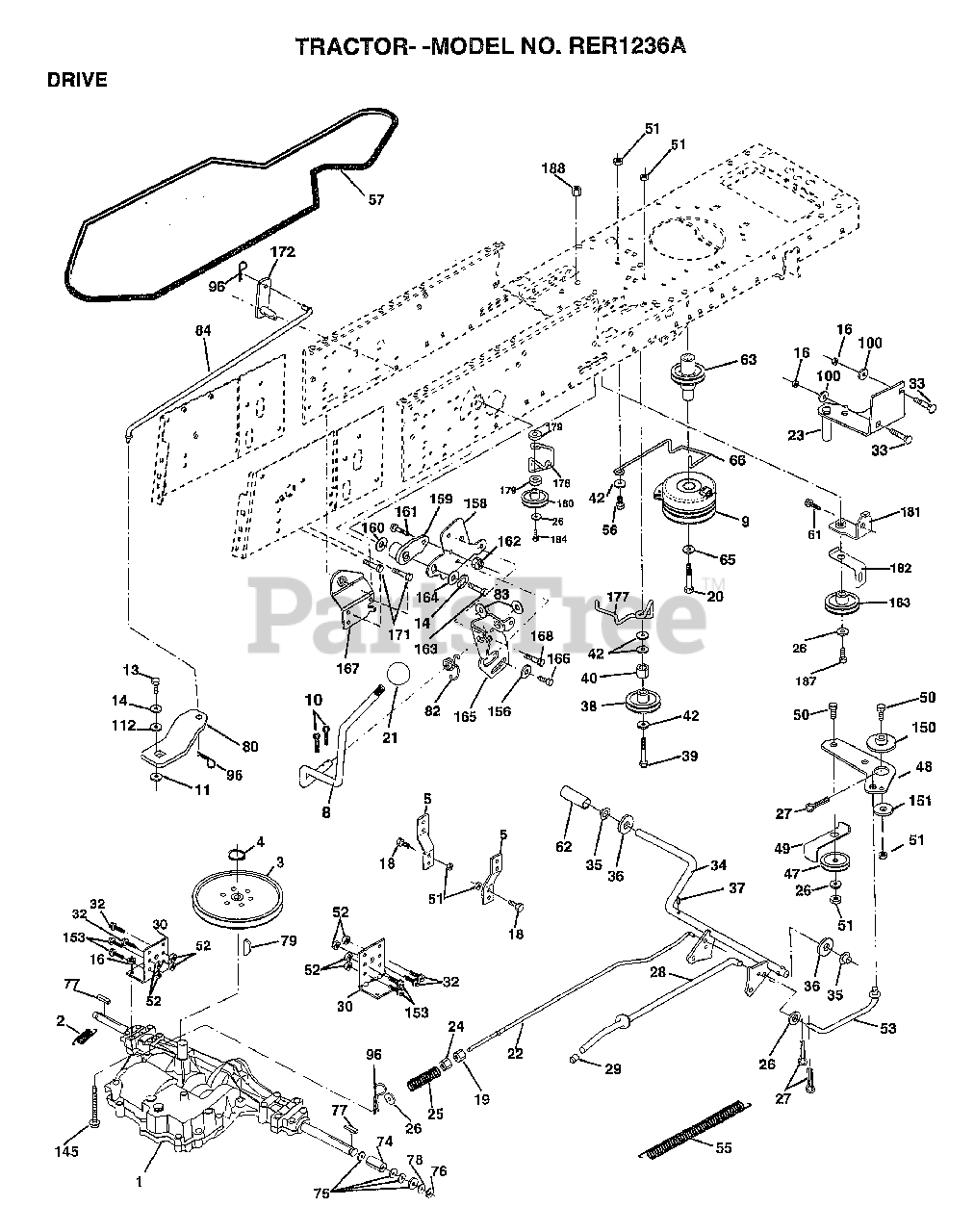

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

1

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

2

Electrolux/AYP 146682

SPRING.BRAKE.RETU
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 165999

"PULLEY.TRANSAXLE.7"""
(Superseded to 584450701)

$60.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

5

Electrolux/AYP 121520X

STRAP TORQUE
(Superseded to 532121520)

$7.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 165619

ROD.SHIFT.FENDER.ADJ.LT.CRD

$16.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 167162

CLUTCH.ELEC.EVX
(Superseded to 532160889)

$284.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 74550412

BOLT.1/4-28.W/PAT
(Superseded to 871040412)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 150280

BOLT.7/16-20X4.25
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 165811

ROD.BRAKE.PMST.CRD
(Superseded to 584450501)

$26.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 154978

BRACKET.CLUT.MTG.

$

$

Not available

24

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 106888X

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 145204

ROD.BRAKE.PARK.LT
(Superseded to 532145204)

$

$

Not available

29

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 130807

TRANSAXLE MTG BKT
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 165496

SHAFT.ASM.PEDAL.FOOT.CRD
(Superseded to 532165496)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

37

Murray 1572H

SUB= 2882J

$

$

Not available

38

Electrolux/AYP 165936

PULLEY.FLAT
(Superseded to 532165936)

$31.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

47

Murray 127783

SUB= 139245

$

$

Not available

48

Electrolux/AYP 154407

BELLCRANK.CLUTCH
(Superseded to 532154407)

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 123205X

RETAIN BELT
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

52

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

In Stock, Qty 6

0

56

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 165631

"V-BELT.KEV.111"""
(Superseded to 532165631)

$84.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

62

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 145868

PULLEY.CLUTCH.EVX
(Superseded to 532145868)

$100.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 154778

KEEPER-BELT
(Superseded to 532154778)

$12.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 137057

SPACER AXLE
(Superseded to 532137057)

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

78

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

79

Murray 2228M

SUB= 2228M1

$

$

Not available

80

Electrolux/AYP 145090

"ARM.SHIFT.20""TIRE"
(Superseded to 532145090)

$7.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 123782X

"SPRING,TORSION"
(Superseded to 532123782)

$4.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

84

Electrolux/AYP 165621

LINK.SHIFT.CRD
(Superseded to 584450301)

$21.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

100

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

112

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 74490540

BOLT.HEX.FLGHD
(Superseded to 874490540)

$4.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 165850

BUSHING.BELLCRANK.GRD.DR
(Superseded to 532165850)

$

$

Not available

151

Electrolux/AYP 19133210

WASHER
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

153

Electrolux/AYP 74760516

SUB= 77394

$

$

Not available

156

Electrolux/AYP 166002

WASHER.SRRTD.5/16
(Superseded to 532166002)

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 165589

BRKT.SHIFT.MOUNT
(Superseded to 532437458)

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 165494

HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

160

Electrolux/AYP 19292016

WASHER
(Superseded to 819292016)

$7.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 72140406

BOLT T
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

163

Electrolux/AYP 74780416

NLA
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 19091010

WASHER.5/8X.281X10GA
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 165623

BRKT.PIVOT.LEVER
(Superseded to 532438250)

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 166880

SCREW.5/16-18X5/8
(Superseded to 532166880)

$6.49

$

Usually ships in 3-10 days

0

167

Electrolux/AYP 165588

BRKT.SUPT.SHIFT.CRD
(Superseded to 574988801)

$

$

Not available

168

Electrolux/AYP 165492

BOLT.SHOULDER.5/16-18X.561
(Superseded to 532165492)

$10.99

$

In Stock, only 3 left!

0

171

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

172

Electrolux/AYP 165635

SHAFT.ASM.SHIFT.FRT.CRD
(Superseded to 584324101)

$14.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 165932

KEEPOER.FLAT.IDLER
(Superseded to 532165932)

$7.99

$

Usually ships in 3-10 days

0

178

Electrolux/AYP 165933

KEEPER.BELT.IDLER
(Superseded to 532165933)

$3.99

$

Usually ships in 3-10 days

0

179

Electrolux/AYP 120958X

WASHER
(Superseded to 532120958)

$

$

Not available

180

Electrolux/AYP 165630

PULLEY.FLAT.IDLER
(Superseded to 532165630)

$34.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 165797

BRKT.IDLER.GRD.DR.CRD
(Superseded to 532165797)

$2.99

$

Usually ships in 3-10 days

0

182

Electrolux/AYP 165634

"KEEPER.BELT.2.5"".OD.CRD"

$5.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 165626

PULLEY.V-IDLER
(Superseded to 532165626)

$34.99

$

In Stock, only 2 left!

0

184

Electrolux/AYP 17490644

SCREW.HXWSH.3/8
(Superseded to 817490644)

$

$

Not available

187

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

188

Electrolux/AYP 110436X

SUB= 9151R

$

$

Not available
