Renegade Gas - Bad Boy Zero-Turn Mower (2025) Seat & Brake Parts Diagram

Zero-Turn Mower

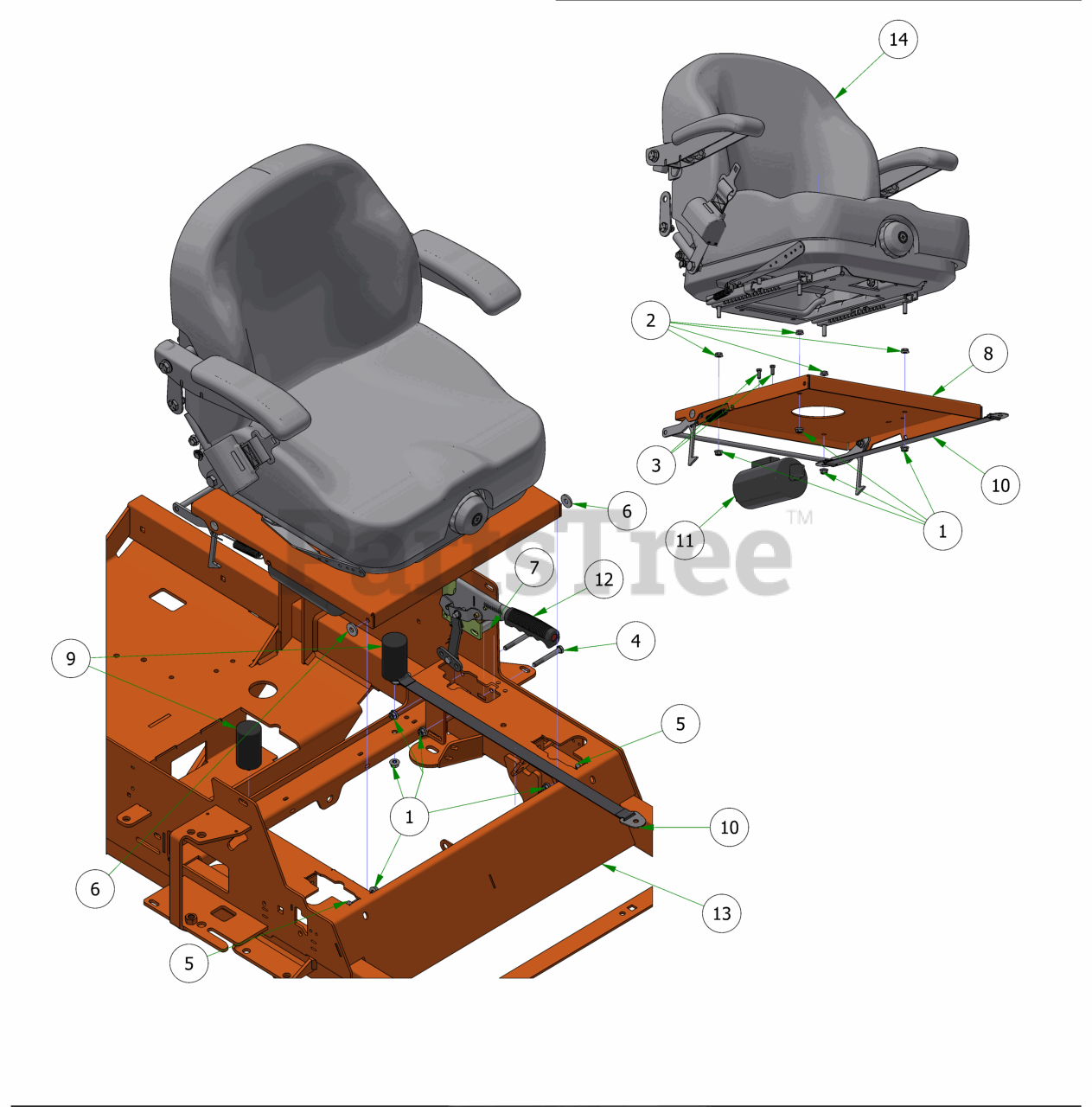

Seat & Brake Parts Diagram

  • Title

1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

2

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

3

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

4

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

6

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

7

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE SPACER ZINC

$7.99

$

Usually ships in 4-7 days

0

8

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

$136.99

$

Usually ships in 4-7 days

0

9

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

$24.99

$

Usually ships in 4-7 days

0

10

Bad Boy 064-8083-00

Seat Strap with Buckles

$26.99

$

In Stock, only 3 left!

0

11

Bad Boy 067-0020-19

2019 Outlaw EPA Cannister Assembly

$50.99

$

Usually ships in 4-7 days

0

12

Bad Boy 069-0001-00

2019 Brake Handle Assembly

$151.99

$

In Stock, only 2 left!

0

13

Bad Boy 070-5373-19

2019 Renegade Gas Frame - Powdercoated

$1210.99

$

Usually ships in 4-7 days

0

14

Bad Boy 071-6065-25

2025 Seats Inc Suspension

$946.99

$

Usually ships in 0 days

0
