Renegade Gas - Bad Boy Zero-Turn Mower (2024) ENGINE MOUNTING Parts Diagram

Zero-Turn Mower

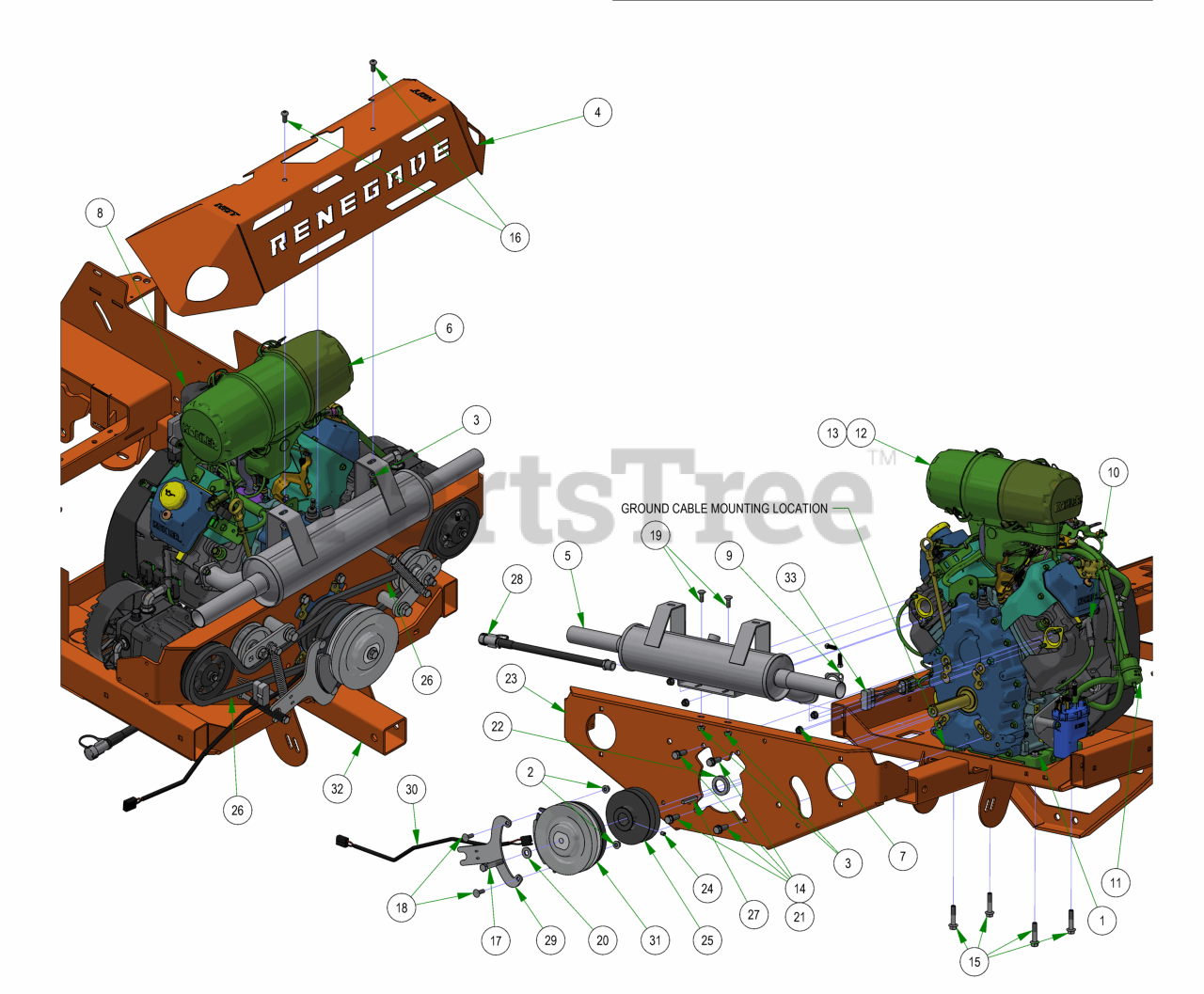

ENGINE MOUNTING Parts Diagram

  • Title

1

Bad Boy 013-0009-00

3/8-16 HEX FLANGE TOP LOCKNUT ZINC

$2.49

$

Usually ships in 4-7 days

0

2

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

3

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

4

Bad Boy 014-5066-00

2023 Renegade Gas Muffler Cover

$22.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-1027-00

KOHLER ECH980 MUFFLER

$176.99

$

Usually ships in 4-7 days

0

6

Bad Boy 015-9990-00

KOHLER ECH980 ENGINE

$5699.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-8240-00

M8 Nut Connects the 015-1012-00 and the 015-8240-00

$7.99

$

Usually ships in 4-7 days

0

8

Bad Boy 015-0077-04

Kohler ECV/ECH980 OIL FILTER

$25.99

$

In Stock, only 3 left!

0

9

Bad Boy 015-9990-01

ECV/ECH 980 MUFFLER GASKET

$11.99

$

Usually ships in 4-7 days

0

10

Bad Boy 015-9990-02

Spark Plug - Kohler ECV/ECH 980

$

$

Not available

11

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 19

0

12

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 10

0

13

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, only 4 left!

0

14

Bad Boy 018-0047-00

7/16-16 x 1 1/4" Hex Bolt GR 5

$

$

Currently unavailable

15

Bad Boy 018-0115-00

3/8-16x1-3/4 Gr5 Hex Flange Screw Zinc Clear

$

$

Currently unavailable

16

Bad Boy 018-5007-00

5/16-18 X 3/4 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$1.49

$

Usually ships in 4-7 days

0

17

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX Bolt GR 8 W/ Patch

$3.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

19

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

20

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

21

Bad Boy 019-8053-00

7/16 SPLIT LOCKWASHER (GR.8) ZINC YELLOW

$0.99

$

Usually ships in 4-7 days

0

22

Bad Boy 025-0076-00

Horizontal Engine Spacer

$10.99

$

Usually ships in 4-7 days

0

23

Bad Boy 026-8010-00

Pump Plate - 2019 Horizontal Gas-Orange

$

$

Not available

24

Bad Boy 030-0075-00

5/16-24 X 3/8 SOCKET SET SCREW (KNURLED CUP PT) PLAIN

$1.99

$

In Stock, only 2 left!

0

25

Bad Boy 033-8001-00

Outlaw Renegade Double V Pulley

$58.99

$

Usually ships in 4-7 days

0

26

Bad Boy 041-8001-00

2020 Renegade Pump Belt, 42.99"

$85.99

$

In Stock, Qty 9

0

27

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 1 left!

0

28

Bad Boy 051-5409-00

Kohler 980 Oil Drain

$30.99

$

Usually ships in 4-7 days

0

29

Bad Boy 057-5919-00

2019 Outlaw Renegade Clutch Bracket

$30.99

$

Usually ships in 4-7 days

0

30

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

31

Bad Boy 070-5040-00

Clutch for Diesel/Vanguard

$454.99

$

In Stock, only 3 left!

0

32

Bad Boy 070-5373-19

2019 Renegade Gas Frame - Powdercoated

$1210.99

$

Usually ships in 4-7 days

0

33

Bad Boy 086-9009-00

ECH980 Wiring Harness Adapter

$45.99

$

Usually ships in 4-7 days

0
