Renegade Gas - Bad Boy Zero-Turn Mower (2024) DECK HEIGHT CAM & LOCK Parts Diagram

Zero-Turn Mower

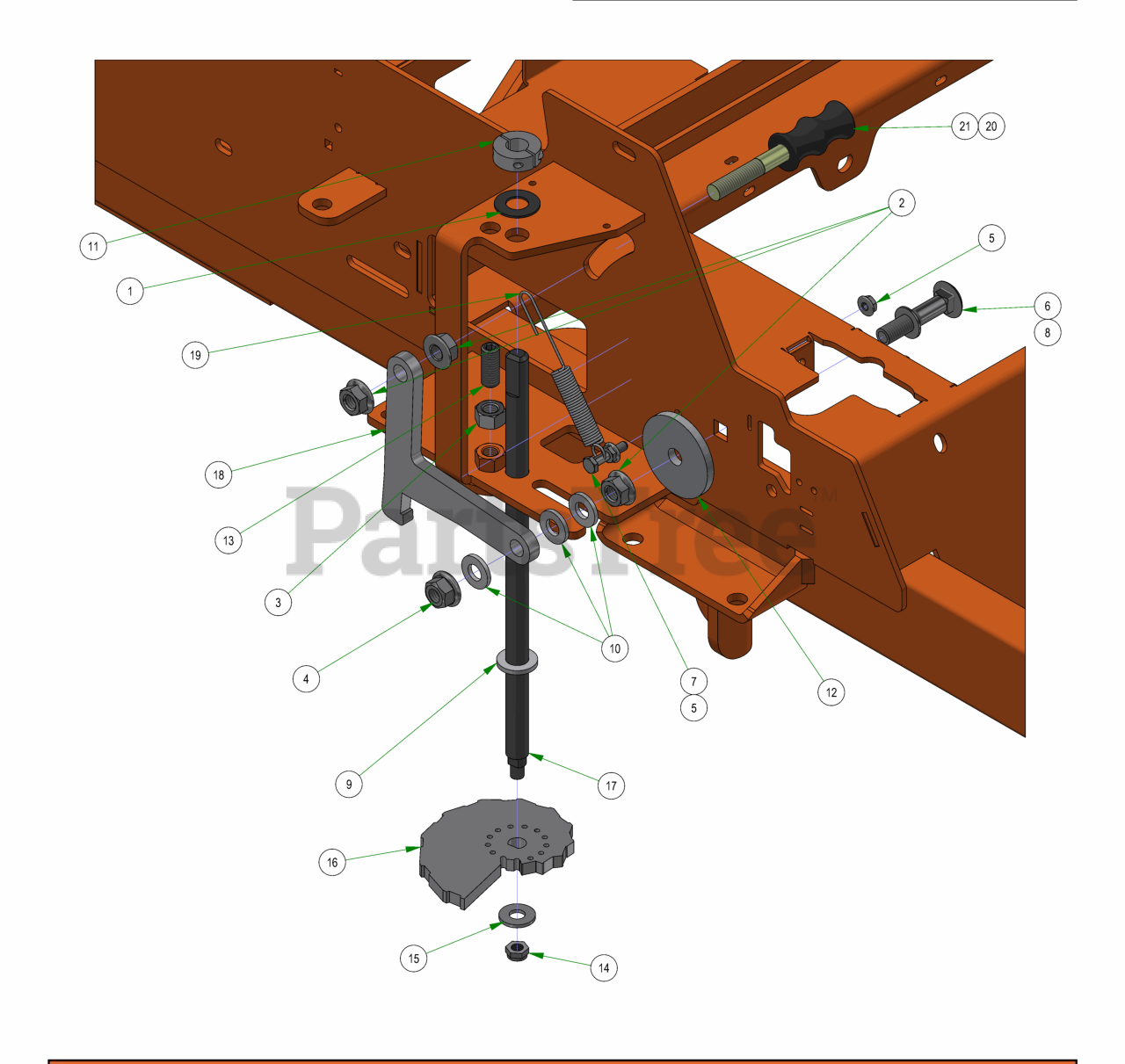

DECK HEIGHT CAM & LOCK Parts Diagram

  • Title

1

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

3

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 018-0043-00

2 1/2 x 1/2 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

7

Bad Boy 018-4702-00

1/4-20 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 019-0007-00

.517 SQ WDTH ID X .937 OD X .060 THICK F/W PHOS/OIL

$1.49

$

In Stock, only 2 left!

0

9

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

11

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

12

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

13

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

14

Bad Boy 018-4011-00

3/8-24 Nylon Insert jam locknut

$1.99

$

Usually ships in 4-7 days

0

15

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

16

Bad Boy 026-1101-00

2019 Deck Height Cam

$16.99

$

Usually ships in 4-7 days

0

17

Bad Boy 028-0015-00

2019 Outlaw Gen2 Dial Rod

$18.99

$

Usually ships in 4-7 days

0

18

Bad Boy 031-0125-00

2019 Outlaw Deck Travel Lock

$30.99

$

Usually ships in 4-7 days

0

19

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

20

Bad Boy 044-4000-00

Seat Bracket Pin

$7.99

$

Usually ships in 4-7 days

0

21

Bad Boy 069-4011-00

Travel Lock Rubber Grip

$9.49

$

Usually ships in 4-7 days

0
