Renegade Gas - Bad Boy Zero-Turn Mower (2023) TANK SUBASSEMBLIES Parts Diagram

Zero-Turn Mower

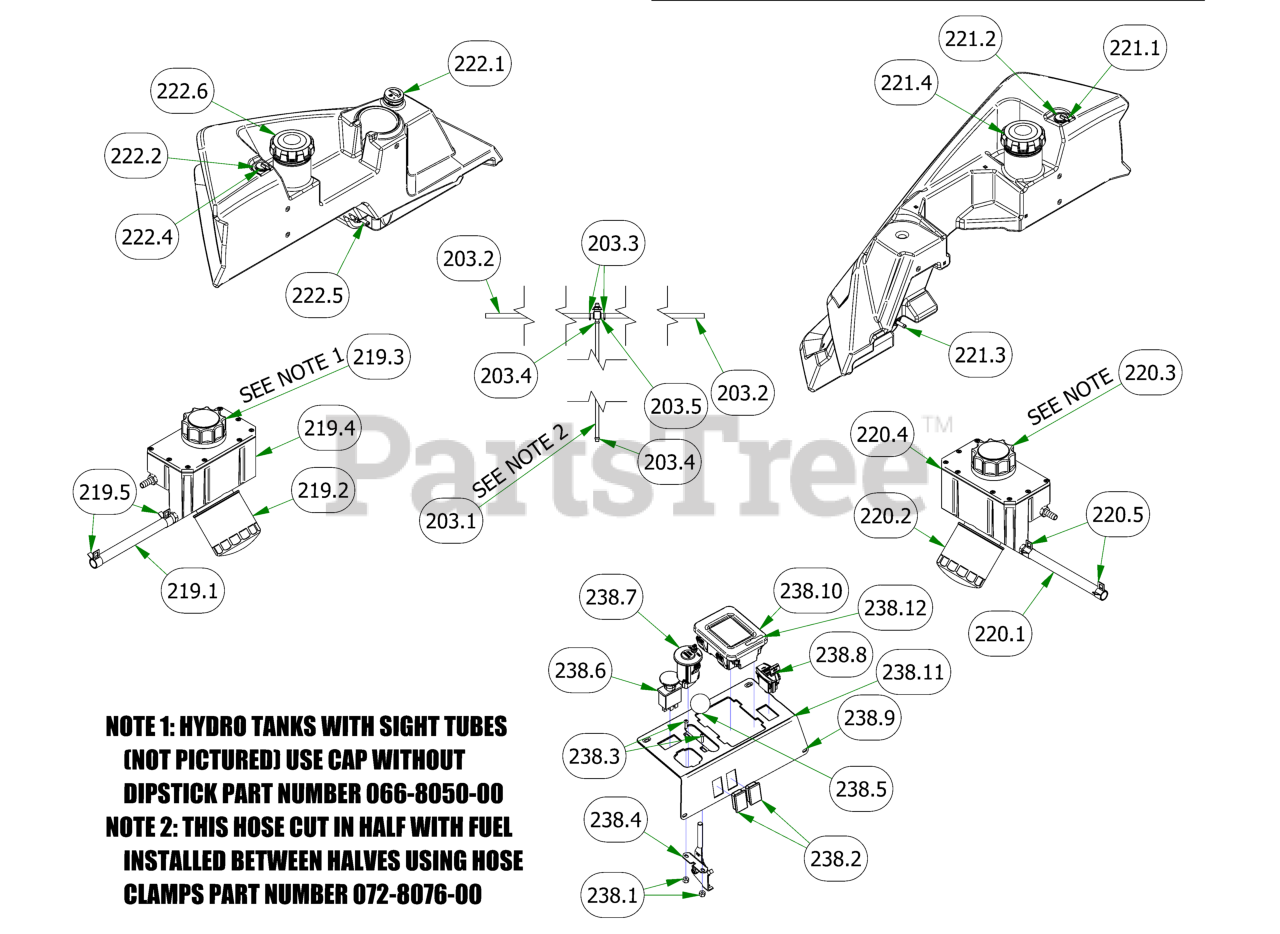

TANK SUBASSEMBLIES Parts Diagram

  • Title

203

Bad Boy 051-2019-29

2023 Rebel Rogue Renegade Fuel Line for Kohler

$

$

Currently unavailable

219

Bad Boy 067-8053-18

LH Rogue Hydro Tank Assy

$230.99

$

Usually ships in 4-7 days

0

220

Bad Boy 067-8054-18

RH Rogue Hydro Tank Assy

$230.99

$

Usually ships in 4-7 days

0

221

Bad Boy 067-9950-50

2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)

$378.99

$

Usually ships in 4-7 days

0

222

Bad Boy 067-9960-50

2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)

$265.99

$

In Stock, only 2 left!

0

238

Bad Boy 079-3482-19

Renegade Control Panel Assembly

$353.99

$

Usually ships in 4-7 days

0

203.1

Bad Boy 051-8067-22

1/4" Fuel Line Hose

$12.99

$

Usually ships in 4-7 days

0

203.2

Bad Boy 051-8075-26

5/16" fuel line hose

$19.99

$

Usually ships in 4-7 days

0

203.3

Bad Boy 072-8068-00

5/16 Fuel Line Clamp

$3.99

$

Usually ships in 4-7 days

0

203.4

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

203.5

Bad Boy 067-6058-00

3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4

$22.99

$

In Stock, only 2 left!

0

219.1

Bad Boy 051-8064-21

1/2 Clear Braded Hose Priced/Foot

$12.99

$

Usually ships in 4-7 days

0

219.2

Bad Boy 063-8014-00

Hydraulic Filter

$33.99

$

In Stock, Qty 20+

0

219.3

Bad Boy 066-8050-22

Hydraulic Tank Cap W/Dipstick

$31.99

$

Usually ships in 4-7 days

0

219.4

Bad Boy 067-8053-00

2019 Left Outlaw Gen2 Hydro Tank Suspension Only

$172.99

$

Usually ships in 4-7 days

0

219.5

Bad Boy 072-8066-00

1/2 Hose Clamp

$0.99

$

Usually ships in 4-7 days

0

220.1

Bad Boy 051-8064-21

1/2 Clear Braded Hose Priced/Foot

$12.99

$

Usually ships in 4-7 days

0

220.2

Bad Boy 063-8014-00

Hydraulic Filter

$33.99

$

In Stock, Qty 20+

0

220.3

Bad Boy 066-8050-22

Hydraulic Tank Cap W/Dipstick

$31.99

$

Usually ships in 4-7 days

0

220.4

Bad Boy 067-8054-00

2019 Right Outlaw Gen2 Hydro Tank Suspension Only

$170.99

$

Usually ships in 4-7 days

0

220.5

Bad Boy 072-8066-00

1/2 Hose Clamp

$0.99

$

Usually ships in 4-7 days

0

221.1

Bad Boy 067-6054-00

Roll Over Valve Grommet

$8.49

$

In Stock, only 3 left!

0

221.2

Bad Boy 067-6070-00

Rollover Valve

$26.99

$

In Stock, Qty 20+

0

221.3

Bad Boy 067-9901-00

Fuel Pick-up

$24.99

$

Usually ships in 4-7 days

0

221.4

Bad Boy 067-9904-00

Fuel Cap

$30.99

$

Usually ships in 4-7 days

0

222.1

Bad Boy 067-4080-00

Fuel Gauge with Grommet

$34.99

$

In Stock, Qty 10

0

222.2

Bad Boy 067-6054-00

Roll Over Valve Grommet

$8.49

$

In Stock, only 3 left!

0

222.3

Bad Boy 067-6056-00

Fuel Gauge Grommet

$7.49

$

In Stock, only 3 left!

0

222.4

Bad Boy 067-6070-00

Rollover Valve

$26.99

$

In Stock, Qty 20+

0

222.5

Bad Boy 067-9901-00

Fuel Pick-up

$24.99

$

Usually ships in 4-7 days

0

222.6

Bad Boy 067-9904-00

Fuel Cap

$30.99

$

Usually ships in 4-7 days

0

238.1

Bad Boy 013-5019-00

10-24 Nylon Insert Locknut

$0.99

$

In Stock, only 2 left!

0

238.2

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

238.3

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

238.4

Bad Boy 055-2012-00

Universal Throttle Head - 2012

$27.99

$

In Stock, only 3 left!

0

238.5

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

238.6

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

238.7

Bad Boy 077-0004-00

2019 Push to Start Switch w/fob

$66.99

$

In Stock, only 2 left!

0

238.8

Bad Boy 077-2076-00

USB Port

$49.99

$

In Stock, only 4 left!

0

238.9

Bad Boy 079-3482-00

2019 Outlaw Digital Control Panel

$59.99

$

Usually ships in 4-7 days

0

238.10

Bad Boy 086-0013-00

2019 LED Display

$273.99

$

Usually ships in 4-7 days

0

238.11

Bad Boy 091-4029-22

2022 Renegade (Gas) Control Panel Decal

$

$

Not available

238.12

Bad Boy 091-4030-22

2022 Digital Display Decal

$8.99

$

Usually ships in 4-7 days

0
