Renegade Gas - Bad Boy Zero-Turn Mower (2023) STEERING Parts Diagram

Zero-Turn Mower

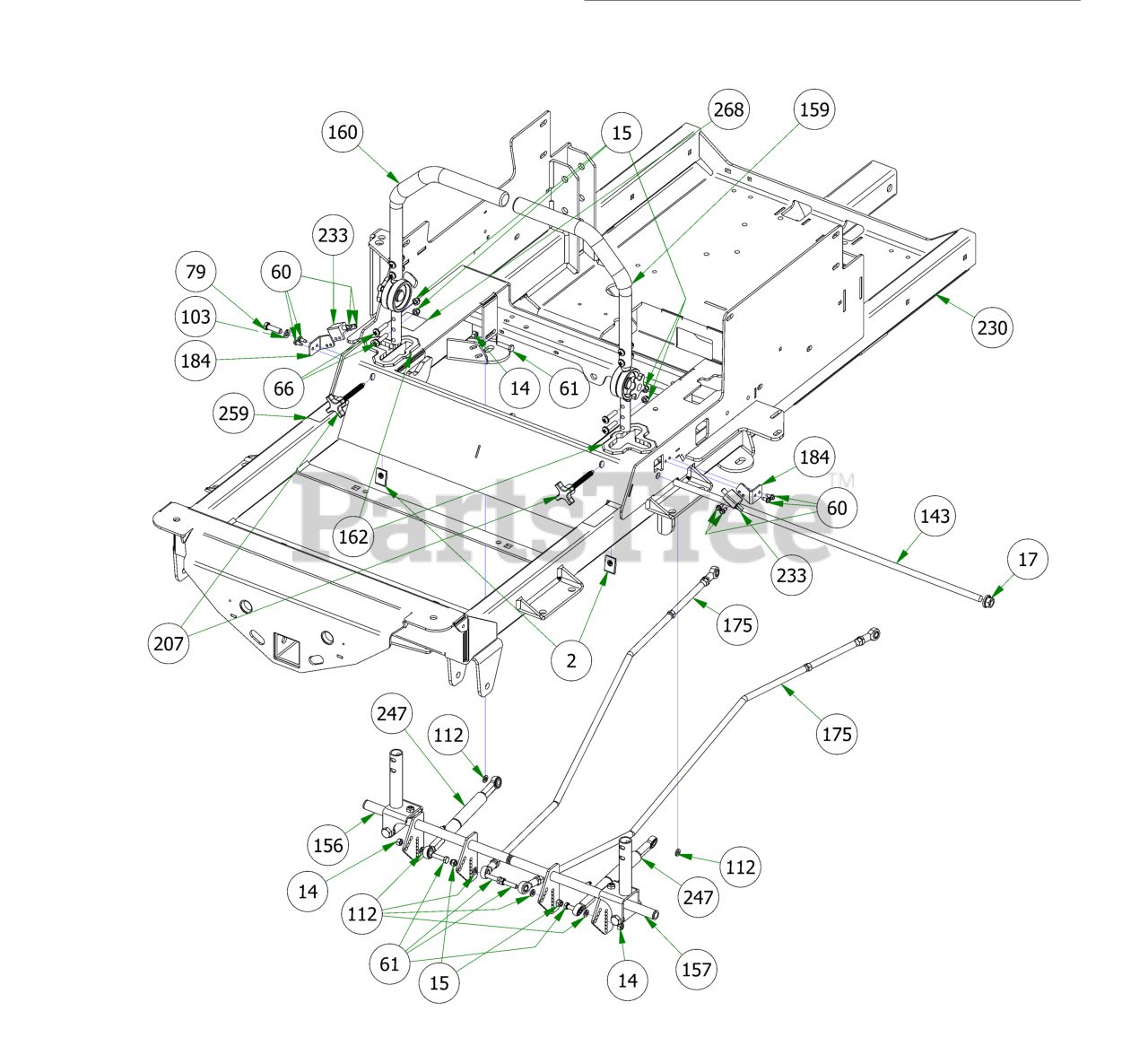

STEERING Parts Diagram

  • Title

2

Bad Boy 013-0021-00

Extruded Nut 3/8"-16 3/4" Hole Center With Patch

$4.99

$

In Stock, Qty 6

0

14

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

15

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

60

Bad Boy 018-1080-00

12-24 X 1/2 HEX WASHER UNLSOT F TCS ZINC

$2.49

$

Usually ships in 4-7 days

0

61

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

66

Bad Boy 018-2020-18

5/16-18 x 1 3/8" Futton Head Torx Drive Bolt

$1.99

$

In Stock, Qty 5

0

79

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

103

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

112

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

143

Bad Boy 028-0051-00

2019 Steering Actuator Rod

$24.99

$

Usually ships in 4-7 days

0

156

Bad Boy 031-0030-19

2019 R Series RH Arm Rod Assembly

$90.99

$

Usually ships in 4-7 days

0

157

Bad Boy 031-0031-19

2019 R Series LH Arm Rod Assembly

$90.99

$

In Stock, only 2 left!

0

159

Bad Boy 031-9005-70

2019 Left Hand ADJ. Steering Arm Kit

$151.99

$

Usually ships in 4-7 days

0

160

Bad Boy 031-9055-70

2019 Right Hand ADJ. Steering Arm Kit

$131.99

$

Usually ships in 4-7 days

0

162

Bad Boy 032-0002-00

Snap-in Drive Arm Bushing

$16.99

$

In Stock, only 2 left!

0

175

Bad Boy 035-0005-00

2019 Renegade Push Rod Assembly

$49.99

$

In Stock, only 4 left!

0

184

Bad Boy 039-2160-00

2019 Arm Switch Bracket

$14.99

$

Usually ships in 4-7 days

0

207

Bad Boy 057-5800-00

Speed Limiting Knob 3/8-16X 3"

$6.99

$

Usually ships in 4-7 days

0

230

Bad Boy 070-5373-19

2019 Renegade Gas Frame - Powdercoated

$1210.99

$

Usually ships in 4-7 days

0

233

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

247

Bad Boy 087-0002-00

2019 SROID Damper With Spherical Rod Ends

$66.99

$

Usually ships in 4-7 days

0

259

Bad Boy 091-1114-00

2018 LH/RH Steering Control Decal Roll

$16.99

$

Usually ships in 4-7 days

0

268

Bad Boy 091-4037-00

2019 Deck Release Decal

$8.49

$

Usually ships in 4-7 days

0
