Renegade Gas - Bad Boy Zero-Turn Mower (2023) FRONT END Parts Diagram

Zero-Turn Mower

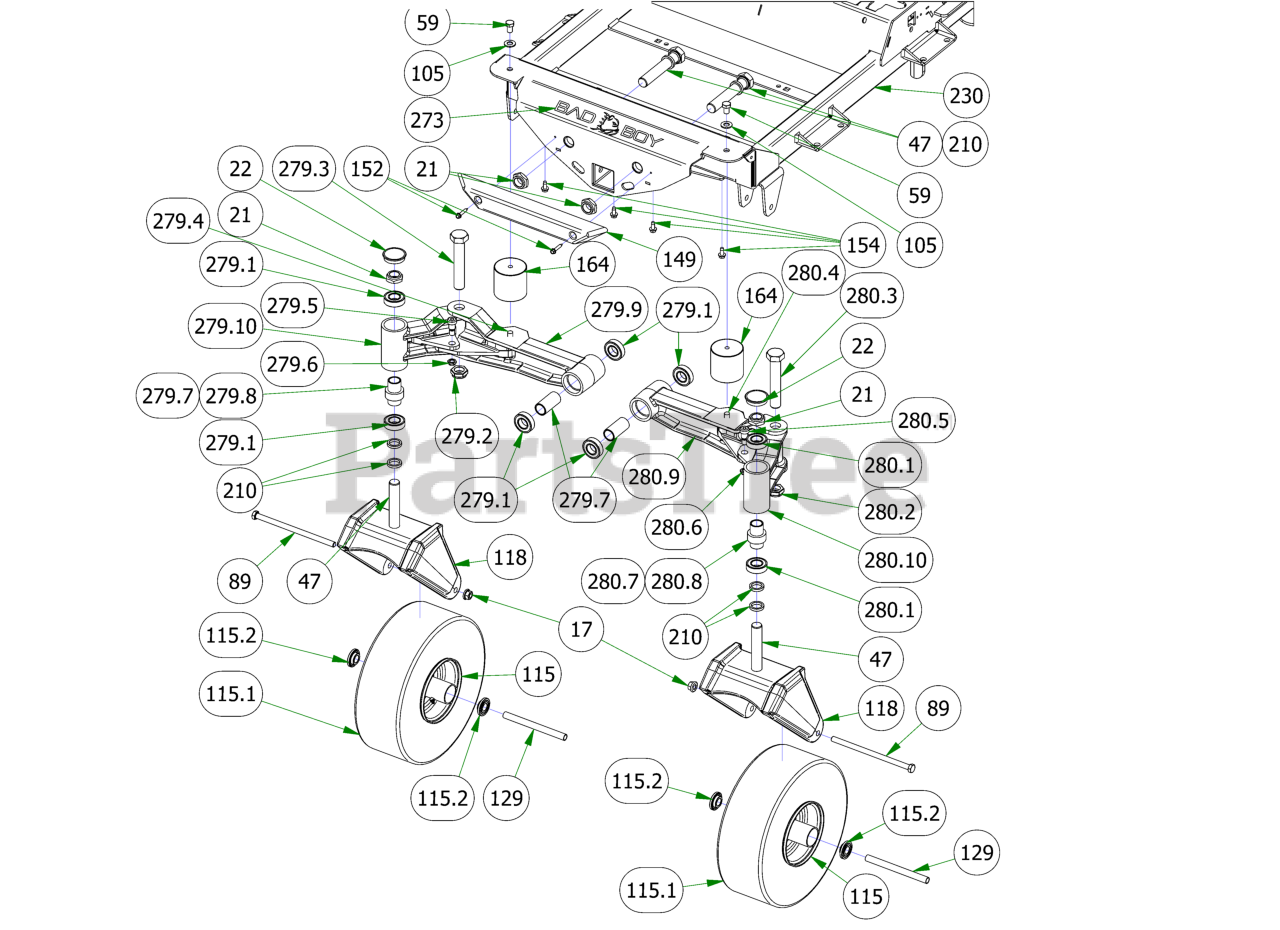

FRONT END Parts Diagram

  • Title

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 10

0

22

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 15

0

47

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

$

In Stock, only 2 left!

0

59

Bad Boy 018-1055-00

1/2-13 X 3/4 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

89

Bad Boy 018-7010-00

1/2-13 X 9 HEX CAP SCREW (GR.5) ZINC

$6.49

$

In Stock, Qty 17

0

105

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

Usually ships in 4-7 days

0

115

Bad Boy 022-0003-00

2019 15x6.00-6 Non Pneumatic Black Front Assembly

$182.99

$

In Stock, Qty 6

0

118

Bad Boy 023-0004-20

2020 R Series Cast Front Fork

$193.99

$

Usually ships in 4-7 days

0

129

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

149

Bad Boy 029-8000-00

2017 XP BUMPER

$33.99

$

In Stock, only 2 left!

0

152

Bad Boy 030-7039-00

1/4-14 X 1-1/2 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

154

Bad Boy 030-7042-00

5/16-18 X 3/4 HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

164

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

210

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

$

In Stock, Qty 9

0

230

Bad Boy 070-5373-19

2019 Renegade Gas Frame - Powdercoated

$1210.99

$

Usually ships in 4-7 days

0

273

Bad Boy 091-4063-00

Flying Bulldog Front Bumper Decal

$13.99

$

Usually ships in 4-7 days

0

276

Bad Boy 091-8002-00

Independetly Articulating Front Suspension Arms Patent Decal

$5.99

$

Usually ships in 4-7 days

0

279

Bad Boy 250-0032-03

2022 61/72 Rogue/Renegade Front Suspension Asy RH

$284.99

$

Usually ships in 4-7 days

0

280

Bad Boy 250-0033-03

2022 61/72 Rogue/Renegade Front Suspension Asy LH

$284.99

$

Usually ships in 4-7 days

0

115.1

Bad Boy 022-0004-00

15x6-6 Tire Only

$91.99

$

Usually ships in 4-7 days

0

115.2

Bad Boy 022-7010-00

1-3/4" Bearing-Large Bore Front Rim

$21.99

$

In Stock, Qty 20+

0

279.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

279.2

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

279.3

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

$

In Stock, only 2 left!

0

279.4

Bad Boy 018-2009-00

1/2-13 x 1" Stud

$6.49

$

Usually ships in 4-7 days

0

279.5

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

279.6

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

279.7

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

279.8

Bad Boy 029-7050-00

Rubber Stabilizer (Front Forks) [R series]

$9.49

$

Usually ships in 4-7 days

0

279.9

Bad Boy 250-0032-01

61" & 72" Rogue Front Suspension Arm Inner RH

$

$

Not available

280.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

280.2

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

280.3

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

$

In Stock, only 2 left!

0

280.4

Bad Boy 018-2009-00

1/2-13 x 1" Stud

$6.49

$

Usually ships in 4-7 days

0

280.5

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

280.6

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

280.7

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

280.8

Bad Boy 029-7050-00

Rubber Stabilizer (Front Forks) [R series]

$9.49

$

Usually ships in 4-7 days

0

280.9

Bad Boy 250-0033-01

61" & 72" Rogue Front Suspension Arm Inner LH

$

$

Not available

279.10

Bad Boy 250-0032-02

61" & 72" Rogue Front Suspension Arm Outer RH

$

$

Not available

280.10

Bad Boy 250-0033-02

61" & 72" Rogue Front Suspension Arm Outer RH

$

$

Not available
