Renegade Gas - Bad Boy Zero-Turn Mower (2023) ENGINE MOUNTING Parts Diagram

Zero-Turn Mower

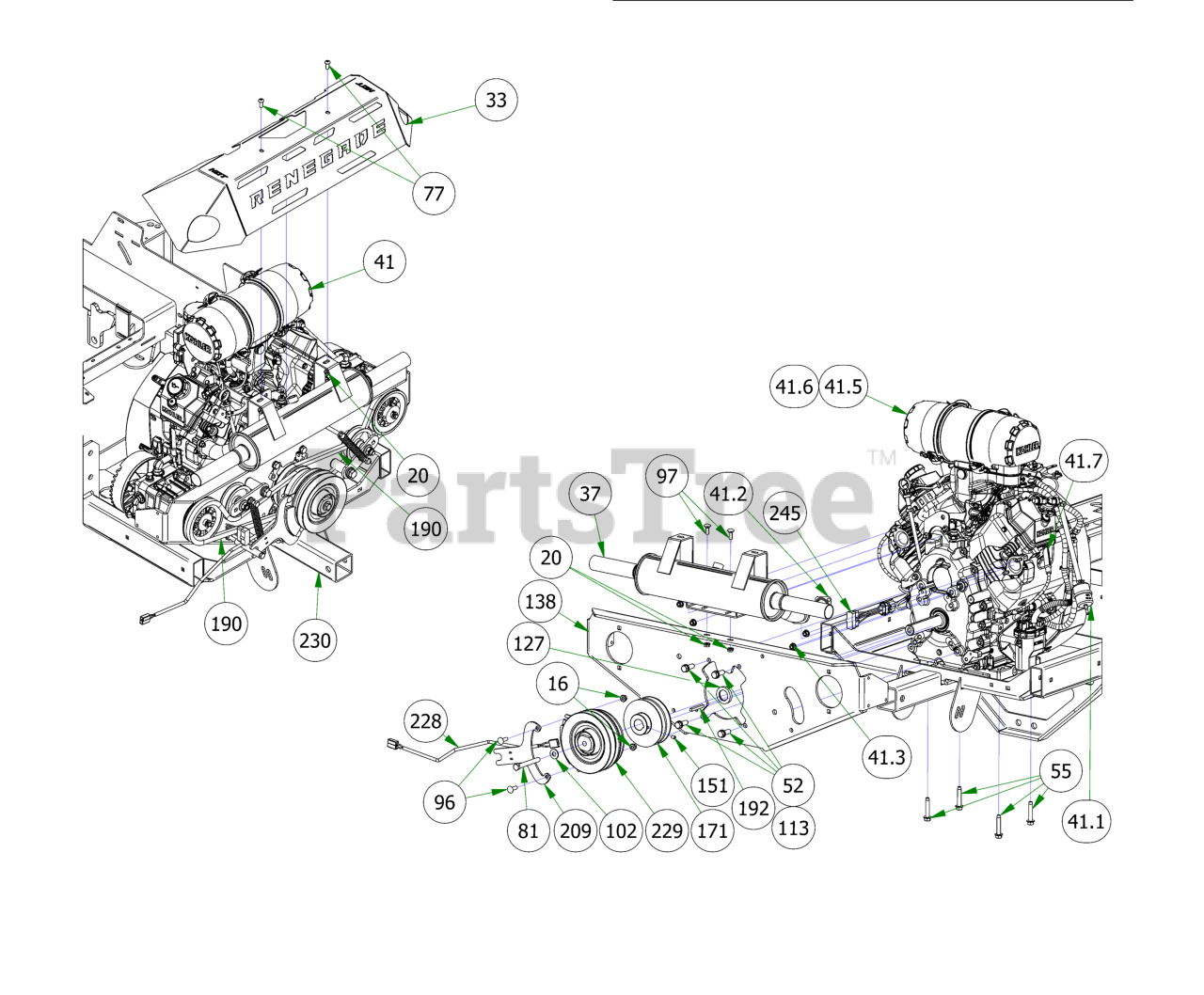

ENGINE MOUNTING Parts Diagram

  • Title

16

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

20

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

33

Bad Boy 014-5066-00

2023 Renegade Gas Muffler Cover

$22.99

$

Usually ships in 4-7 days

0

37

Bad Boy 015-1027-00

KOHLER ECH980 MUFFLER

$176.99

$

Usually ships in 4-7 days

0

41

Bad Boy 015-9990-00

KOHLER ECH980 ENGINE

$5699.99

$

Usually ships in 4-7 days

0

55

Bad Boy 018-0061-00

3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt

$6.49

$

Usually ships in 4-7 days

0

77

Bad Boy 018-5007-00

5/16-18 X 3/4 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$1.49

$

Usually ships in 4-7 days

0

81

Bad Boy 018-5052-21

7/16-20 x 3 1/2" Hex Head GR 8 Bolt W/Patch

$3.99

$

Usually ships in 4-7 days

0

96

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

97

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

102

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

113

Bad Boy 019-8053-00

7/16 SPLIT LOCKWASHER (GR.8) ZINC YELLOW

$0.99

$

Usually ships in 4-7 days

0

127

Bad Boy 025-0076-00

Horizontal Engine Spacer

$10.99

$

Usually ships in 4-7 days

0

138

Bad Boy 026-8010-00

Pump Plate - 2019 Horizontal Gas-Orange

$

$

Not available

151

Bad Boy 030-0075-00

5/16-24 X 3/8 SOCKET SET SCREW (KNURLED CUP PT) PLAIN

$1.99

$

Usually ships in 4-7 days

0

171

Bad Boy 033-8001-00

Outlaw Renegade Double V Pulley

$58.99

$

Usually ships in 4-7 days

0

190

Bad Boy 041-8001-00

2020 Renegade Pump Belt, 42.99"

$85.99

$

In Stock, Qty 9

0

191

Bad Boy 042-5013-00

5MM X 36MM SQ MACHINERY KEY C1018 ROUNDED ENDS

$3.49

$

In Stock, Qty 14

0

192

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

209

Bad Boy 057-5919-00

2019 Outlaw Renegade Clutch Bracket

$30.99

$

Usually ships in 4-7 days

0

228

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

229

Bad Boy 070-5040-00

Clutch for Diesel/Vanguard

$454.99

$

In Stock, only 3 left!

0

230

Bad Boy 070-5373-19

2019 Renegade Gas Frame - Powdercoated

$1210.99

$

Usually ships in 4-7 days

0

245

Bad Boy 086-9009-00

ECH980 Wiring Harness Adapter

$45.99

$

Usually ships in 4-7 days

0

41.1

Bad Boy 063-6000-00

IN-LINE FUEL FILTER

$15.99

$

In Stock, Qty 20+

0

41.2

Bad Boy 015-9990-01

ECV/ECH 980 MUFFLER GASKET

$11.99

$

Usually ships in 4-7 days

0

41.3

Bad Boy 013-8240-00

M8 Nut Connects the 015-1012-00 and the 015-8240-00

$7.99

$

Usually ships in 4-7 days

0

41.4

Bad Boy 015-0077-04

Kohler ECV/ECH980 OIL FILTER

$25.99

$

In Stock, only 3 left!

0

41.5

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 12

0

41.6

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 5

0

41.7

Bad Boy 015-9990-02

Spark Plug - Kohler ECV/ECH 980

$

$

Not available

201.2

Bad Boy 015-9999-00

Hydro Fan - Light/Pup/Outlaw XP

$30.99

$

In Stock, Qty 5

0

202.2

Bad Boy 015-9999-00

Hydro Fan - Light/Pup/Outlaw XP

$30.99

$

In Stock, Qty 5

0
