Renegade Gas - Bad Boy Zero-Turn Mower (2023) 72" DECK Parts Diagram

Zero-Turn Mower

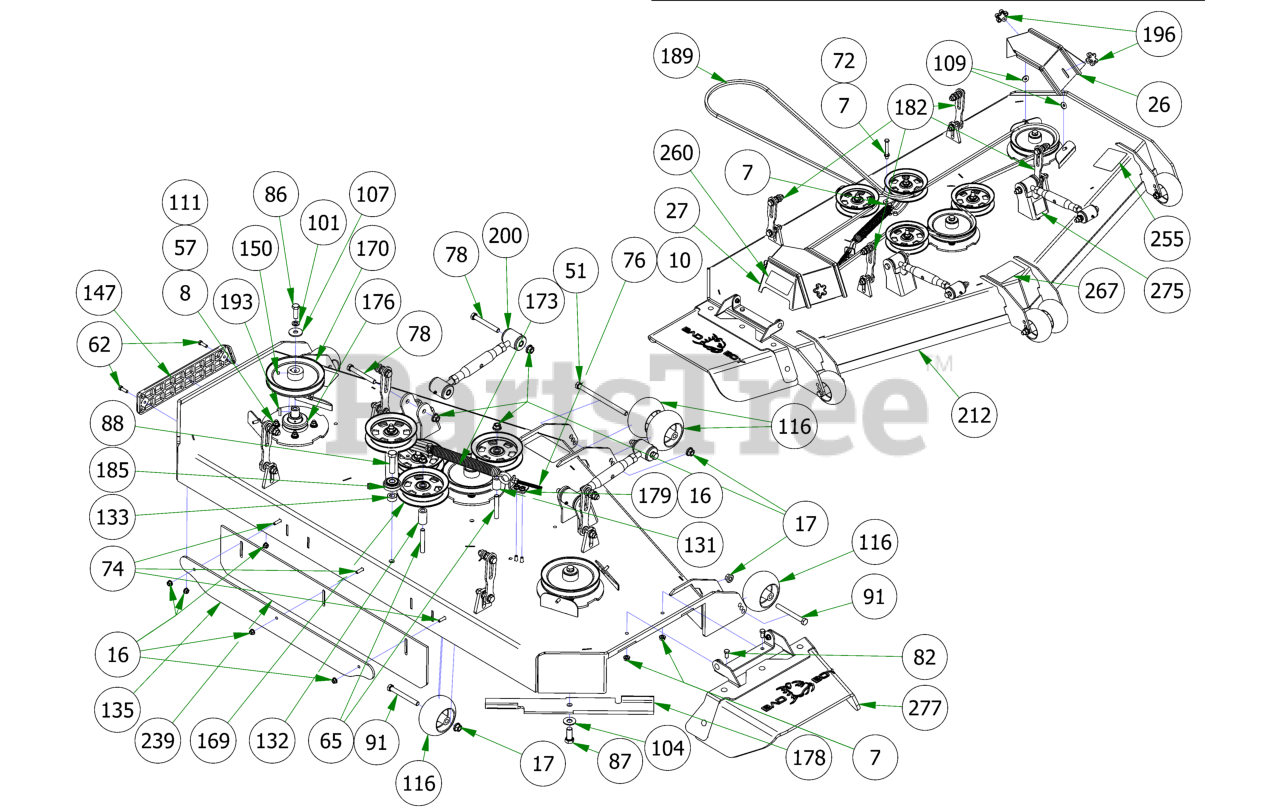

72" DECK Parts Diagram

  • Title

7

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

16

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

26

Bad Boy 014-5054-00

2019 72" Left Outlaw Gen2 Pulley Cover

$19.99

$

Usually ships in 4-7 days

0

27

Bad Boy 014-5055-00

2019 72" Right Outlaw Gen2 Pulley Cover

$19.99

$

Usually ships in 4-7 days

0

51

Bad Boy 018-0046-00

1/2-13 X 8 HEX CAP SCREW GR 5 ZINC

$4.49

$

In Stock, Qty 5

0

57

Bad Boy 018-0075-00

3/8-16 X 1-3/4 HEX C/S (GR.5) ZC

$3.49

$

In Stock, Qty 5

0

62

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

65

Bad Boy 018-2018-00

1/2-13 X 3-1/2 HEX FLANGE BOLT (GR.8) ZINC

$3.99

$

In Stock, Qty 6

0

72

Bad Boy 018-4700-00

3/8-16 X 3 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

74

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

76

Bad Boy 018-4707-00

4" 3/8-16 Eye Bolt

$4.49

$

In Stock, Qty 6

0

78

Bad Boy 018-5019-00

1/2-13 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.99

$

In Stock, Qty 6

0

82

Bad Boy 018-5250-00

3/8-16 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

86

Bad Boy 018-6019-00

1/2-20 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 20+

0

87

Bad Boy 018-6020-00

5/8-18 X 1-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$2.99

$

In Stock, Qty 20+

0

88

Bad Boy 018-6059-00

5/8-11 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 2 left!

0

91

Bad Boy 018-7050-00

1/2-13 X 4-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, Qty 13

0

97

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

101

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

104

Bad Boy 019-5038-00

5/8 USS FLAT WASHER (1-3/4" OD) GR.8 ZINC YELLOW

$1.99

$

In Stock, Qty 20+

0

107

Bad Boy 019-6020-00

1/2 BELLEVILLE WASHER (1-5/8 OD X .140 THK) ZINC

$5.49

$

In Stock, Qty 20+

0

109

Bad Boy 019-6050-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON BLACK

$0.99

$

In Stock, Qty 6

0

111

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

116

Bad Boy 022-1001-00

2019 Deck Wheel

$18.99

$

In Stock, Qty 20+

0

131

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

132

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

133

Bad Boy 025-7020-00

5/8 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

135

Bad Boy 026-0234-00

61 Bolt in Baffle Deck v2 Stripping Plate

$

$

Not available

147

Bad Boy 029-7036-00

REVISED TRIM BUMPER_20180226

$24.99

$

In Stock, only 3 left!

0

150

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

169

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

170

Bad Boy 033-7203-00

7" Deck Pulley

$37.99

$

In Stock, Qty 7

0

173

Bad Boy 034-2030-00

2019 Outlaw Gen2 Deck Spring

$33.99

$

In Stock, Qty 11

0

176

Bad Boy 037-4000-00

OUTLAW SPINDLE ASSEMBLY

$332.99

$

In Stock, Qty 20+

0

178

Bad Boy 038-7230-00

72" High Lift Fusion Blade

$25.99

$

In Stock, Qty 20+

0

179

Bad Boy 039-0144-00

2019 Deck Eye Bolt Tab

$15.99

$

Usually ships in 4-7 days

0

182

Bad Boy 039-2125-17

Deck Hanger Assembly

$16.99

$

In Stock, only 2 left!

0

185

Bad Boy 039-6946-17

2019 Renegade Deck Idler

$83.99

$

Usually ships in 4-7 days

0

189

Bad Boy 041-2375-00

Belt for 72" Renegade

$149.99

$

In Stock, Qty 7

0

193

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

196

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 18

0

200

Bad Boy 048-7000-00

Turnbuckle

$

$

Not available

212

Bad Boy 060-7251-19

2019 Sloped 72" Deck

$1210.99

$

Usually ships in 4-7 days

0

239

Bad Boy 084-5004-00

R Series Rubber For Deck

$60.99

$

Usually ships in 4-7 days

0

255

Bad Boy 091-0918-18

2018 72" Deck Decal

$6.99

$

Usually ships in 4-7 days

0

260

Bad Boy 091-3012-00

Danger Decal-Spindle/Discharge

$3.49

$

In Stock, only 2 left!

0

267

Bad Boy 091-4033-00

2019 Renegade Deck Belt Route Decal

$9.99

$

Usually ships in 4-7 days

0

275

Bad Boy 091-8001-00

Deck Impact Patent Decal 9591803

$0.99

$

Usually ships in 4-7 days

0

277

Bad Boy 210-7000-98

2019 Outlaw Gen2 Chute Assembly

$181.99

$

In Stock, only 2 left!

0
