Renegade Gas - Bad Boy Zero-Turn Mower (2022) PUMP & IDLER ASSEMBLY Parts Diagram

Zero-Turn Mower

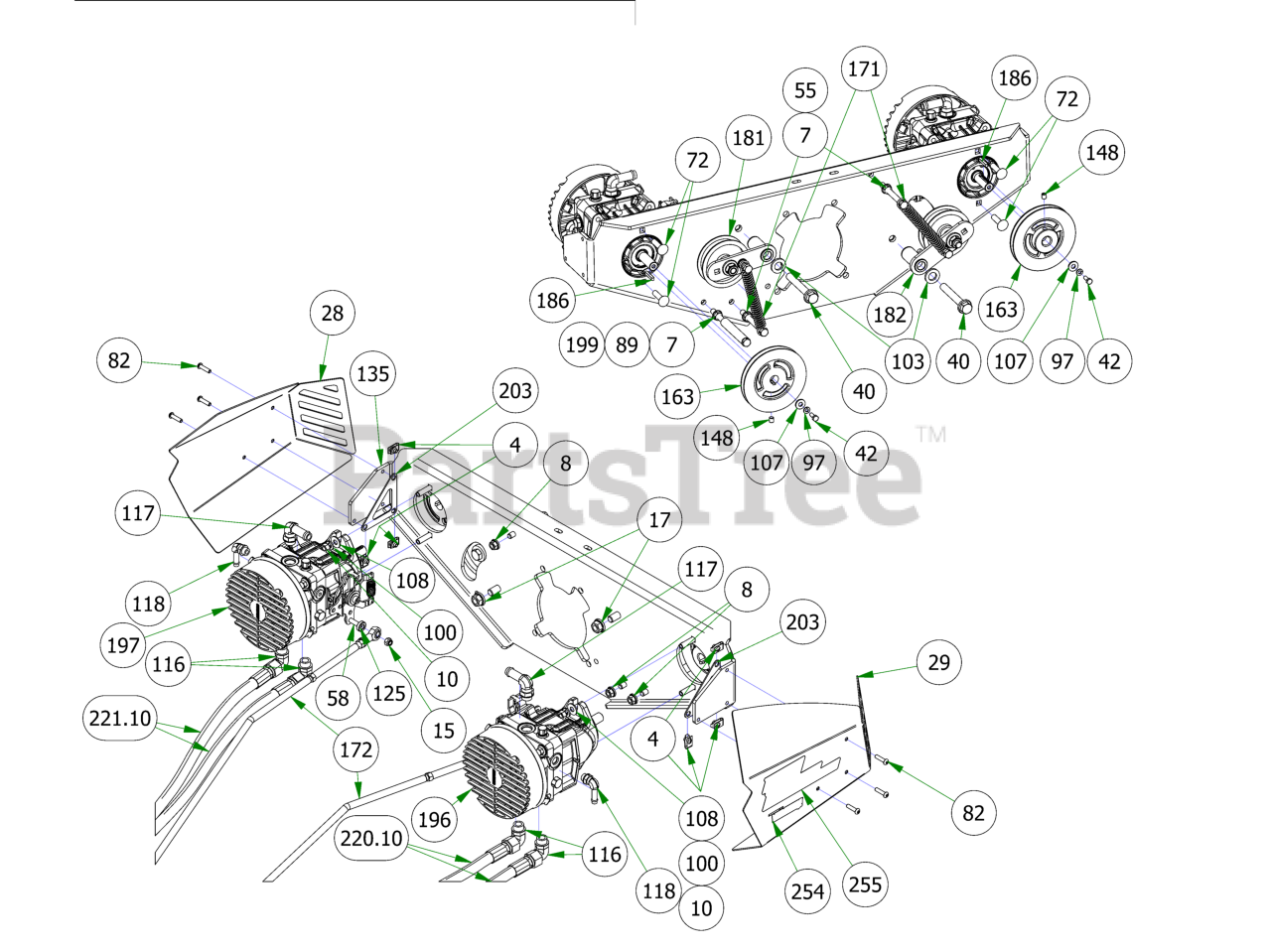

PUMP & IDLER ASSEMBLY Parts Diagram

  • Title

4

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

28

Bad Boy 014-5060-22

2019 Horizontal Pump Cover - Right - Black

$22.99

$

Usually ships in 4-7 days

0

29

Bad Boy 014-5061-22

2019 Horizontal Pump Cover - Left - Black

$34.99

$

Usually ships in 4-7 days

0

40

Bad Boy 018-0010-00

1/2-13 X 90MM HEX FLANGE BOLT W/SHOULDER (GR.8) ZINC

$6.99

$

In Stock, Qty 20+

0

42

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

55

Bad Boy 018-1010-00

3/8-16 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

58

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

72

Bad Boy 018-4706-00

3/8-16 X 1-1/2 CARRIAGE BOLT ZINC

$1.99

$

Usually ships in 4-7 days

0

82

Bad Boy 018-6014-00

1/4-20 x 1" BS C/S 18-8 SS

$6.49

$

Usually ships in 4-7 days

0

89

Bad Boy 018-7060-00

3/8-16 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

97

Bad Boy 019-4008-00

1/4 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 6

0

100

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

103

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

107

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

108

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

116

Bad Boy 024-2052-00

2019 Outlaw 90 Degree Pump Fitting #6801-10-08

$13.99

$

Usually ships in 4-7 days

0

117

Bad Boy 024-5002-00

90 Degree Fitting, 1/2 x 3/4, 4601-8-8

$18.99

$

Usually ships in 4-7 days

0

118

Bad Boy 024-5206-00

90 Degree Fitting, 3/8 s 9/16

$13.99

$

Usually ships in 4-7 days

0

125

Bad Boy 025-2001-00

ACS Spacer 3/4x3/8x1/4

$16.99

$

Usually ships in 4-7 days

0

135

Bad Boy 026-8010-00

Pump Plate - 2019 Horizontal Gas

$

$

Not available

148

Bad Boy 030-0075-00

5/16-24 X 3/8 SOCKET SET SCREW (KNURLED CUP PT) PLAIN

$1.99

$

Usually ships in 4-7 days

0

163

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 13

0

171

Bad Boy 034-9000-00

ZT and ACS Handle Spring

$16.99

$

In Stock, Qty 5

0

172

Bad Boy 035-0005-00

2019 Renegade Push Rod Assembly

$49.99

$

In Stock, only 4 left!

0

181

Bad Boy 039-6950-98

2019 Renegade Belt Tensioner LH

$90.99

$

Usually ships in 4-7 days

0

182

Bad Boy 039-6950-99

2019 Renegade Pump Belt Tensioner RH

$90.99

$

Usually ships in 4-7 days

0

186

Bad Boy 042-5012-00

5MM X 32MM SQ MACHINERY KEY 1018 STL (BOTH ENDS ROUND) PLAIN

$

$

Not available

196

Bad Boy 050-3001-00

2019 Rogue/Renegade Left Pump 16cc

$797.99

$

Usually ships in 4-7 days

0

197

Bad Boy 050-3003-00

2019 Outlaw Renegade Right Pump 16cc

$740.99

$

Usually ships in 4-7 days

0

199

Bad Boy 051-8076-00

3/8 hose 4" long

$6.99

$

Usually ships in 4-7 days

0

203

Bad Boy 057-5915-00

Pump Plate Clip Nut Holder

$18.99

$

Usually ships in 4-7 days

0

254

Bad Boy 091-4002-22

2022 Powered By Vanguard Decal

$6.49

$

Usually ships in 4-7 days

0

255

Bad Boy 091-4013-00

993cc-EFI Backplate Cluster

$15.99

$

Usually ships in 4-7 days

0

220.10

Bad Boy 051-6007-00

2019 Renegade Hydro Hose

$58.99

$

In Stock, only 2 left!

0

221.10

Bad Boy 051-6007-00

2019 Renegade Hydro Hose

$58.99

$

In Stock, only 2 left!

0
