Renegade Gas - Bad Boy Zero-Turn Mower (2022) FLOORBOARD & ROPS Parts Diagram

Zero-Turn Mower

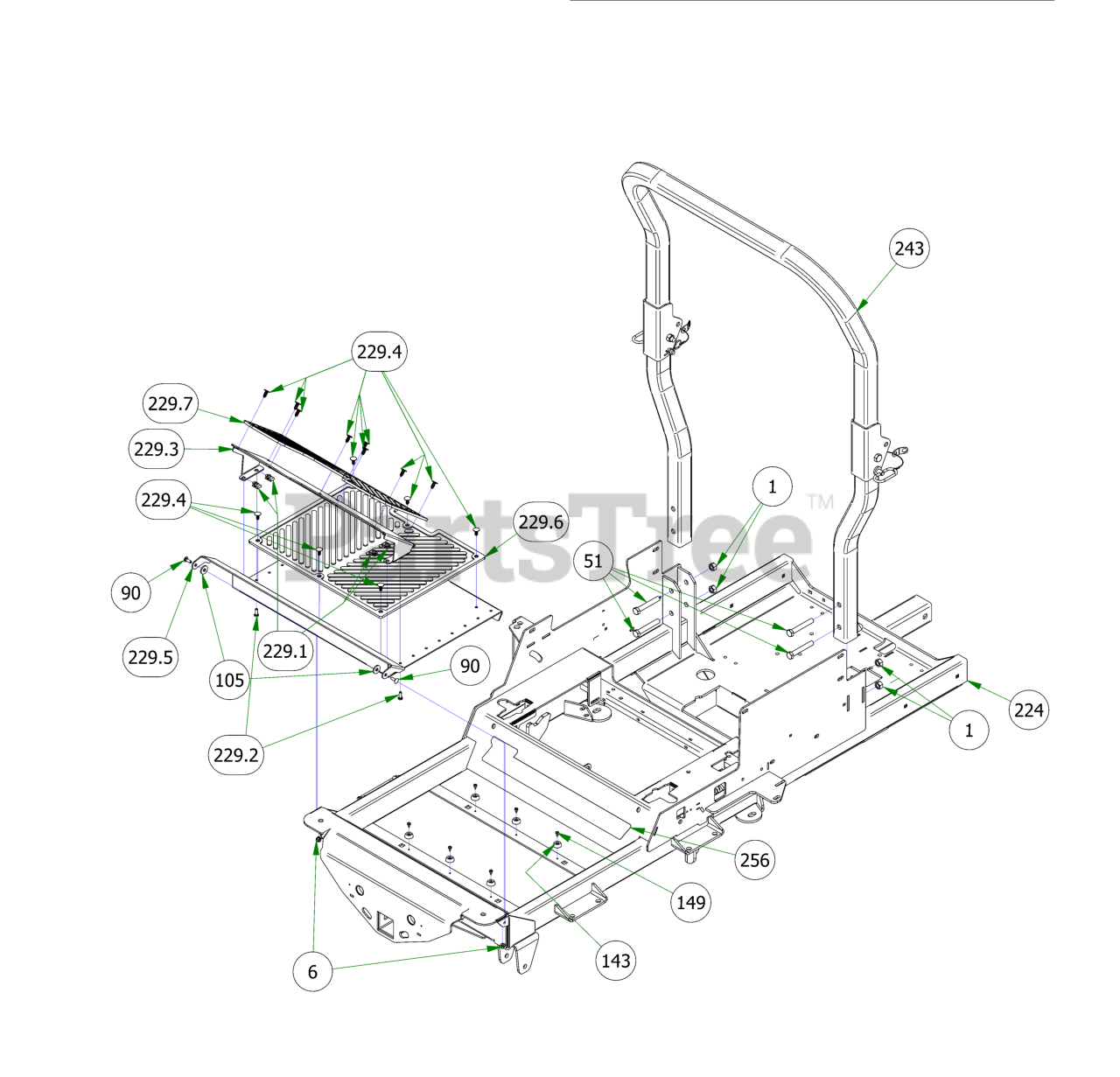

FLOORBOARD & ROPS Parts Diagram

  • Title

1

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

$3.49

$

Usually ships in 4-7 days

0

6

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

51

Bad Boy 018-0050-00

1/2-13 X 3-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

90

Bad Boy 018-8040-00

1/4-20 X 3/4 CARRIAGE BOLT ZINC

$1.99

$

Usually ships in 4-7 days

0

105

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

143

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

149

Bad Boy 030-3050-00

10-16 X 1/2 PAN PHIL TEK/3 CLIMASEAL OR ACF-SILVER COATED

$0.99

$

In Stock, Qty 9

0

224

Bad Boy 070-5373-19

2019 Renegade Gas Frame - Powdercoated

$1210.99

$

Usually ships in 4-7 days

0

229

Bad Boy 079-3155-20

R-Series Floorboard Assembly

$

$

Currently unavailable

243

Bad Boy 089-0006-00

2019 2X2 Folding ROPS

$497.99

$

Usually ships in 4-7 days

0

256

Bad Boy 091-4015-00

2019 Renegade Cooler Cover Decal

$13.99

$

Usually ships in 4-7 days

0

267

Bad Boy 091-8002-00

Independetly Articulating Front Suspension Arms Patent Decal

$5.99

$

Usually ships in 4-7 days

0

229.1

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

229.2

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

229.3

Bad Boy 026-2230-00

OUTLAW ADJUSTABLE FOOT PLATE-ORANGE

$75.99

$

Usually ships in 4-7 days

0

229.4

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

229.5

Bad Boy 079-3155-00

2019 Outlaw Floorboard

$125.99

$

Usually ships in 4-7 days

0

229.6

Bad Boy 081-0050-00

MAT (FLOOR)

$83.99

$

Usually ships in 4-7 days

0

229.7

Bad Boy 081-0051-00

MAT (FOOT PLATE)

$83.99

$

Usually ships in 4-7 days

0
