Renegade Gas - Bad Boy Zero-Turn Mower (2020) STEERING Parts Diagram

Zero-Turn Mower

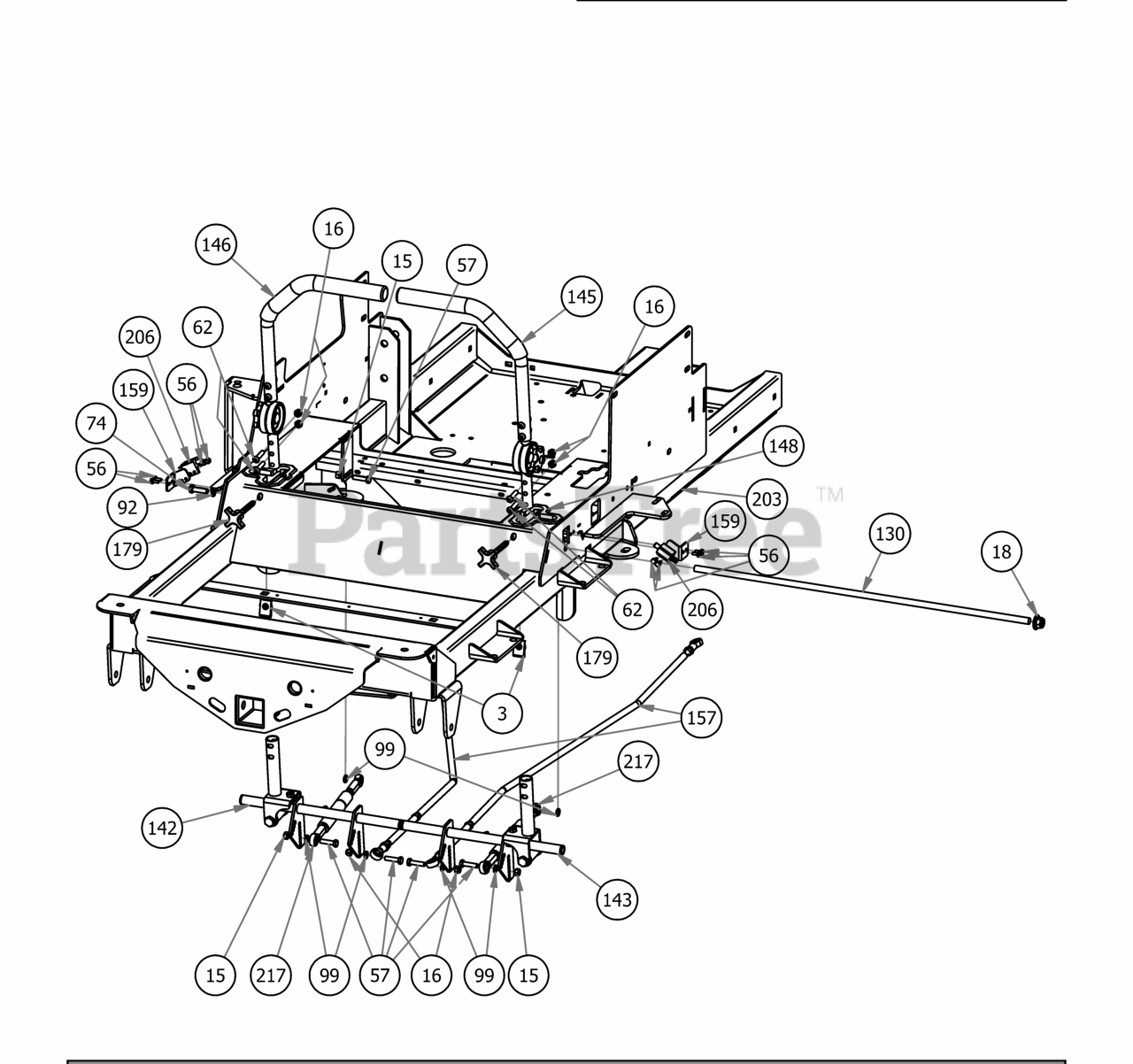

STEERING Parts Diagram

  • Title

3

Bad Boy 013-0021-00

Extruded Nut 3/8"-16 3/4" Hole Center With Patch

$4.99

$

In Stock, Qty 6

0

15

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

16

Bad Boy 013-8047-00

5/16-18 NYLON INSERT LOCKNUT ZINC ORANGE NYLON

$0.99

$

In Stock, only 4 left!

0

18

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

56

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

0

57

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

62

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

74

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

92

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

99

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

130

Bad Boy 028-0051-00

2019 Steering Actuator Rod

$24.99

$

Usually ships in 4-7 days

0

142

Bad Boy 031-0030-19

2019 R Series RH Arm Rod Assembly

$90.99

$

Usually ships in 4-7 days

0

143

Bad Boy 031-0031-19

2019 R Series LH Arm Rod Assembly

$90.99

$

In Stock, only 2 left!

0

145

Bad Boy 031-9005-70

2019 Left Hand ADJ. Steering Arm Kit

$151.99

$

Usually ships in 4-7 days

0

146

Bad Boy 031-9055-70

2019 Right Hand ADJ. Steering Arm Kit

$131.99

$

Usually ships in 4-7 days

0

148

Bad Boy 032-0002-00

Snap-In Bushing-2019

$16.99

$

In Stock, only 2 left!

0

157

Bad Boy 035-0005-00

2019 Outlaw Gen2 Horizontal Push Rod Assembly

$49.99

$

In Stock, only 4 left!

0

159

Bad Boy 039-2160-00

2019 Arm Switch Bracket

$14.99

$

Usually ships in 4-7 days

0

179

Bad Boy 057-5800-00

Speed Limiting Knob 3/8-16X 3"

$6.99

$

Usually ships in 4-7 days

0

203

Bad Boy 070-5373-19

2019 Horizontal Gas Frame

$1210.99

$

Usually ships in 4-7 days

0

206

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

217

Bad Boy 087-0002-00

2019 SROID Damper With Spherical Rod Ends

$66.99

$

Usually ships in 4-7 days

0
