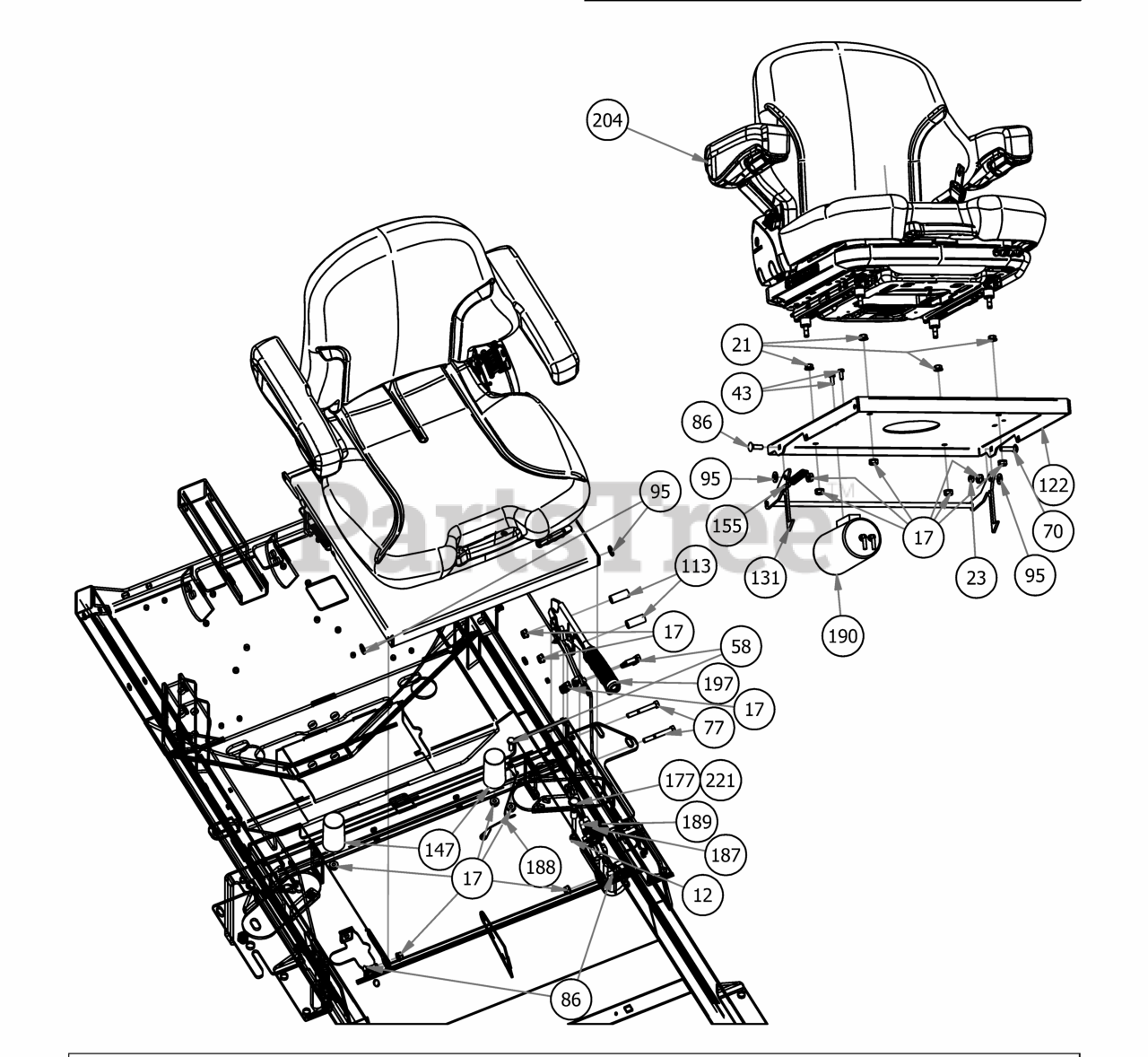

Renegade Gas - Bad Boy Zero-Turn Mower (2020) SEAT & BRAKE Parts Diagram

Zero-Turn Mower

SEAT & BRAKE Parts Diagram

  • Title

12

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

21

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

23

Bad Boy 013-9005-00

5/16-18 Nylock Jam Nut 1/2 Nut

$3.49

$

Usually ships in 4-7 days

0

43

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 8

0

58

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

70

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

77

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

86

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

95

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

113

Bad Boy 025-0027-00

2019 Outlaw Brake Handle Spacer .625 x 1.5

$7.99

$

Usually ships in 4-7 days

0

122

Bad Boy 026-2019-00

2019 Outlaw Seat Plate

$105.99

$

Usually ships in 4-7 days

0

131

Bad Boy 028-0090-00

Seat Latch Rod Assembly

$41.99

$

Usually ships in 4-7 days

0

147

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

$24.99

$

Usually ships in 4-7 days

0

155

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

177

Bad Boy 054-8019-00

Choke for 36Hp Vanguard & FX1000 Kawasaki

$28.99

$

In Stock, Qty 20+

0

187

Bad Boy 064-8054-00

2019 Short Brake Cable-Suspension Models

$54.99

$

Usually ships in 4-7 days

0

188

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 2 left!

0

189

Bad Boy 064-9002-00

2019 Long Brake Cable-Renegade, Rogue

$54.99

$

Usually ships in 4-7 days

0

190

Bad Boy 067-0020-19

2019 Outlaw EPA Cannister Assembly

$50.99

$

Usually ships in 4-7 days

0

197

Bad Boy 069-0001-00

2019 Brake Handle Assembly

$151.99

$

In Stock, only 2 left!

0

203

Bad Boy 070-5373-19

2019 Horizontal Gas Frame

$1210.99

$

Usually ships in 4-7 days

0

204

Bad Boy 071-5065-00

2019 Renegade Seat

$1025.99

$

Usually ships in 4-7 days

0

221

Bad Boy 089-2000-00

Code Indicator Light

$22.99

$

Usually ships in 4-7 days

0
