Renegade Gas - Bad Boy Zero-Turn Mower (2020) PUMP & IDLER ASSEMBLY Parts Diagram

Zero-Turn Mower

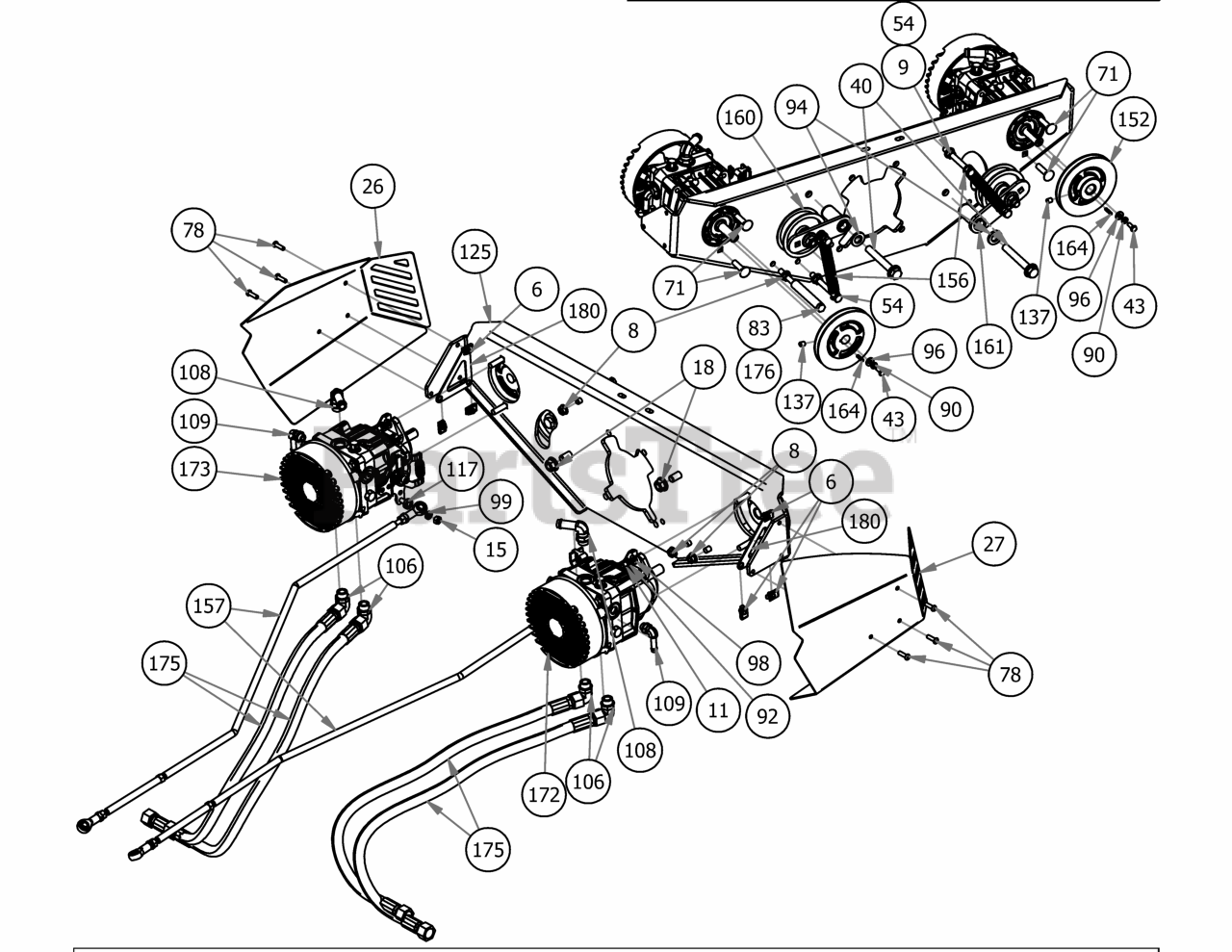

PUMP & IDLER ASSEMBLY Parts Diagram

  • Title

6

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

9

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

18

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

26

Bad Boy 014-5060-00

2019 Horizontal Pump Cover - Right

$22.99

$

Usually ships in 4-7 days

0

27

Bad Boy 014-5061-00

2019 Horizontal Pump Cover - Left

$34.99

$

Usually ships in 0 days

0

40

Bad Boy 018-0010-00

1/2-13 X 90MM HEX FLANGE BOLT W/SHOULDER (GR.8) ZINC

$6.99

$

In Stock, Qty 20+

0

43

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 8

0

54

Bad Boy 018-1010-00

3/8-16 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

57

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

71

Bad Boy 018-4706-00

3/8 x 1 1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

78

Bad Boy 018-6014-00

Hexagon Socket Button Head Cap Screw

$6.49

$

Usually ships in 4-7 days

0

83

Bad Boy 018-7060-00

3/8-16 x 5 1/2 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

90

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, Qty 6

0

92

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

94

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

96

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

98

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

99

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

106

Bad Boy 024-2052-00

2019 Outlaw 90 Degree Pump Fitting #6801-10-08

$13.99

$

Usually ships in 4-7 days

0

108

Bad Boy 024-5002-00

90 Degree Fitting, 1/2 x 3/4, 4601-8-8

$18.99

$

Usually ships in 4-7 days

0

109

Bad Boy 024-5206-00

90 Degree Fitting, 3/8 s 9/16

$13.99

$

Usually ships in 4-7 days

0

117

Bad Boy 025-2001-00

ACS Spacer 3/4x3/8x1/4

$16.99

$

Usually ships in 4-7 days

0

125

Bad Boy 026-8010-00

Pump Plate - 2019 Horizontal Gas

$

$

Not available

137

Bad Boy 030-0075-00

5/16-24 X 3/8 Set Screw

$1.99

$

Usually ships in 4-7 days

0

152

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 13

0

156

Bad Boy 034-9000-00

ZT and ACS Handle Spring

$16.99

$

In Stock, Qty 5

0

157

Bad Boy 035-0005-00

2019 Outlaw Gen2 Horizontal Push Rod Assembly

$49.99

$

In Stock, only 4 left!

0

160

Bad Boy 039-6950-98

2019 Renegade Belt Tensioner LH

$90.99

$

Usually ships in 4-7 days

0

161

Bad Boy 039-6950-99

2019 Renegade Belt Tensioner LH

$90.99

$

Usually ships in 4-7 days

0

164

Bad Boy 042-5012-00

5mm x 1.25" Key

$

$

Not available

172

Bad Boy 050-3001-00

2019 Rogue/Renegade Left Pump 16cc

$797.99

$

Usually ships in 4-7 days

0

173

Bad Boy 050-3003-00

2019 Outlaw Renegade Right Pump 16cc

$740.99

$

Usually ships in 4-7 days

0

175

Bad Boy 051-6007-00

2019 Renegade Hydro Hose

$58.99

$

In Stock, only 2 left!

0

176

Bad Boy 051-8076-00

3/8 hose 4" long

$6.99

$

Usually ships in 4-7 days

0

180

Bad Boy 057-5915-00

Pump Plate Clip Nut Holder

$18.99

$

Usually ships in 4-7 days

0
