Renegade Gas - Bad Boy Zero-Turn Mower (2020) ENGINE MOUNTING Parts Diagram

Zero-Turn Mower

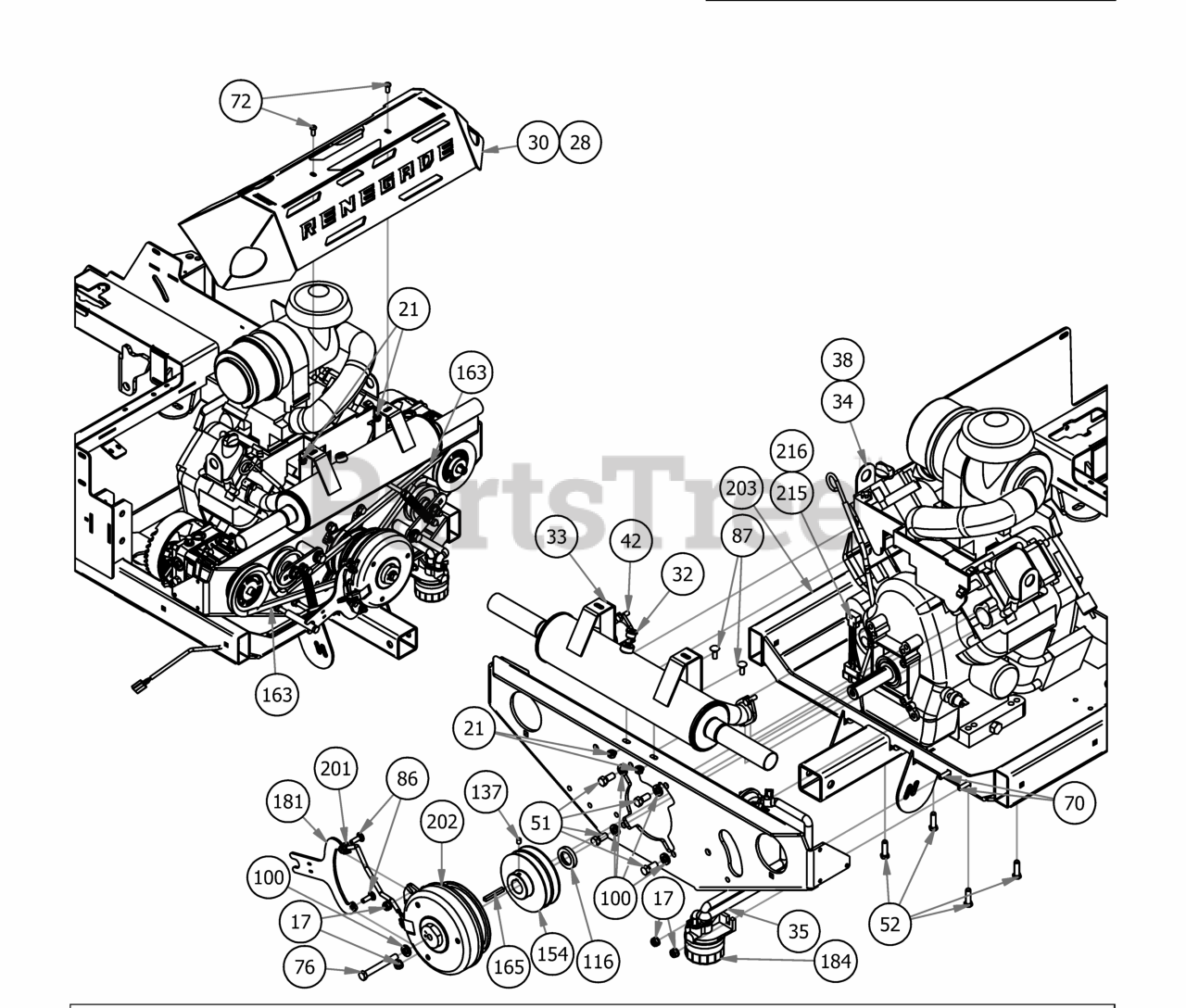

ENGINE MOUNTING Parts Diagram

  • Title

17

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

21

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

28

Bad Boy 014-5062-00

Muffler Cover - 2019 Horizontal Gas 37 Vanguard

$30.99

$

Usually ships in 4-7 days

0

30

Bad Boy 014-5064-00

Muffler Cover - 2019 Horizontal Gas 35 Vanguard

$30.99

$

Usually ships in 4-7 days

0

32

Bad Boy 015-0050-01

O2 Sensor Plug

$10.99

$

Usually ships in 0 days

0

33

Bad Boy 015-1018-00

2019 Renegade Vanguard 999cc EFI Exhaust

$266.99

$

Usually ships in 4-7 days

0

34

Bad Boy 015-3002-00

Vanguard EFI 37HP 993cc Horizontal Shaft

$3989.99

$

Usually ships in 4-7 days

0

35

Bad Boy 015-3002-01

Remote Oil Filter Kit For Vanguard Horizontal

$296.99

$

Usually ships in 4-7 days

0

38

Bad Boy 015-5405-00

35hp Briggs Vanguard

$

$

Currently unavailable

42

Bad Boy 018-0017-00

Torx Bolt-Exhaust

$6.49

$

Usually ships in 4-7 days

0

51

Bad Boy 018-0053-00

Hex Bolt - UNC (Regular Thread - Inch)

$2.49

$

Usually ships in 4-7 days

0

52

Bad Boy 018-0061-00

3/8-16 x 2 Hex/ Trilobe Horizontal Engine Bolt

$6.49

$

Usually ships in 4-7 days

0

70

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

72

Bad Boy 018-5007-00

5/16" x 3/4" Button Head Bolt

$1.49

$

Usually ships in 4-7 days

0

76

Bad Boy 018-5052-00

7/16-20 x 3 1/2" Hex Head GR 8 Bolt

$4.99

$

Usually ships in 4-7 days

0

86

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

87

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, Qty 6

0

100

Bad Boy 019-8053-00

7/16" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

116

Bad Boy 025-0076-00

Horizontal Engine Spacer

$10.99

$

Usually ships in 4-7 days

0

137

Bad Boy 030-0075-00

5/16-24 X 3/8 Set Screw

$1.99

$

Usually ships in 4-7 days

0

154

Bad Boy 033-8001-00

Outlaw Renegade Double V Pulley

$58.99

$

Usually ships in 4-7 days

0

163

Bad Boy 041-8000-00

2019 Renegade Pump Belt

$85.99

$

In Stock, Qty 9

0

165

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 2 left!

0

181

Bad Boy 057-5919-00

2019 Outlaw Renegade Clutch Bracket

$30.99

$

Usually ships in 4-7 days

0

184

Bad Boy 063-8018-00

Briggs Oil Filter

$22.99

$

In Stock, Qty 19

0

201

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

202

Bad Boy 070-5040-00

Clutch for Diesel/Vanguard

$454.99

$

In Stock, only 3 left!

0

203

Bad Boy 070-5373-19

2019 Horizontal Gas Frame

$1210.99

$

Usually ships in 4-7 days

0

215

Bad Boy 086-9001-19

2019 Harness Adaptor - 36 Vanguard Carberated

$56.99

$

Usually ships in 4-7 days

0

216

Bad Boy 086-9013-00

2019 Harness Adaptor - Vanguard 37 EFI Vert/Horiz

$30.99

$

Usually ships in 4-7 days

0
