Renegade Gas - Bad Boy Zero-Turn Mower (2020) DECK SUB-ASSEMBLIES Parts Diagram

Zero-Turn Mower

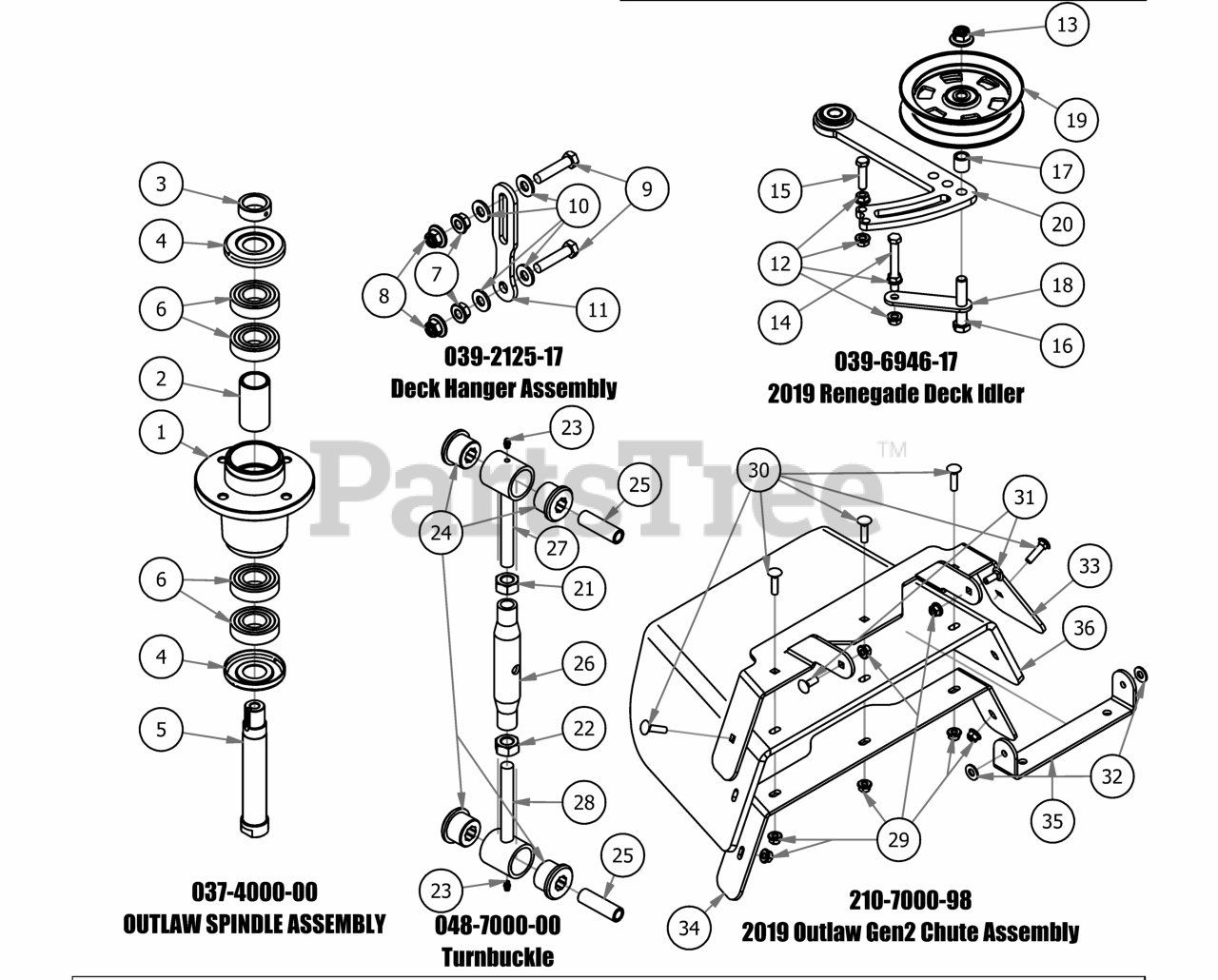

DECK SUB-ASSEMBLIES Parts Diagram

  • Title

1

Bad Boy 037-4000-01

4000 Series Spindle Housing

$136.99

$

Usually ships in 0 days

0

2

Bad Boy 037-4002-00

4000 Series Spindle Spacer

$7.99

$

Usually ships in 4-7 days

0

3

Bad Boy 037-9050-00

Locking Collar w/ 1/4"-20 Set Screw

$7.99

$

In Stock, Qty 6

0

4

Bad Boy 037-8002-00

Spindle Dust Cap

$12.99

$

In Stock, Qty 8

0

5

Bad Boy 037-6026-00

Spindle Shaft

$89.99

$

In Stock, Qty 12

0

6

Bad Boy 037-6023-00

Bearing - 6206

$

$

Not available

7

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

8

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-6037-00

1/2-13X 2-1/4 GR Hex Bolts

$1.99

$

Usually ships in 4-7 days

0

10

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

11

Bad Boy 039-2125-00

Deck_Hanging_Tab

$

$

Not available

12

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

13

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 018-4700-00

3/8-16x3 grade 5 hex bolt

$1.49

$

Usually ships in 4-7 days

0

15

Bad Boy 018-6012-00

3/8 x 1.5" Bolt

$0.99

$

In Stock, Qty 20+

0

16

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 4 left!

0

17

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 17

0

18

Bad Boy 026-0167-00

Belt Tensioner Retainer Plate

$28.99

$

Usually ships in 4-7 days

0

19

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

20

Bad Boy 039-6946-00

2019 Deck Tensioner

$37.99

$

Usually ships in 4-7 days

0

21

Bad Boy 013-0007-00

Hex Nut, 11/16-12

$3.49

$

In Stock, only 2 left!

0

22

Bad Boy 013-0008-00

Hex Nut, 11/16-12 Left Handed

$3.49

$

In Stock, only 2 left!

0

23

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

24

Bad Boy 032-2000-00

Polyeurethane Bushing

$4.99

$

In Stock, Qty 11

0

25

Bad Boy 032-2001-00

Sleeve

$4.99

$

In Stock, only 4 left!

0

26

Bad Boy 048-7020-00

2015 Outlaw Toplink Body

$30.99

$

Usually ships in 4-7 days

0

27

Bad Boy 048-7021-00

Right-Handed End

$33.99

$

In Stock, Qty 5

0

28

Bad Boy 048-7022-00

2015 Outlaw Toplink LH End

$33.99

$

In Stock, Qty 5

0

29

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

30

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

31

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, Qty 6

0

32

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

33

Bad Boy 039-4893-00

2019 Upper Chute Bracket

$49.99

$

Usually ships in 4-7 days

0

34

Bad Boy 039-4894-00

2019 Lower Chute Bracket

$46.99

$

Usually ships in 4-7 days

0

35

Bad Boy 206-6018-00

2019 Chute Hanger

$10.99

$

Usually ships in 4-7 days

0

36

Bad Boy 210-6025-00

2019 Belted Chute with Logo

$66.99

$

In Stock, only 2 left!

0
