Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Tanks Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

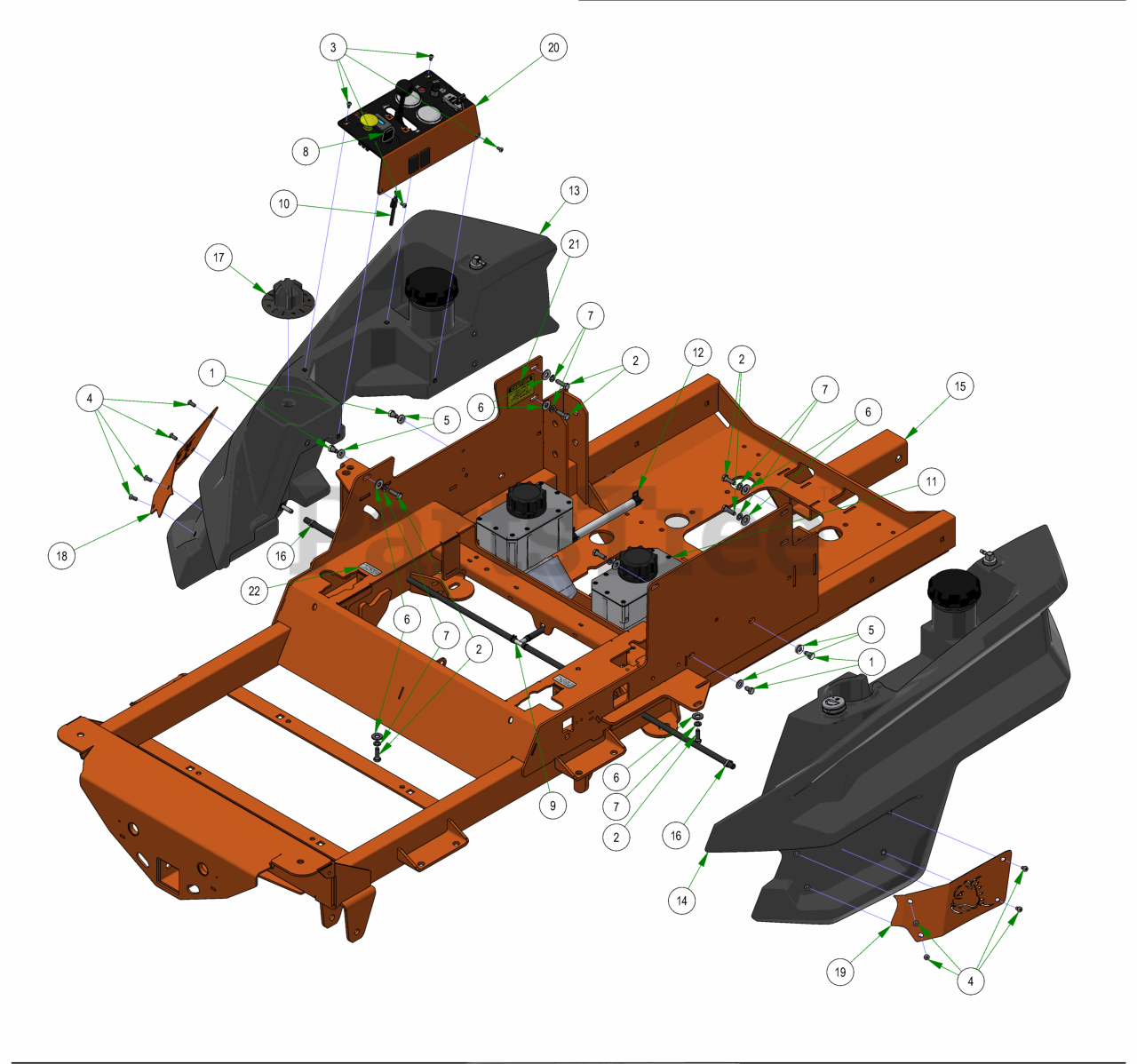

Tanks Parts Diagram

  • Title

1

Bad Boy 018-0057-00

5/16-18 X 1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

2

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 9

0

4

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, only 4 left!

0

5

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

6

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

7

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

8

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

9

Bad Boy 051-7080-22

2022 Renegade Diesel Fuel Line Assembly

$

$

Currently unavailable

10

Bad Boy 055-8018-75

Diesel Throttle Cable

$34.99

$

In Stock, only 2 left!

0

11

Bad Boy 067-8053-18

LH Rogue Hydro Tank Assy

$230.99

$

Usually ships in 4-7 days

0

12

Bad Boy 067-8054-18

RH Rogue Hydro Tank Assy

$230.99

$

Usually ships in 4-7 days

0

13

Bad Boy 067-9990-50

2019 Right Renagade Fuel Tank (diesel)

$284.99

$

Usually ships in 4-7 days

0

14

Bad Boy 067-9995-50

2019 Left Renegade Fuel Tank (Diesel)

$287.99

$

Usually ships in 4-7 days

0

15

Bad Boy 070-5376-22

2022 Horizontal Diesel Frame

$

$

Not available

16

Bad Boy 072-8076-00

2 EAR CLAMP 12.5mm-15mm

$2.49

$

Usually ships in 4-7 days

0

17

Bad Boy 077-9001-00

2019 Deck Height Dial

$22.99

$

Usually ships in 4-7 days

0

18

Bad Boy 079-3290-00

2019 Outlaw Fuel Tank Insert - Right

$9.49

$

Usually ships in 4-7 days

0

19

Bad Boy 079-3291-00

2019 Outlaw Fuel Tank Insert - Left

$9.49

$

Usually ships in 4-7 days

0

20

Bad Boy 079-3480-22

Renegade Control Panel Assembly

$

$

Currently unavailable

21

Bad Boy 091-1020-00

Hydraulic Decal

$1.49

$

Usually ships in 4-7 days

0

22

Bad Boy 091-2050-00

Low Sulfer Decal Tier 4 Diesel

$6.99

$

Usually ships in 4-7 days

0
