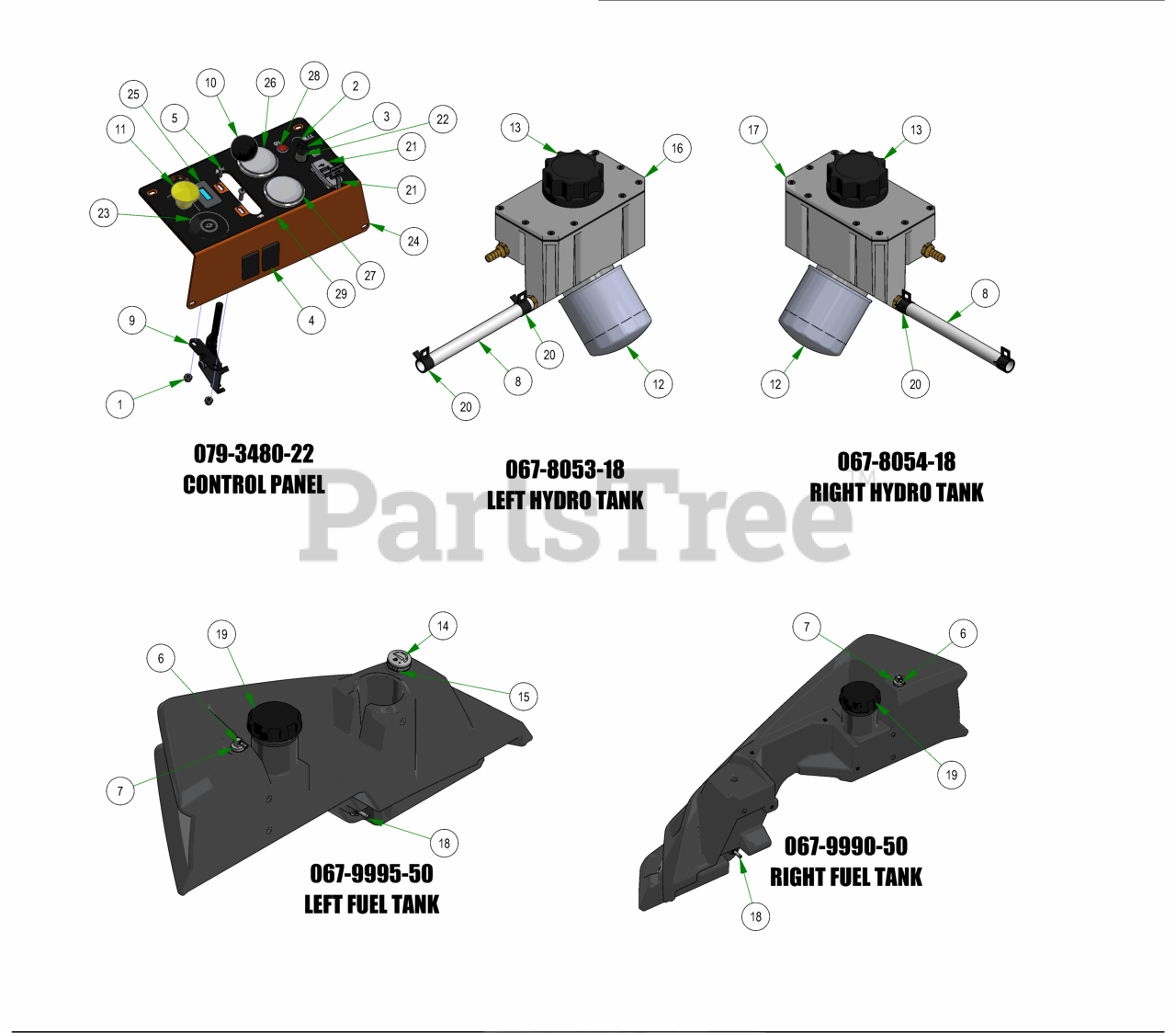

Tank Subassemblies Parts Diagram

  • Title

1

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

2

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

3

Bad Boy 014-6000-00

Start Switch Boot - Diesel

$6.99

$

Usually ships in 4-7 days

0

4

Bad Boy 018-1040-00

Light Plug

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

6

Bad Boy 024-9903-00

90 Degree Elbow Fitting

$9.49

$

Usually ships in 4-7 days

0

7

Bad Boy 032-9902-00

Nitrile Bushing

$4.99

$

Usually ships in 4-7 days

0

8

Bad Boy 051-8064-21

1/2 Clear Braded Hose 21"

$12.99

$

Usually ships in 4-7 days

0

9

Bad Boy 055-2012-00

Universal Throttle Head - 2012

$27.99

$

In Stock, only 3 left!

0

10

Bad Boy 055-2013-00

Throttle Knob

$13.99

$

In Stock, only 3 left!

0

11

Bad Boy 056-8058-00

PTO Switch

$36.99

$

In Stock, Qty 20+

0

12

Bad Boy 063-8014-00

Hydraulic Filter

$33.99

$

In Stock, Qty 20+

0

13

Bad Boy 066-8050-22

Hydraulic Tank Cap W/Dipstick

$31.99

$

Usually ships in 4-7 days

0

14

Bad Boy 067-4080-00

Fuel Gauge

$34.99

$

In Stock, Qty 9

0

15

Bad Boy 067-6056-00

Fuel Gauge Grommet

$7.49

$

In Stock, only 3 left!

0

16

Bad Boy 067-8053-00

2019 Left Outlaw Gen2 Hydro Tank Suspension Only

$172.99

$

Usually ships in 4-7 days

0

17

Bad Boy 067-8054-00

2019 Right Outlaw Gen2 Hydro Tank Suspension Only

$170.99

$

Usually ships in 4-7 days

0

18

Bad Boy 067-9901-00

Fuel Pick-up

$24.99

$

Usually ships in 4-7 days

0

19

Bad Boy 067-9905-00

Diesel Fuel Cap

$34.99

$

Usually ships in 4-7 days

0

20

Bad Boy 072-8066-00

1/2 Hose Clamp

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 077-2076-00

USB Port

$49.99

$

In Stock, only 4 left!

0

22

Bad Boy 077-6000-00

Momentary Start Switch

$22.99

$

Usually ships in 4-7 days

0

23

Bad Boy 077-8076-00

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

24

Bad Boy 079-3480-00

2019 Diesel Control Panel

$11.99

$

Usually ships in 4-7 days

0

25

Bad Boy 083-4013-00

Tachometer

$79.99

$

In Stock, Qty 20+

0

26

Bad Boy 086-7000-00

2" Oil Pressure Gauge

$114.99

$

Usually ships in 4-7 days

0

27

Bad Boy 086-7001-00

2" Water Temperature Gauge

$114.99

$

Usually ships in 4-7 days

0

28

Bad Boy 089-1000-00

Oil Light

$13.99

$

Usually ships in 4-7 days

0

29

Bad Boy 091-4016-22

2022 Renegade (Diesel) Control Panel Decal

$11.99

$

Usually ships in 4-7 days

0
