Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Seat Subassemblies Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

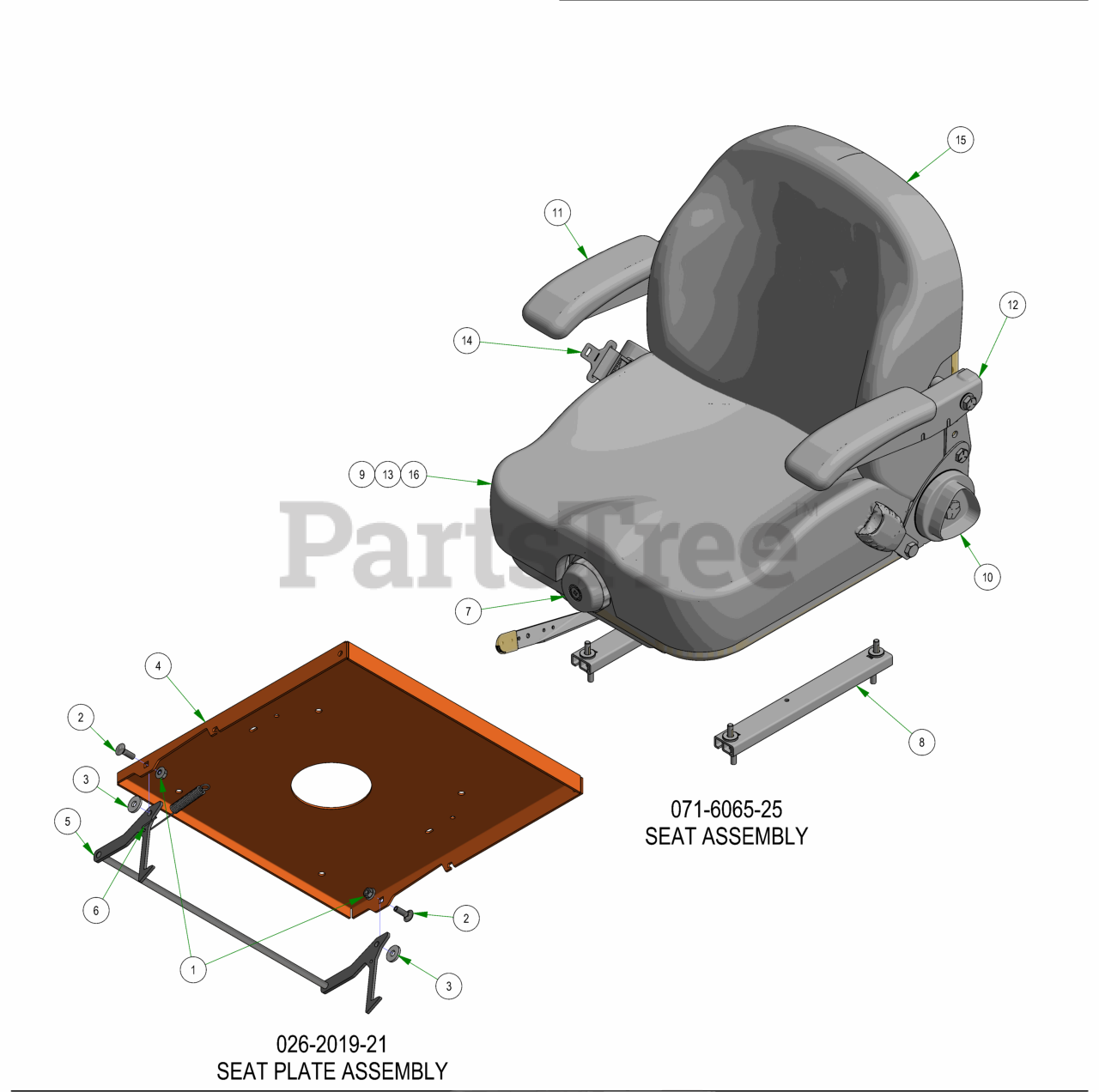

Seat Subassemblies Parts Diagram

  • Title

1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

2

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

3

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

4

Bad Boy 026-2019-00

R-SERIES SEAT PLATE

$105.99

$

Usually ships in 4-7 days

0

5

Bad Boy 028-0090-00

Seat Latch Rod Assembly

$41.99

$

Usually ships in 4-7 days

0

6

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

7

Bad Boy 071-6065-05

Weight Adjust Indicator Knob Assy

$34.99

$

Usually ships in 4-7 days

0

8

Bad Boy 071-6065-06

4" Single Locking Track Kit

$105.99

$

Usually ships in 4-7 days

0

9

Bad Boy 071-6065-07

Delta Plunger Switch - N.O.

$22.99

$

Usually ships in 4-7 days

0

10

Bad Boy 071-6065-10

Recliner Adjustment Knob-New

$34.99

$

Usually ships in 4-7 days

0

11

Bad Boy 071-6065-11

RH Armrest-Selfskin Front Adj

$136.99

$

Usually ships in 4-7 days

0

12

Bad Boy 071-6065-12

LH Armrest-Selfskin Front Adj

$136.99

$

Usually ships in 4-7 days

0

13

Bad Boy 071-6065-13

Bellows w/Hardware

$68.99

$

Usually ships in 4-7 days

0

14

Bad Boy 071-6065-14

2" Retractable Belt Kit w/Spacers

$

$

Not available

15

Bad Boy 071-6065-17

Back Cover, 2025 Suspension Seat

$

$

Not available

16

Bad Boy 071-6065-18

Cushion Cover, 2025 Suspension Seat

$227.99

$

Usually ships in 4-7 days

0
