Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Rear Suspension Subassemblies Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

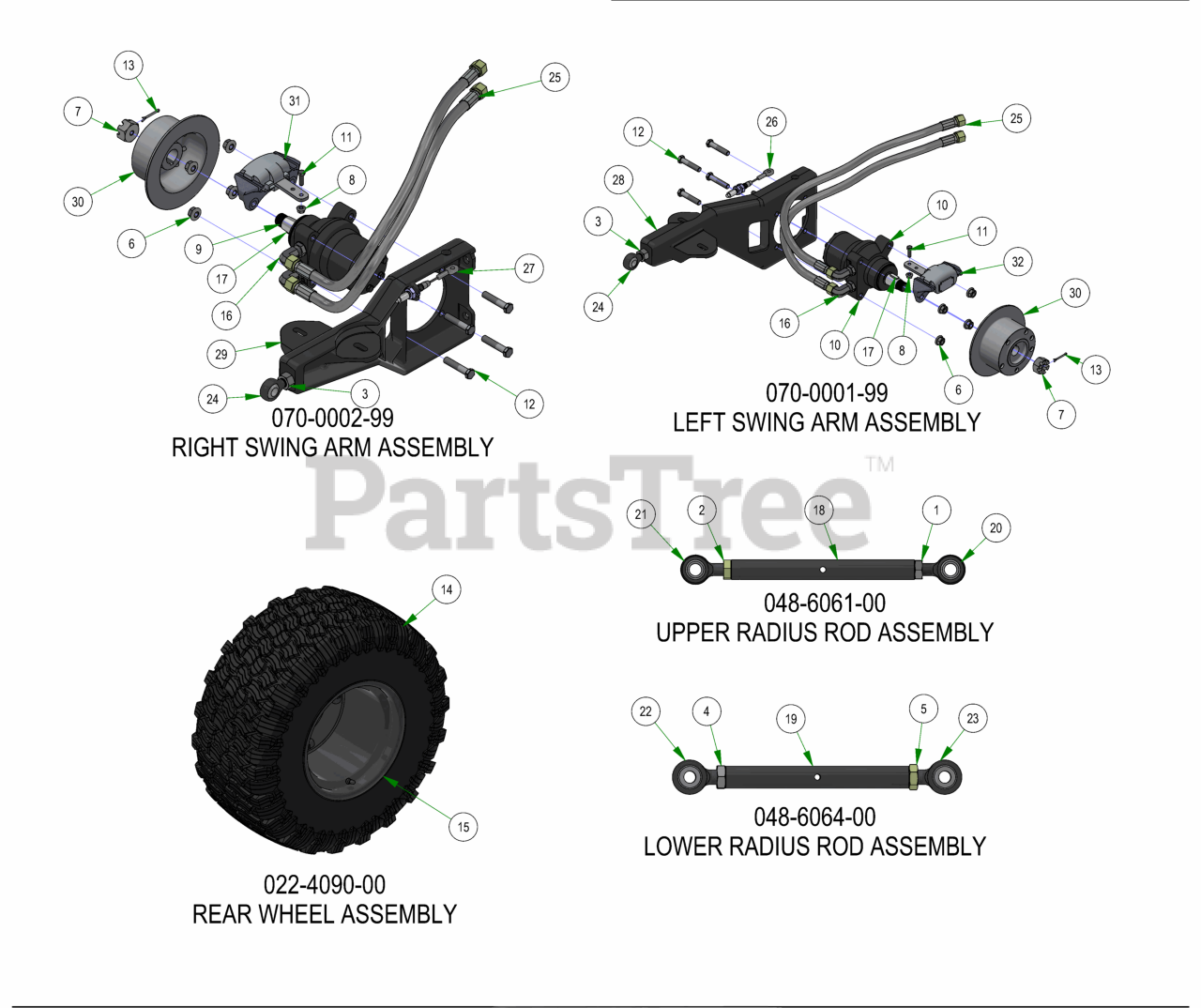

Rear Suspension Subassemblies Parts Diagram

  • Title

1

Bad Boy 013-0019-00

5/8-11 HEX JAM NUT ZINC

$4.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-0020-00

NUT, 5/8-18LH

$4.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-0022-00

3/4"-16 Fine Full Nut

$7.99

$

In Stock, only 2 left!

0

4

Bad Boy 013-0027-00

3/4-16 HEX JAM NUT ZINC

$

$

Currently unavailable

5

Bad Boy 013-0028-00

3/4-16 LH HEX JAM NUT ZINC

$2.49

$

Usually ships in 4-7 days

0

6

Bad Boy 013-6040-00

1/2-13 Gr 8 Centerlock Flange Nut

$1.49

$

In Stock, only 3 left!

0

7

Bad Boy 013-7050-00

1" Castle Nut for HydroGear Wheel Motor

$19.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

9

Bad Boy 015-4600-00

18cc Parker Wheel Motor- Right

$683.99

$

Usually ships in 4-7 days

0

10

Bad Boy 015-4601-00

18cc Parker Wheel Motor- Left

$683.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-6041-00

1/2-13 x 2.75 Gr. 8 Hex Head Bolt

$3.49

$

In Stock, only 3 left!

0

13

Bad Boy 020-7022-00

1/8 X 1-1/2 COTTER PIN ZINC

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 022-4085-00

2019 26x12-12 Reaper Turf Tire

$250.99

$

Usually ships in 4-7 days

0

15

Bad Boy 022-4086-00

2019 10.5" Wheel

$206.99

$

Usually ships in 4-7 days

0

16

Bad Boy 024-2065-00

2019 Rouge/Renegade Wheel Motor 90* Fitting #6801-10L

$19.99

$

Usually ships in 4-7 days

0

17

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0

18

Bad Boy 048-0001-00

2019 Suspension Link Body

$30.99

$

Usually ships in 4-7 days

0

19

Bad Boy 048-0002-00

Rear Radius Rod, 3/4 Body

$

$

Currently unavailable

20

Bad Boy 048-6062-00

2019 RH 5/8" Heim

$45.99

$

In Stock, only 3 left!

0

21

Bad Boy 048-6063-00

2019 LH 5/8" Heim

$45.99

$

In Stock, only 3 left!

0

22

Bad Boy 048-6065-00

3/4-16 x 5/8 RH Heim

$45.99

$

Usually ships in 4-7 days

0

23

Bad Boy 048-6066-00

3/4-16 x 5/8 LH Heim

$45.99

$

Usually ships in 4-7 days

0

24

Bad Boy 048-7001-00

3/4-16 RH Male Rod End

$30.99

$

In Stock, Qty 5

0

25

Bad Boy 051-6007-00

2019 Renegade Hydro Hose

$58.99

$

In Stock, only 2 left!

0

26

Bad Boy 064-8054-00

2019 Short Brake Cable-Suspension Models

$54.99

$

Usually ships in 4-7 days

0

27

Bad Boy 064-9002-00

2019 Long Brake Cable-Renegade, Rogue

$54.99

$

Usually ships in 4-7 days

0

28

Bad Boy 070-0001-00

2019 Left Trailing Arm

$332.99

$

Usually ships in 4-7 days

0

29

Bad Boy 070-0002-00

2019 Right Trailing Arm

$250.99

$

Usually ships in 4-7 days

0

30

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

31

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

0

32

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

0
