Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Pump Plate Subassemblies Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

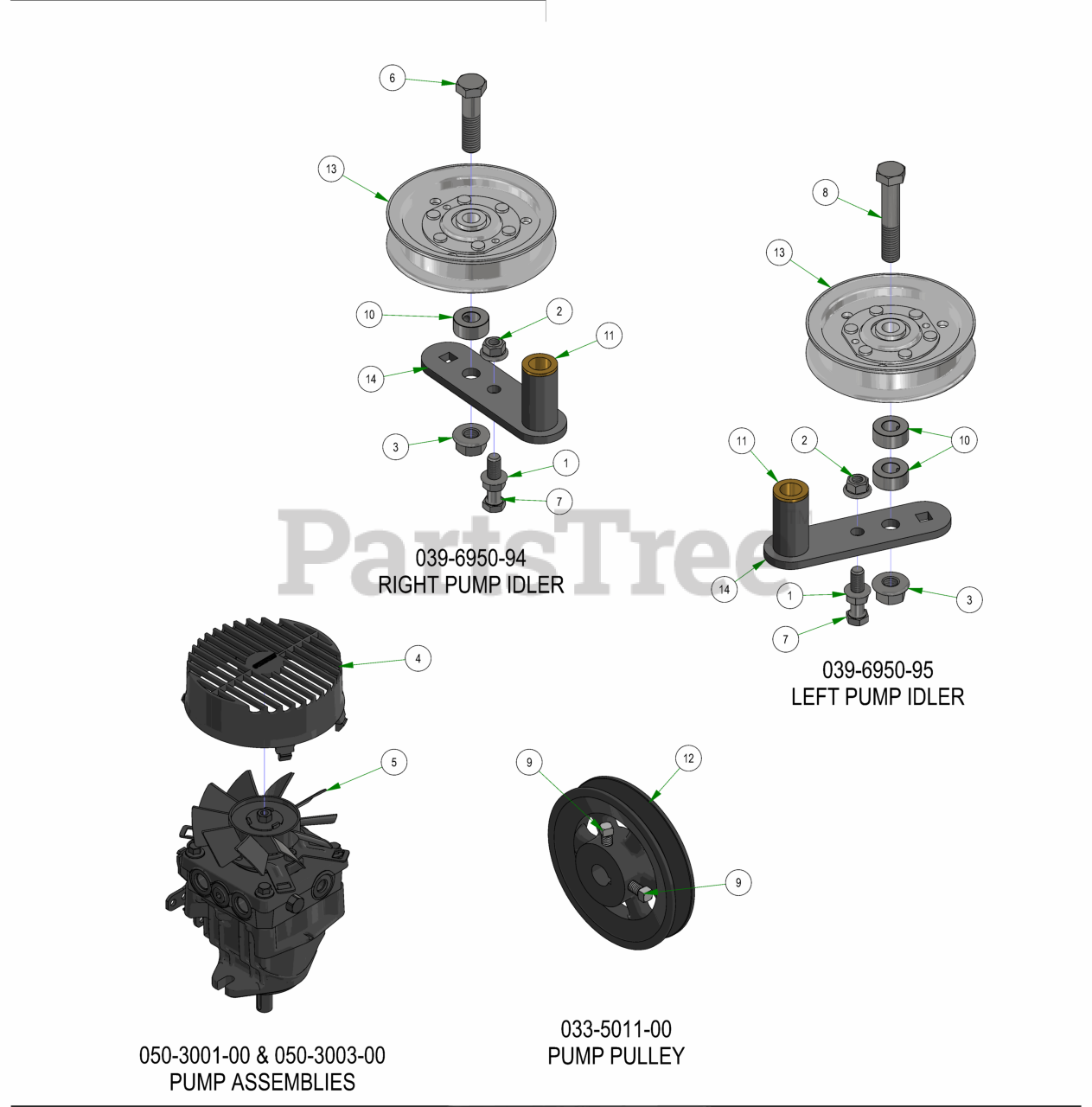

Pump Plate Subassemblies Parts Diagram

  • Title

1

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 014-5600-00

Fan Guard 6" - Fits Wheel

$42.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-9999-00

Hydro Fan - Light/Pup/Outlaw XP

$30.99

$

In Stock, Qty 5

0

6

Bad Boy 018-0022-00

1/2-13 X 2 HEX CAP SCREW (GR.8) ZINC YELLOW

$3.49

$

Usually ships in 4-7 days

0

7

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

8

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

9

Bad Boy 018-8072-00

Square-Head Cup-Point Set Screw 5/16''-18

$1.99

$

In Stock, Qty 14

0

10

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

11

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK FLANGED BEARING OIL-IMPREG BRNZ

$4.99

$

In Stock, Qty 11

0

12

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 13

0

13

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

14

Bad Boy 039-6950-00

Renegade - Gas Pump Idler - Weldment

$

$

Not available
