Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Pump Plate Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

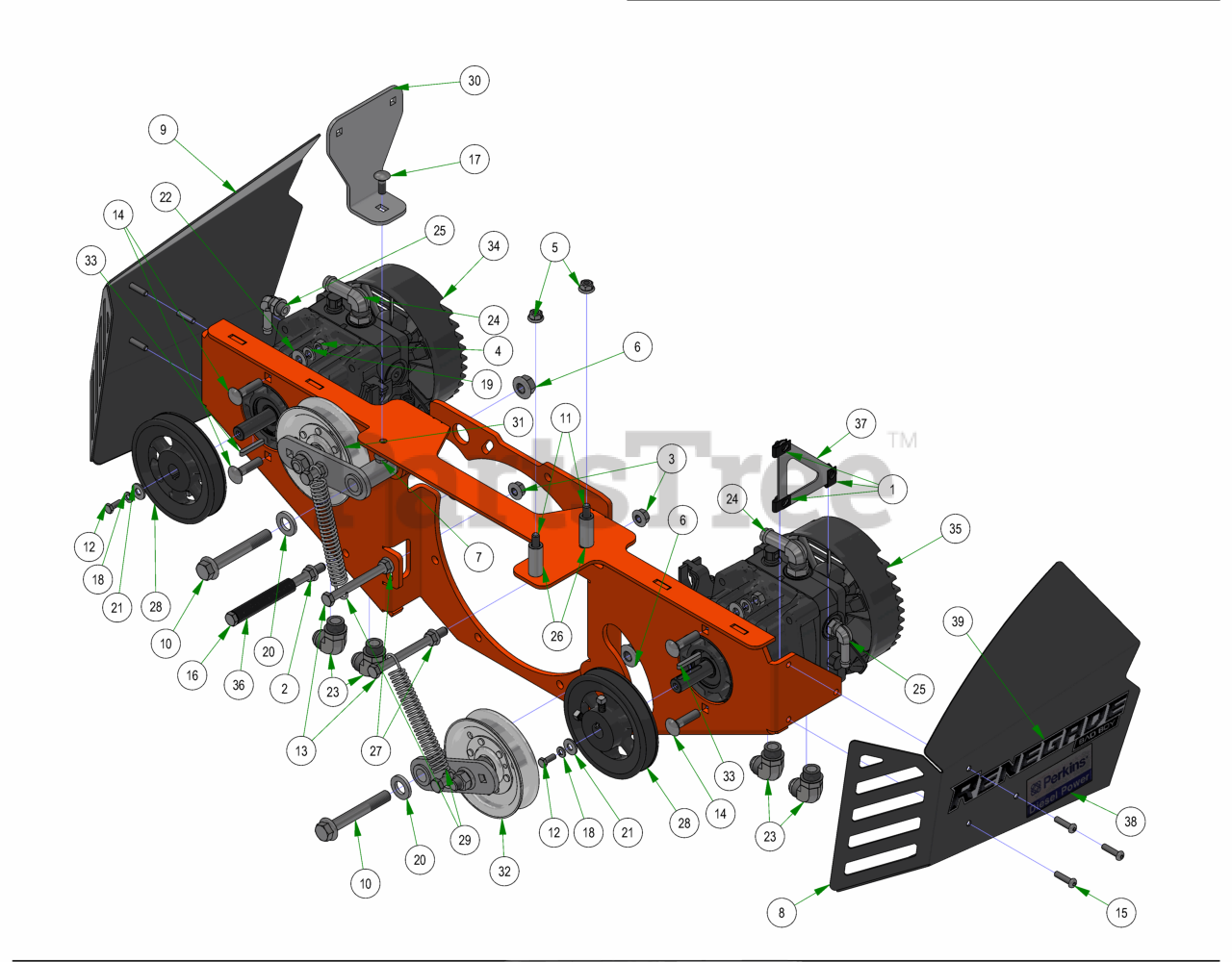

Pump Plate Parts Diagram

  • Title

1

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

5

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

8

Bad Boy 014-5060-22

2019 Horizontal Pump Cover - Right - Black

$22.99

$

Usually ships in 4-7 days

0

9

Bad Boy 014-5061-22

2019 Horizontal Pump Cover - Left - Black

$34.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-0010-00

1/2-13 X 90MM HEX FLANGE BOLT W/SHOULDER (GR.8) ZINC

$6.99

$

In Stock, Qty 20+

0

11

Bad Boy 018-0023-00

5/16-18 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$

$

Not available

12

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

13

Bad Boy 018-2005-00

3/8-16 X 4-1/4 HEX CAP SCREW (GR.5) ZINC

$2.99

$

Usually ships in 4-7 days

0

14

Bad Boy 018-4706-00

3/8-16 X 1-1/2 CARRIAGE BOLT ZINC

$1.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-6014-00

1/4-20 x 1" BS C/S 18-8 SS

$6.49

$

Usually ships in 4-7 days

0

16

Bad Boy 018-7060-00

3/8-16 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

17

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

18

Bad Boy 019-4008-00

1/4SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 6

0

19

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 8

0

20

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

21

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

22

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

23

Bad Boy 024-2052-00

2019 Outlaw 90 Degree Pump Fitting #6801-10-08

$13.99

$

Usually ships in 4-7 days

0

24

Bad Boy 024-5002-00

90 Degree Fitting, 1/2 x 3/4, 4601-8-8

$18.99

$

Usually ships in 4-7 days

0

25

Bad Boy 024-5206-00

90 Degree Fitting, 3/8 s 9/16

$13.99

$

Usually ships in 4-7 days

0

26

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE SPACER ZINC

$7.99

$

Usually ships in 4-7 days

0

27

Bad Boy 026-8050-00

2020 Diesel Pump Plate Weldment - Painted

$

$

Not available

28

Bad Boy 033-5011-00

5" PUMP PULLEY W/ SET SCREW

$37.99

$

In Stock, Qty 13

0

29

Bad Boy 034-9000-00

ZT and ACS Handle Spring

$16.99

$

In Stock, Qty 5

0

30

Bad Boy 039-1025-00

2019 Diesel Muffler Bracket

$

$

Currently unavailable

31

Bad Boy 039-6950-94

2020 Diesel Pump Tensioner Assembly LH

$90.99

$

Usually ships in 4-7 days

0

32

Bad Boy 039-6950-95

2020 Diesel Pump Tensioner Assembly RH

$90.99

$

Usually ships in 4-7 days

0

33

Bad Boy 042-5013-00

5MM X 36MM SQ MACHINERY KEY C1018 ROUNDED ENDS

$3.49

$

In Stock, Qty 14

0

34

Bad Boy 050-3001-00

2019 Rogue/Renegade Left Pump 16cc

$797.99

$

Usually ships in 4-7 days

0

35

Bad Boy 050-3003-00

2019 Outlaw Renegade Right Pump 16cc

$740.99

$

Usually ships in 4-7 days

0

36

Bad Boy 051-8076-00

3/8 hose 4" long

$6.99

$

Usually ships in 4-7 days

0

37

Bad Boy 057-5915-00

Pump Plate Clip Nut Holder

$18.99

$

Usually ships in 4-7 days

0

38

Bad Boy 091-0017-00

PERKINS Decal

$14.99

$

Usually ships in 4-7 days

0

39

Bad Boy 091-0517-00

Renegade Back Plate Decal

$

$

Currently unavailable
