Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Front End Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

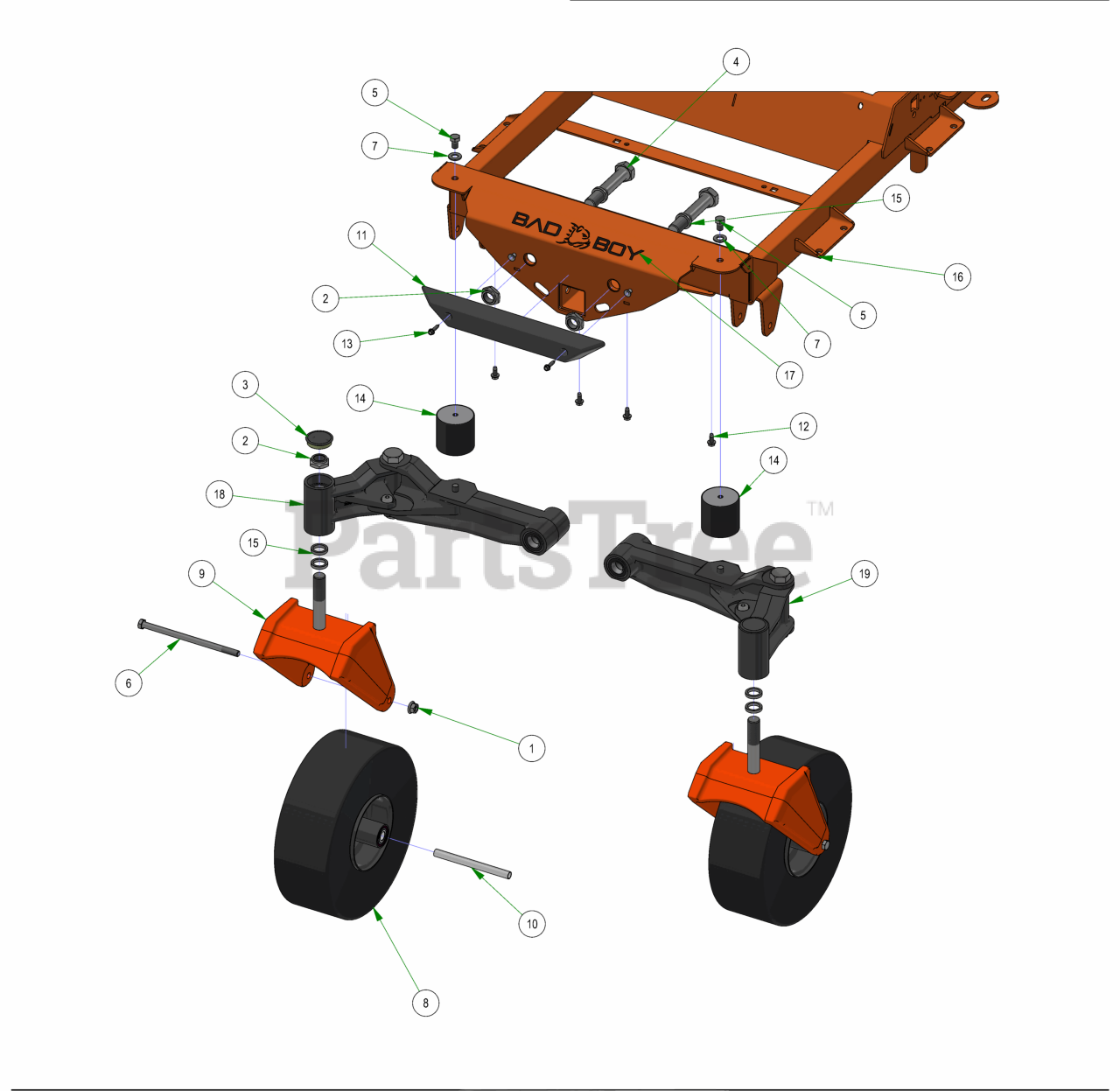

Front End Parts Diagram

Title

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

In Stock, Qty 20+

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

In Stock, Qty 10

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

In Stock, Qty 12

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

In Stock, only 2 left!

Bad Boy 018-1055-00

1/2-13 X 3/4 HEX CAP SCREW (GR.5) ZINC

$3.49

Usually ships in 4-7 days

Bad Boy 018-7010-00

1/2-13 X 9 HEX CAP SCREW (GR.5) ZINC

$6.49

In Stock, Qty 17

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

In Stock, only 1 left!

Bad Boy 022-0003-00

2019 15x6.00-6 Non Pneumatic Black Front Assembly

$182.99

In Stock, Qty 6

Bad Boy 023-0004-20

2020 R Series Cast Front Fork

$193.99

Usually ships in 4-7 days

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

In Stock, Qty 20+

Bad Boy 029-8000-00

2017 XP BUMPER

$33.99

In Stock, only 2 left!

Bad Boy 030-7042-00

5/16-18 X 3/4 HEX WASHER SLOT (F) TCS ZINC

$1.49

Usually ships in 4-7 days

Bad Boy 030-7047-00

1/4-14 X 1-1/4 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

Usually ships in 4-7 days

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

In Stock, only 2 left!

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

In Stock, Qty 9

Bad Boy 070-5376-22

2022 Horizontal Diesel Frame

Not available 

Bad Boy 091-4063-00

Flying Bulldog Front Bumper Decal

$13.99

Usually ships in 4-7 days

Bad Boy 250-0032-03

2022 61/72 Rogue/Renegade Front Suspension Asy RH

$284.99

Usually ships in 4-7 days

Bad Boy 250-0033-03

2022 61/72 Rogue/Renegade Front Suspension Asy LH

$284.99

Usually ships in 4-7 days
