Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Drive Arm Subassemblies Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

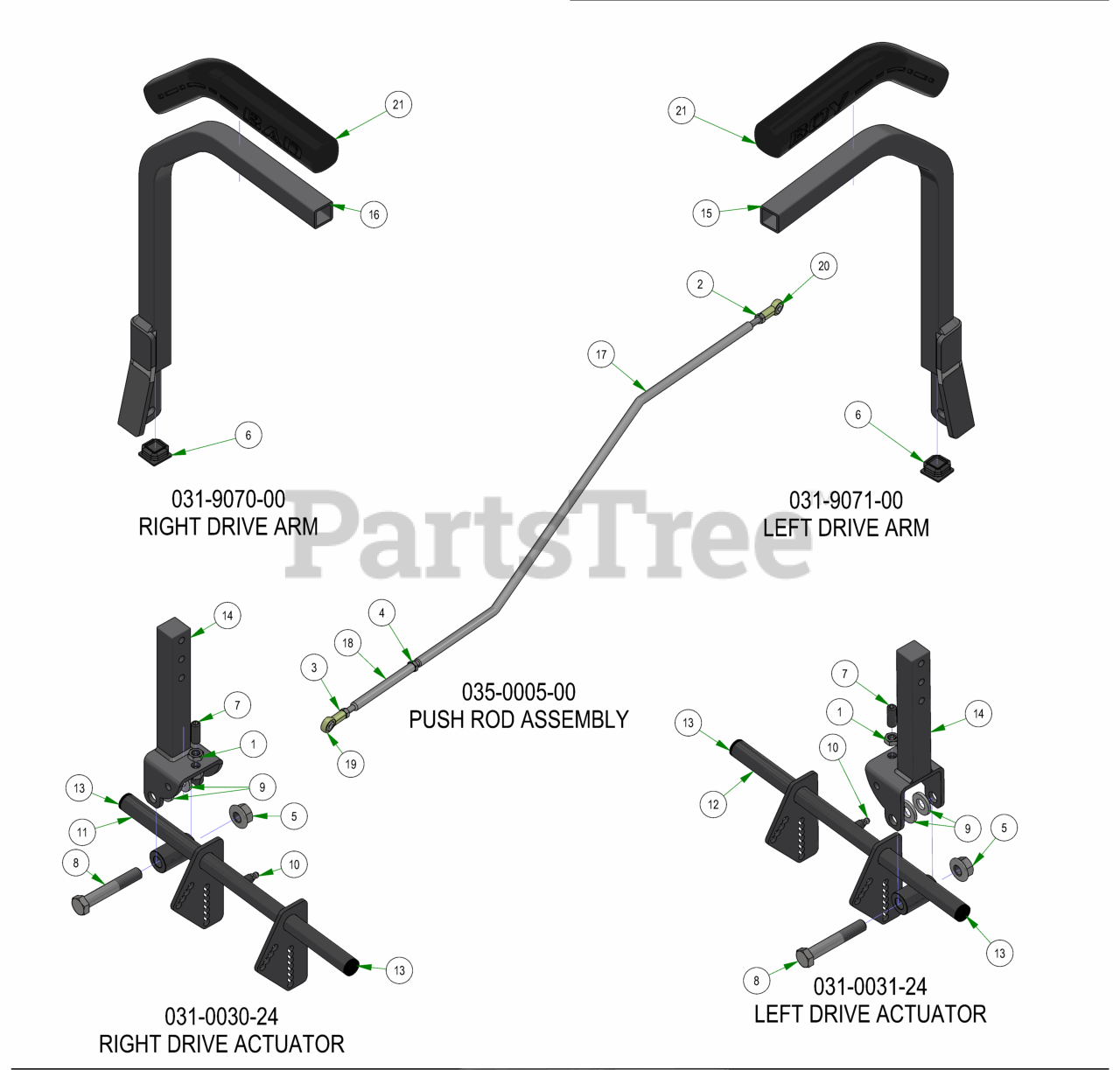

Drive Arm Subassemblies Parts Diagram

  • Title

1

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

2

Bad Boy 013-6049-00

5/16 RH Nut

$4.99

$

Usually ships in 4-7 days

0

3

Bad Boy 013-6050-00

5/16 LH Nut

$4.99

$

Usually ships in 4-7 days

0

4

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

5

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

6

Bad Boy 014-9004-00

9565K52_Polyethylene Square Plug

$

$

Not available

7

Bad Boy 018-0063-00

3/8-16 X 1 SOCKET SET SCREW (CUP POINT) PLAIN

$3.49

$

Usually ships in 4-7 days

0

8

Bad Boy 018-7016-00

1/2-13 X 3 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

9

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

10

Bad Boy 024-6034-00

1/4 DRIVE-TYPE STRAIGHT GREASE FITTING ZINC YELLOW)

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 031-0030-10

2019 Drive Arm Actuator right - Weldment

$

$

Currently unavailable

12

Bad Boy 031-0031-10

2019 Drive Arm Actuator left - Weldment

$

$

Currently unavailable

13

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

14

Bad Boy 031-0070-00

R Series Square Drive Arm Pivot

$56.99

$

Usually ships in 4-7 days

0

15

Bad Boy 031-9021-00

R Series Square Drive Arm LH Weldment

$

$

Not available

16

Bad Boy 031-9022-00

R Series Square Drive Arm RH Weldment

$

$

Currently unavailable

17

Bad Boy 035-0005-01

2019 Renegade Push Rod

$

$

Not available

18

Bad Boy 035-0006-00

2019 Renegade Push Rod Adjuster

$

$

Currently unavailable

19

Bad Boy 048-3002-00

Spherical Rod End - Outlaw

$34.99

$

Usually ships in 4-7 days

0

20

Bad Boy 048-3003-00

Spherical Rod End - Outlaw

$22.99

$

Usually ships in 4-7 days

0

21

Bad Boy 069-4014-00

R-Series Square Drive Grip

$18.99

$

Usually ships in 4-7 days

0
