Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Deck Subasssemblies Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

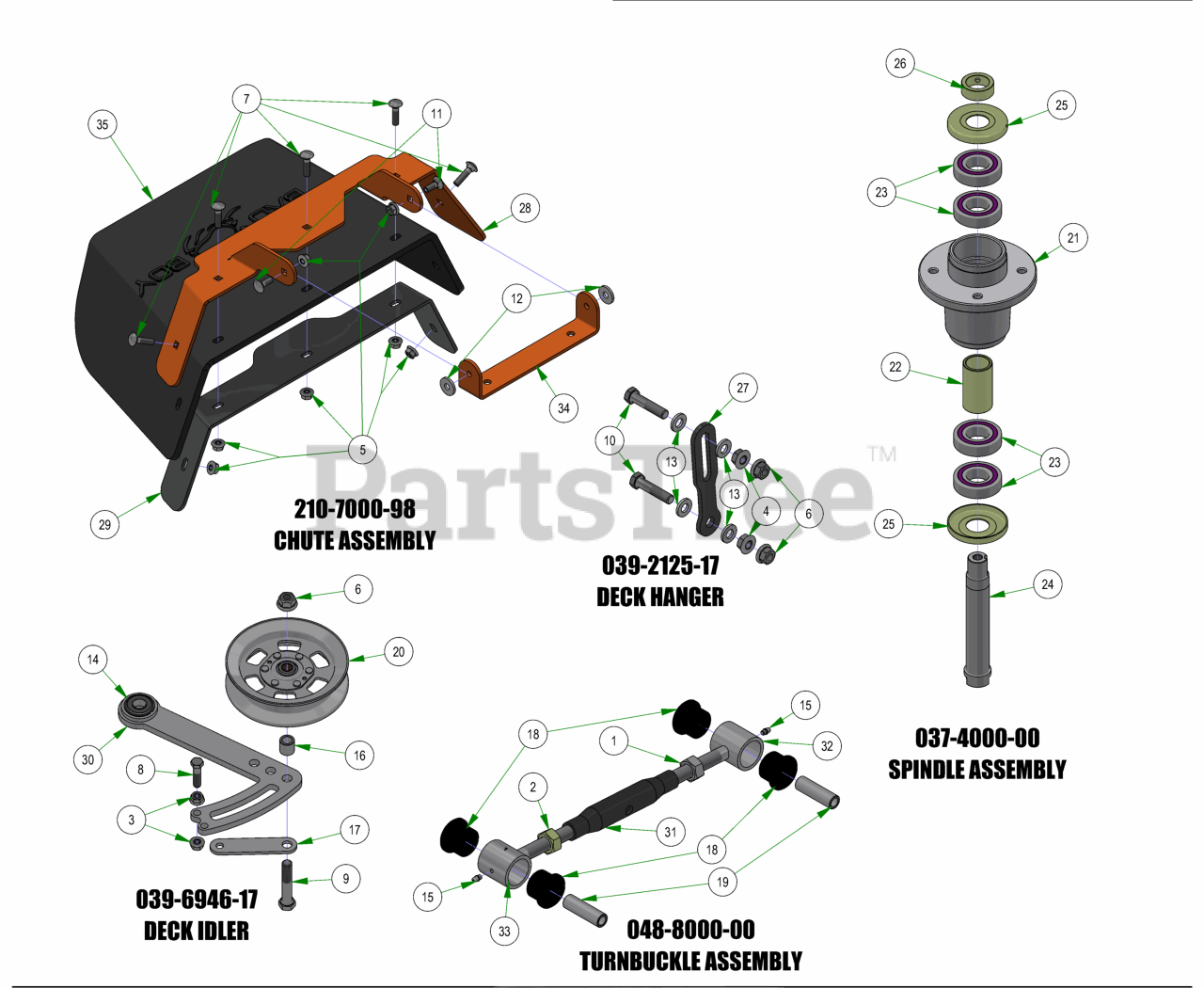

Deck Subasssemblies Parts Diagram

  • Title

1

Bad Boy 013-0030-00

Hex Nut M20-2.5

$

$

Currently unavailable

2

Bad Boy 013-0031-00

Hex Nut M20-2.5 Left Hand Threads Gold Plated

$

$

Currently unavailable

3

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

5

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

8

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

10

Bad Boy 018-6037-00

1/2-13 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

11

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

12

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

13

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

14

Bad Boy 022-7009-00

Ball Bearing w/Retainer, 99502H-NR, .625 Bore x 1.375 OD x .4375 Width

$14.99

$

In Stock, Qty 20+

0

15

Bad Boy 024-0001-00

1/4-28 Grease Fitting

$0.99

$

Usually ships in 4-7 days

0

16

Bad Boy 025-5203-00

.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC

$3.49

$

In Stock, Qty 15

0

17

Bad Boy 026-0167-00

Belt Tensioner Retainer Plate

$28.99

$

Usually ships in 4-7 days

0

18

Bad Boy 032-2000-00

Polyeurethane Bushing

$4.99

$

In Stock, Qty 11

0

19

Bad Boy 032-2001-00

Sleeve

$4.99

$

In Stock, only 4 left!

0

20

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

21

Bad Boy 037-4000-01

4000 Series Spindle Housing

$136.99

$

Usually ships in 0 days

0

22

Bad Boy 037-4002-00

4000 Series Spindle Spacer

$7.99

$

Usually ships in 4-7 days

0

23

Bad Boy 037-6023-00

Bearing - 6206

$

$

Not available

24

Bad Boy 037-6026-00

Spindle Shaft

$89.99

$

In Stock, Qty 12

0

25

Bad Boy 037-8002-00

Spindle Dust Cap

$12.99

$

In Stock, Qty 8

0

26

Bad Boy 037-9050-00

Locking Collar w/ 1/4"-20 Set Screw

$7.99

$

In Stock, Qty 6

0

27

Bad Boy 039-2125-00

Deck Hanger

$

$

Not available

28

Bad Boy 039-4893-00

2019 Upper Chute Bracket

$49.99

$

Usually ships in 4-7 days

0

29

Bad Boy 039-4894-00

2019 Lower Chute Bracket

$46.99

$

Usually ships in 4-7 days

0

30

Bad Boy 039-6946-10

2019 Deck Belt Tensioner

$

$

Currently unavailable

31

Bad Boy 048-8020-00

2024 Turnbuckle Body

$

$

Currently unavailable

32

Bad Boy 048-8021-00

Turnbuckle End Right-Handed Thread

$

$

Currently unavailable

33

Bad Boy 048-8022-00

Turnbuckle End Left-Handed Thread

$

$

Currently unavailable

34

Bad Boy 206-6018-00

2019 Chute Hanger

$10.99

$

Usually ships in 4-7 days

0

35

Bad Boy 210-6025-00

2019 Belted Chute with Logo

$66.99

$

In Stock, only 2 left!

0
