Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Battery & Rear Cover Parts Diagram

The Renegade Diesel Zero Turn Mower delivers exceptional power with a 24.7 hp Perkins diesel engine, a heavy-duty 61" fabricated steel deck, and patented 3-Link rear and independent front suspension for a smooth ride. Built for professionals or la

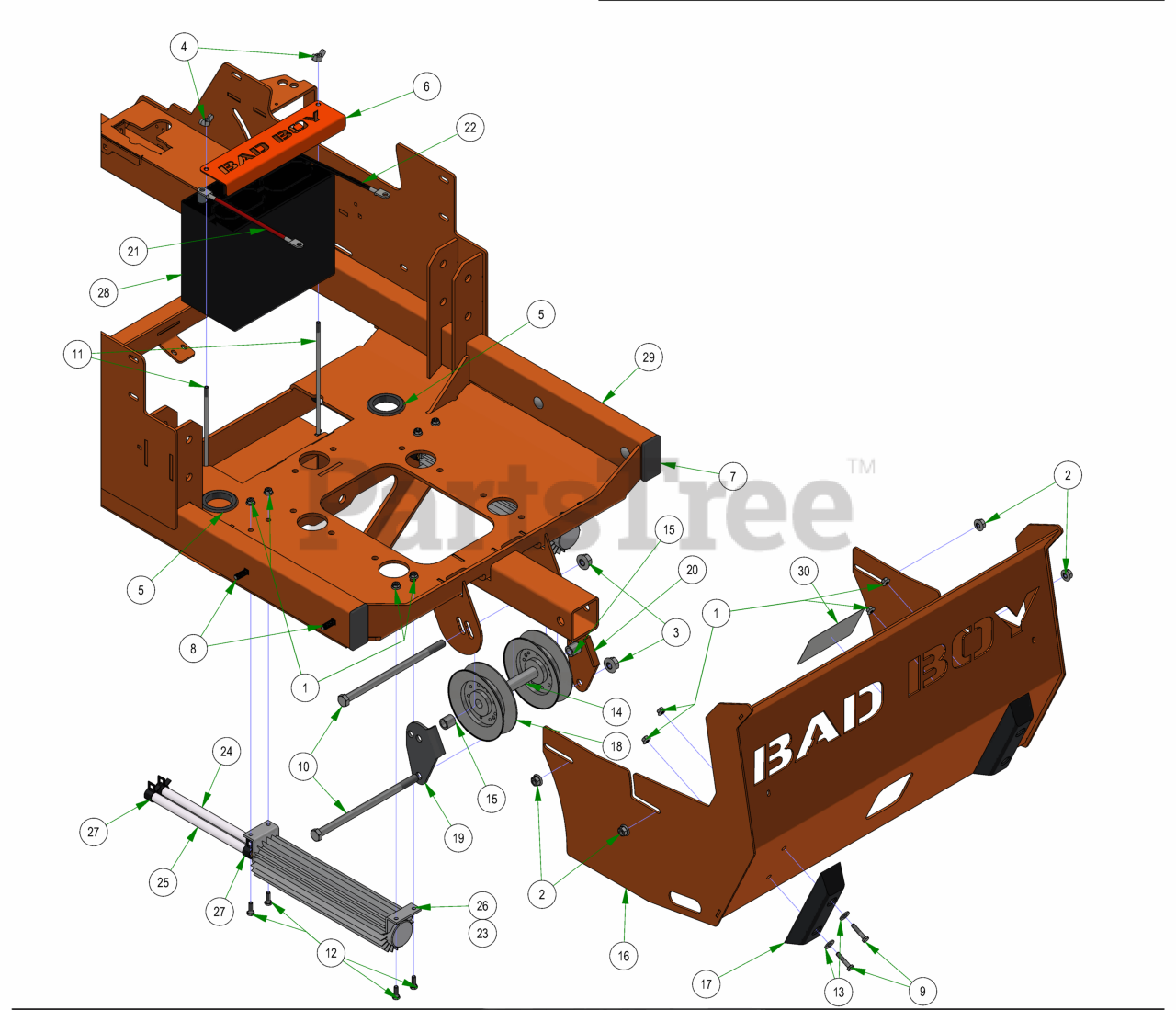

Battery & Rear Cover Parts Diagram

  • Title

1

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-8051-00

1/4-20 WING NUT FORGED (TYPE A) LIGHT SERIES ZINC

$0.99

$

In Stock, Qty 5

0

5

Bad Boy 014-2052-00

2019 2" x .25 Rubber Grommet

$13.99

$

Usually ships in 4-7 days

0

6

Bad Boy 014-5063-00

2019 Horizontal Battery Hold Down Cover

$11.99

$

Usually ships in 4-7 days

0

7

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

8

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-4702-00

1/4-20 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-7010-00

1/2-13 X 9 HEX CAP SCREW (GR.5) ZINC

$6.49

$

In Stock, Qty 17

0

11

Bad Boy 018-8051-00

1/4-20 X 9 CARRIAGE BOLT ZINC

$1.99

$

Usually ships in 4-7 days

0

12

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

13

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 7

0

14

Bad Boy 025-0028-00

2019 Pulley Spacer .75 x .5 x 4.375

$9.99

$

In Stock, only 2 left!

0

15

Bad Boy 025-5203-00

.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC

$3.49

$

In Stock, Qty 15

0

16

Bad Boy 026-2224-00

2019 Horizontal Suspension Rear Cover

$193.99

$

Usually ships in 4-7 days

0

17

Bad Boy 029-7038-00

8" Rubber Bumper

$30.99

$

Usually ships in 4-7 days

0

18

Bad Boy 033-7027-00

2019 Outlaw Horizontal Rear V Pulley

$49.99

$

In Stock, Qty 5

0

19

Bad Boy 039-0196-00

Renegade Deck Belt Rear Keeper - Left

$1.49

$

Usually ships in 4-7 days

0

20

Bad Boy 039-0197-00

Renegade Deck Belt Rear Keeper-Right

$1.49

$

Usually ships in 4-7 days

0

21

Bad Boy 064-4000-00

Red Battery Cable - Diesel

$25.99

$

Usually ships in 4-7 days

0

22

Bad Boy 064-4001-00

Black Battery Cable - Diesel

$23.99

$

Usually ships in 4-7 days

0

23

Bad Boy 067-8052-19

Renegade Oil Cooler Assembly

$75.99

$

Usually ships in 4-7 days

0

24

Bad Boy 051-8063-14

3/8" Clear Hose - 14"

$6.49

$

Usually ships in 4-7 days

0

25

Bad Boy 051-8063-24

3/8" Clear Hose - 24"

$13.99

$

Usually ships in 4-7 days

0

26

Bad Boy 067-8052-00

2019 12" Oil Cooler With Fittings

$66.99

$

Usually ships in 4-7 days

0

27

Bad Boy 072-8065-00

3/8" Hose Clamp

$1.49

$

In Stock, only 2 left!

0

28

Bad Boy 068-8050-00

Battery - Diesel/Renegade Models PF-516

$

$

Not available

29

Bad Boy 070-5376-22

2022 Horizontal Diesel Frame

$

$

Not available

30

Bad Boy 091-4032-00

2019 Renegade Pump Belt Route Decal

$7.99

$

Usually ships in 4-7 days

0
