Renegade Diesel - Bad Boy Zero-Turn Mower (2024) FRONT END Parts Diagram

Zero-Turn Mower

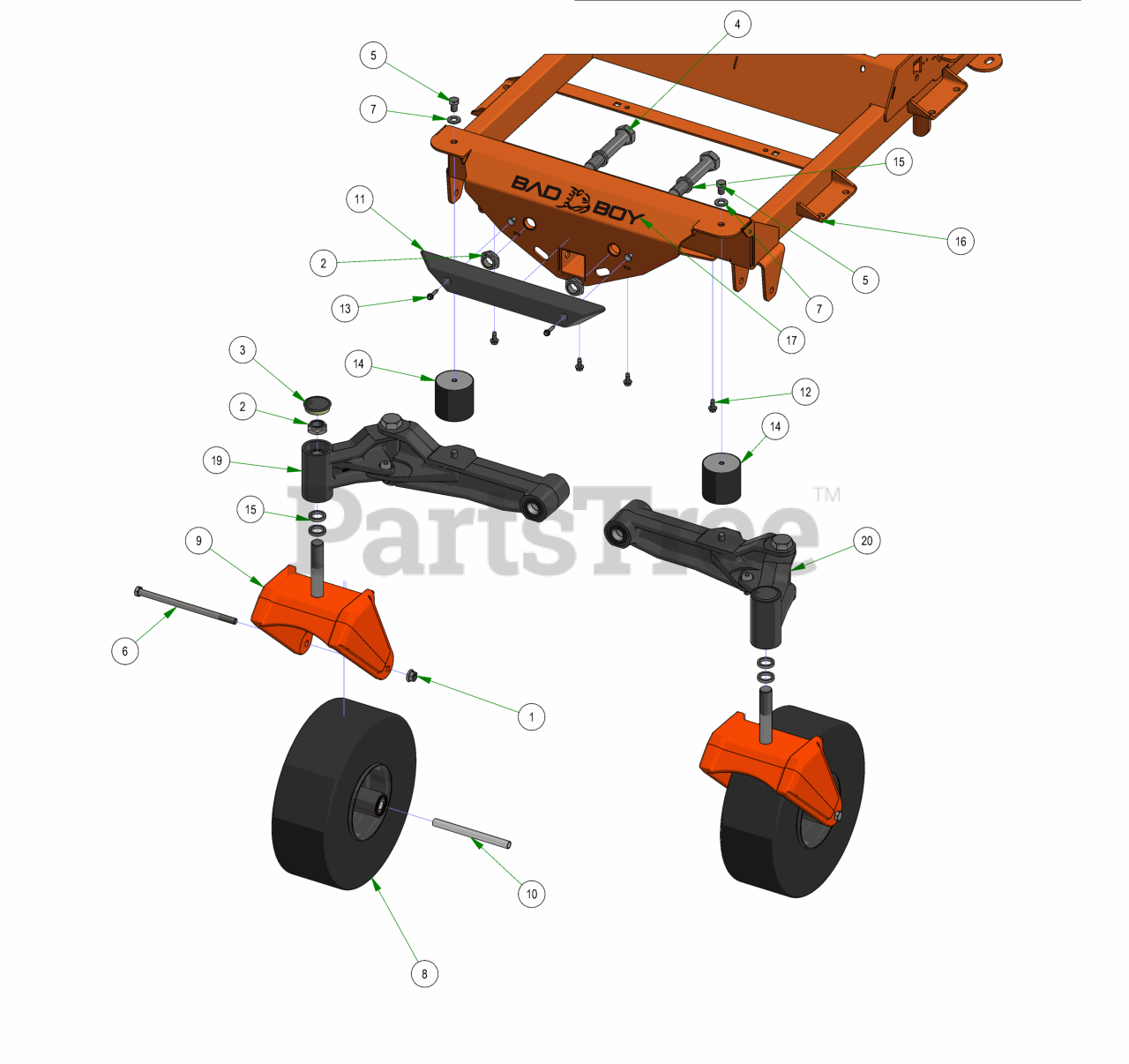

FRONT END Parts Diagram

1

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-9004-00

1"-14 NYLON INSERT JAM LOCKNUT ZINC

$3.99

$

In Stock, Qty 10

0

3

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

4

Bad Boy 018-0026-00

1"-14 X 5-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$14.99

$

In Stock, only 2 left!

0

5

Bad Boy 018-1055-00

1/2-13 X 3/4 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

6

Bad Boy 018-7010-00

1/2-13 X 9 HEX CAP SCREW (GR.5) ZINC

$6.49

$

In Stock, Qty 17

0

7

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

In Stock, only 1 left!

0

8

Bad Boy 022-0003-00

2019 15x6.00-6 Non Pneumatic Black Front Assembly

$182.99

$

In Stock, Qty 6

0

9

Bad Boy 023-0004-20

2020 R Series Cast Front Fork

$193.99

$

Usually ships in 4-7 days

0

10

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

11

Bad Boy 029-8000-00

2017 XP BUMPER

$33.99

$

In Stock, only 2 left!

0

12

Bad Boy 030-7042-00

5/16-18 X 3/4 HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

13

Bad Boy 030-7047-00

1/4-14 X 1-1/4 HEX WASHER UNSLOT TEK/3 ZINC

$0.99

$

Usually ships in 4-7 days

0

14

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

15

Bad Boy 058-1000-00

1.02 ID X 1.38 OD X .250 THK SPACER ZINC

$6.99

$

In Stock, Qty 9

0

16

Bad Boy 070-5376-22

2022 Horizontal Diesel Frame

$

$

Not available

17

Bad Boy 091-4063-00

Flying Bulldog Front Bumper Decal

$13.99

$

Usually ships in 4-7 days

0

18

Bad Boy 091-8002-00

Independetly Articulating Front Suspension Arms Patent Decal

$5.99

$

Usually ships in 4-7 days

0

19

Bad Boy 250-0032-03

2022 61/72 Rogue/Renegade Front Suspension Asy RH

$284.99

$

Usually ships in 4-7 days

0

20

Bad Boy 250-0033-03

2022 61/72 Rogue/Renegade Front Suspension Asy LH

$284.99

$

Usually ships in 4-7 days

0
