Renegade Diesel - Bad Boy Zero-Turn Mower (2024) ENGINE BAY Parts Diagram

Zero-Turn Mower

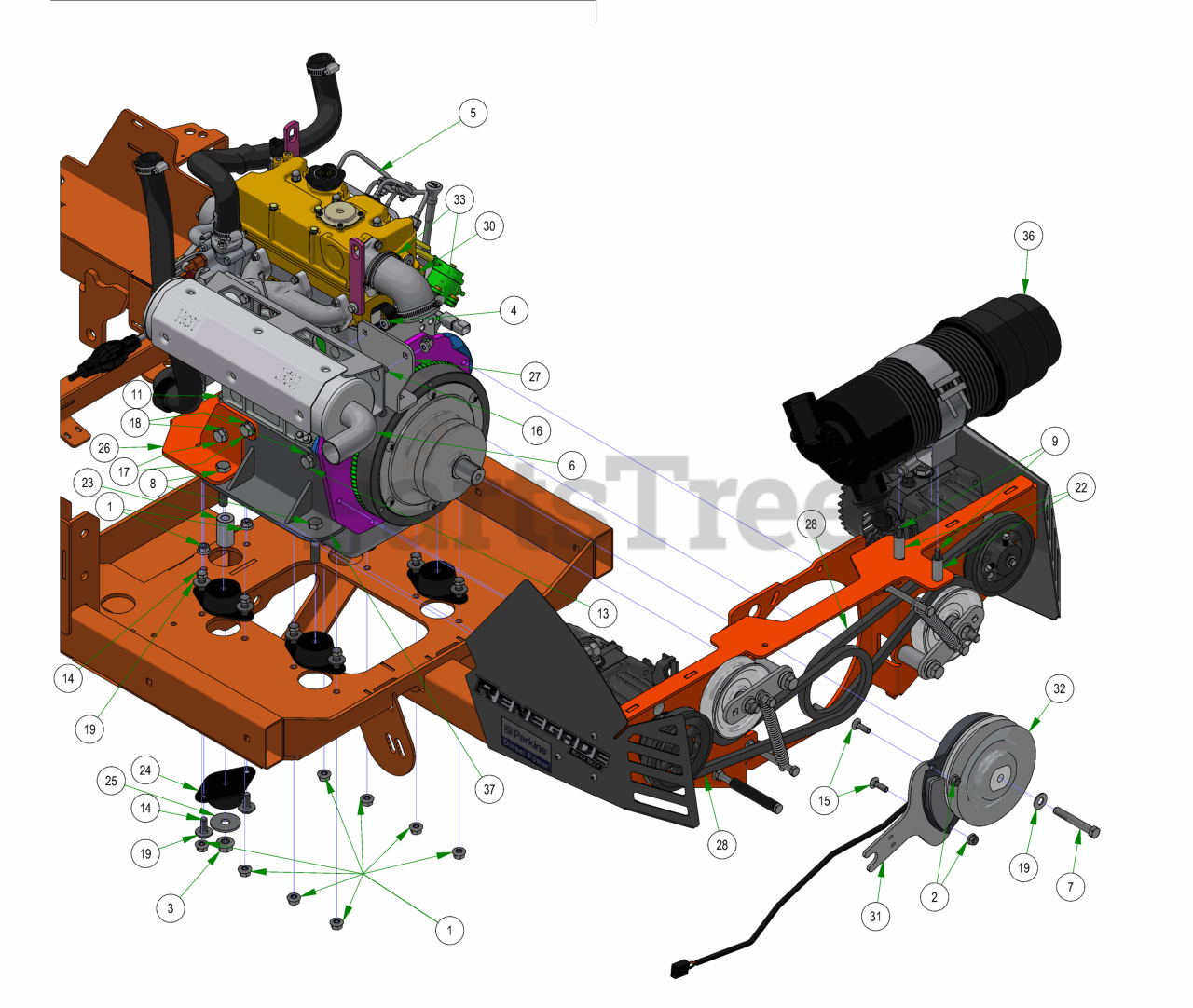

ENGINE BAY Parts Diagram

  • Title
1

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

5

Bad Boy 015-0097-00

24.7HP Perkins Engine, 403J-11

$

$

Not available

6

Bad Boy 015-1019-00

2019 Renegade 1100cc Diesel Muffler

$200.99

$

Usually ships in 4-7 days

0

7

Bad Boy 018-0007-21

7/16-20x3” Hex Bolt GR 8 W/ Patch

$3.49

$

Usually ships in 4-7 days

0

8

Bad Boy 018-0015-00

1/2-13 X 2-1/2 HEX CAP SCREW GR 5 ZINC

$3.49

$

Usually ships in 4-7 days

0

9

Bad Boy 018-0023-00

5/16-18 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$

$

Not available

11

Bad Boy 018-5019-00

1/2-13 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.99

$

In Stock, Qty 6

0

13

Bad Boy 018-6022-00

M12-1.25 X 25MM DIN 961 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

Usually ships in 4-7 days

0

14

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

15

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

16

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

17

Bad Boy 018-9002-00

M12-1.25 X 30MM DIN 961 HEX TAP BOLT (CL 8.8) ZINC

$

$

Not available

18

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

19

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

22

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE SPACER ZINC

$7.99

$

Usually ships in 4-7 days

0

23

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, Qty 5

0

24

Bad Boy 032-4050-00

Rubber Compression Mount

$81.99

$

Usually ships in 4-7 days

0

25

Bad Boy 032-4051-00

.520 ID X 1.750 OD X .120 THICK FLAT WASHER ZINC

$18.99

$

Usually ships in 4-7 days

0

26

Bad Boy 039-0176-00

2022 Renegade Diesel Front Engine Mount

$

$

Currently unavailable

27

Bad Boy 039-1025-00

2019 Diesel Muffler Bracket

$

$

Currently unavailable

28

Bad Boy 041-8001-00

2020 Renegade Pump Belt, 42.99"

$85.99

$

In Stock, Qty 9

0

30

Bad Boy 051-3004-00

2019 Diesel Air intake Hose

$15.99

$

Usually ships in 4-7 days

0

31

Bad Boy 057-5919-00

2019 Outlaw Renegade Clutch Bracket

$30.99

$

Usually ships in 4-7 days

0

32

Bad Boy 070-5040-00

Clutch for Diesel/Vanguard

$454.99

$

In Stock, only 3 left!

0

33

Bad Boy 072-2002-00

2-1/2" Hose Clamp

$12.99

$

Usually ships in 4-7 days

0

36

Bad Boy 088-1010-50

Enginaire Canister VLR-Complet

$262.99

$

Usually ships in 4-7 days

0

37

Bad Boy 201-8030-00

2019 Diesel Motor Mount

$

$

Currently unavailable
