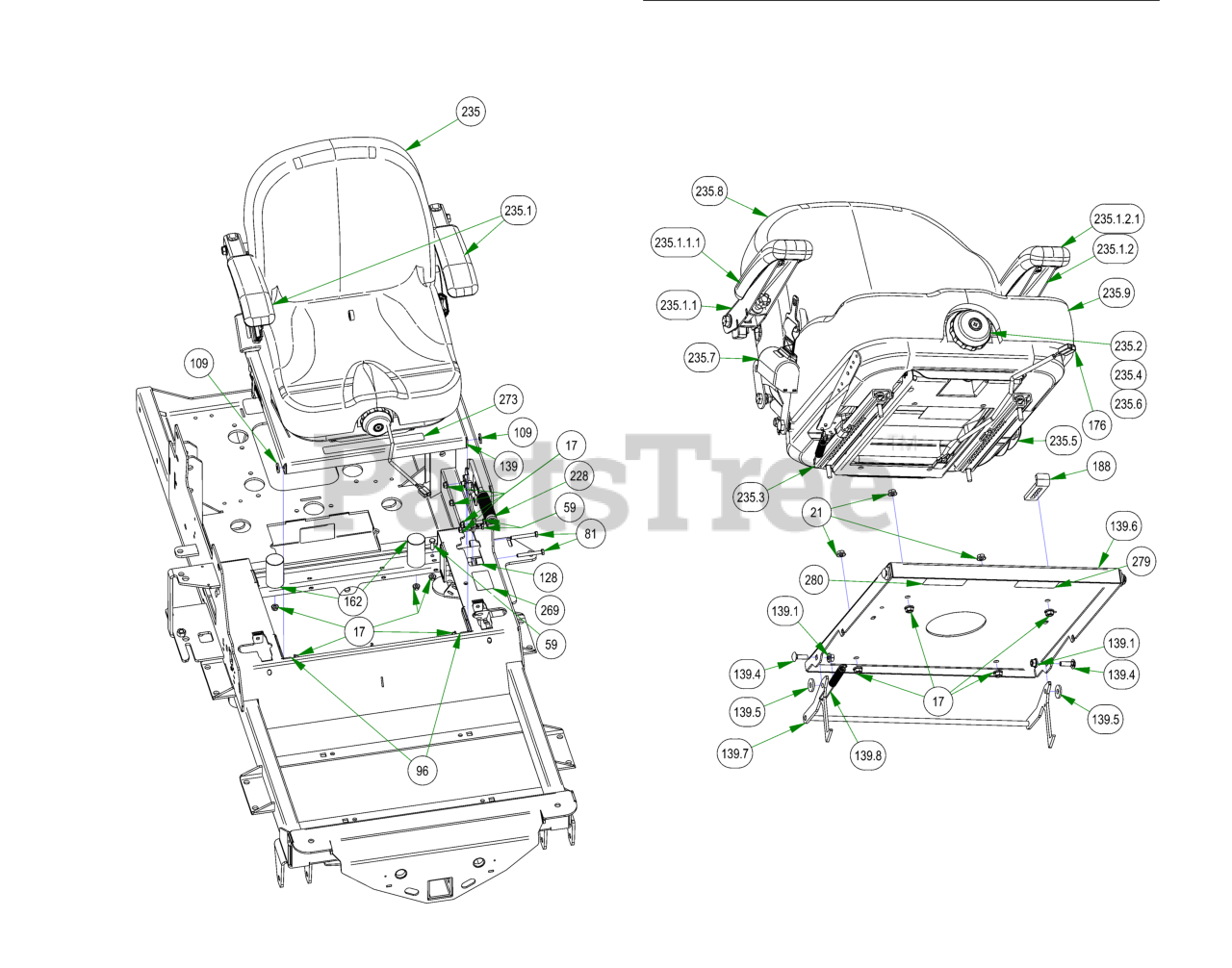

Renegade Diesel - Bad Boy Zero-Turn Mower (2023) SEAT & BRAKE Parts Diagram

Zero-Turn Mower

SEAT & BRAKE Parts Diagram

  • Title

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

21

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

59

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

81

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

96

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

109

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

128

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE SPACER ZINC

$7.99

$

Usually ships in 4-7 days

0

139

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

$136.99

$

Usually ships in 4-7 days

0

162

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

$24.99

$

Usually ships in 4-7 days

0

176

Bad Boy 036-5300-00

Seat Switch Adapter

$16.99

$

Usually ships in 4-7 days

0

188

Bad Boy 039-2156-00

Seat Stop

$15.99

$

Usually ships in 4-7 days

0

228

Bad Boy 069-0001-00

2019 Brake Handle Assembly

$151.99

$

In Stock, only 2 left!

0

234

Bad Boy 070-5376-22

2022 Horizontal Diesel Frame

$

$

Not available

235

Bad Boy 071-6065-22

2022 Suspension Seat w/Seatbelt

$946.99

$

Usually ships in 4-7 days

0

269

Bad Boy 091-1101-18

2018 Out/XP/Diesel Brake Decal

$6.49

$

Usually ships in 4-7 days

0

273

Bad Boy 091-3150-00

Outlaw Warning Decal

$11.99

$

In Stock, only 2 left!

0

279

Bad Boy 091-4038-00

Control Adj. Control Rod Decal

$6.49

$

Usually ships in 4-7 days

0

280

Bad Boy 091-4039-00

Control Adj. Control Dampener Decal

$6.49

$

Usually ships in 4-7 days

0

139.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

139.4

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

139.5

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

139.6

Bad Boy 026-2019-00

R-SERIES SEAT PLATE

$105.99

$

Usually ships in 4-7 days

0

139.7

Bad Boy 028-0090-00

Seat Latch Rod Assembly

$41.99

$

Usually ships in 4-7 days

0

139.8

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

235.1

Bad Boy 071-6065-04

Set of Armrests-SS Front Adj

$156.99

$

Usually ships in 4-7 days

0

235.2

Bad Boy 071-6065-05

Weight Adjust Indicator Knob Assy

$34.99

$

Usually ships in 4-7 days

0

235.3

Bad Boy 071-6065-06

4" Single Locking Track Kit

$105.99

$

Usually ships in 4-7 days

0

235.4

Bad Boy 071-6065-07

Delta Plunger Switch - N.O.

$22.99

$

Usually ships in 4-7 days

0

235.5

Bad Boy 071-6065-10

Recliner Adjustment Knob-New

$34.99

$

Usually ships in 4-7 days

0

235.6

Bad Boy 071-6065-13

Bellows w/Hardware

$68.99

$

Usually ships in 4-7 days

0

235.7

Bad Boy 071-6065-14

2" Retractable Belt Kit w/Spacers

$

$

Not available

235.8

Bad Boy 071-6065-15

Back Cover for I3M - Recl - Logos

$227.99

$

Usually ships in 4-7 days

0

235.9

Bad Boy 071-6065-16

Cushion Cover Kit for I3M-Logo

$175.99

$

Usually ships in 4-7 days

0

235.1.1

Bad Boy 071-6065-11

RH Armrest-Selfskin Front Adj

$136.99

$

Usually ships in 4-7 days

0

235.1.1.1

Bad Boy 071-6065-03

Black Selfskin-Arm Pad Only

$35.99

$

Usually ships in 4-7 days

0

235.1.2

Bad Boy 071-6065-12

LH Armrest-Selfskin Front Adj

$136.99

$

Usually ships in 4-7 days

0

235.1.2.1

Bad Boy 071-6065-03

Black Selfskin-Arm Pad Only

$35.99

$

Usually ships in 4-7 days

0
