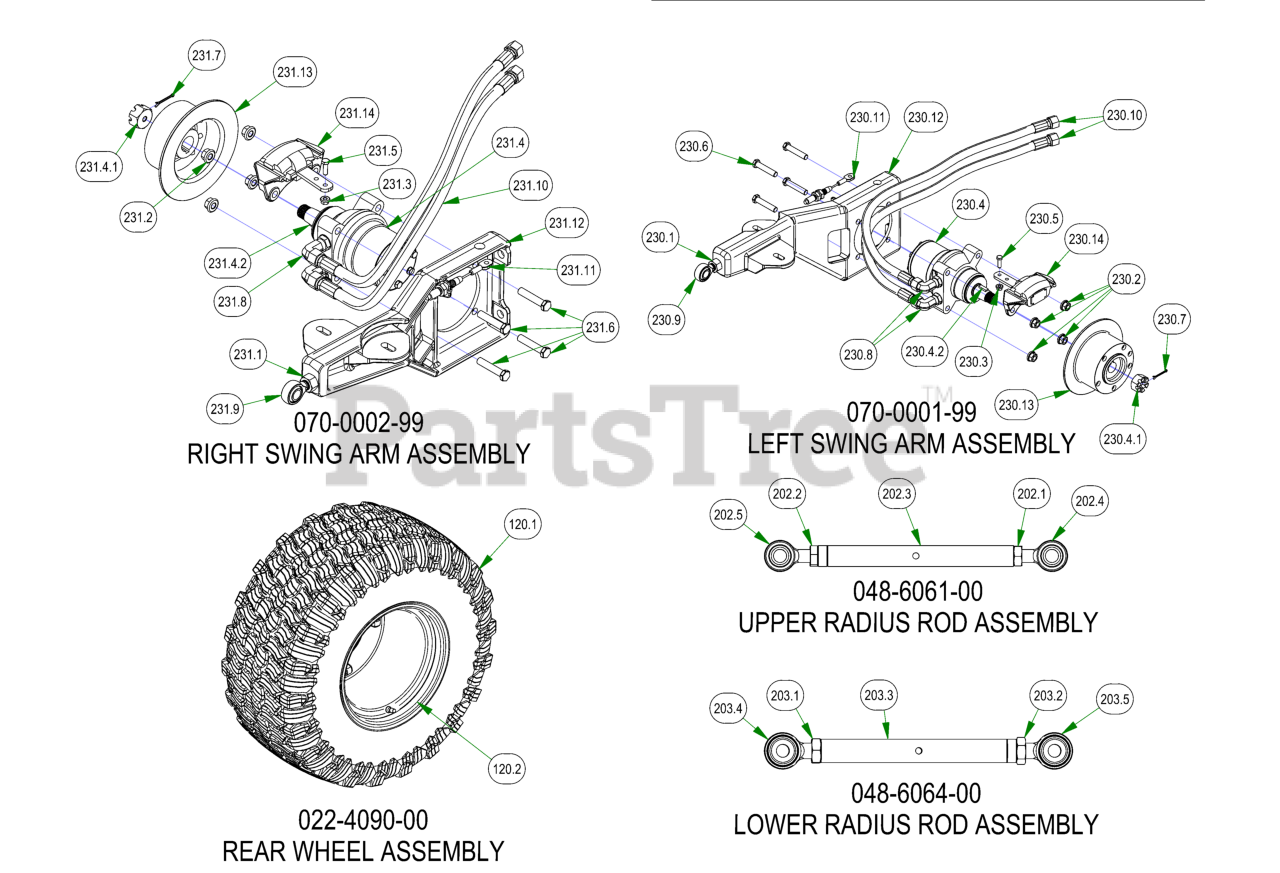

REAR SUSPENSION SUBASSEMBLIES Parts Diagram

  • Title

120

Bad Boy 022-4090-00

2019 Assy-26x12-12 Reaper Turf -10.5" Rim

$389.99

$

In Stock, only 2 left!

0

202

Bad Boy 048-6061-00

2019 Suspension Radius Rod Assembly

$62.99

$

Usually ships in 4-7 days

0

203

Bad Boy 048-6064-00

2019 Suspension Radius Rod Assembly

$83.99

$

In Stock, only 2 left!

0

230

Bad Boy 070-0001-99

2019 Renegade Trailing LH Arm Assy

$

$

Not available

231

Bad Boy 070-0002-99

2019 Renegade Trailing RH Arm Assy

$

$

Not available

120.1

Bad Boy 022-4085-00

2019 26x12-12 Reaper Turf Tire

$250.99

$

Usually ships in 4-7 days

0

120.2

Bad Boy 022-4086-00

2019 10.5" Wheel

$206.99

$

Usually ships in 4-7 days

0

202.1

Bad Boy 013-0019-00

5/8-11 HEX JAM NUT ZINC

$4.99

$

Usually ships in 4-7 days

0

202.2

Bad Boy 013-0020-00

NUT, 5/8-18LH

$4.99

$

Usually ships in 4-7 days

0

202.3

Bad Boy 048-0001-00

2019 Suspension Link Body

$30.99

$

Usually ships in 4-7 days

0

202.4

Bad Boy 048-6062-00

2019 RH 5/8" Heim

$45.99

$

In Stock, only 3 left!

0

202.5

Bad Boy 048-6063-00

2019 LH 5/8" Heim

$45.99

$

In Stock, only 3 left!

0

203.1

Bad Boy 013-0027-00

3/4-16 HEX JAM NUT ZINC

$

$

Currently unavailable

203.2

Bad Boy 013-0028-00

3/4-16 LH HEX JAM NUT ZINC

$2.49

$

Usually ships in 4-7 days

0

203.3

Bad Boy 048-0002-00

Rear Radius Rod, 3/4 Body

$

$

Currently unavailable

203.4

Bad Boy 048-6065-00

3/4-16 x 5/8 RH Heim

$45.99

$

Usually ships in 4-7 days

0

203.5

Bad Boy 048-6066-00

3/4-16 x 5/8 LH Heim

$45.99

$

Usually ships in 4-7 days

0

230.1

Bad Boy 013-0022-00

3/4"-16 Fine Full Nut

$7.99

$

In Stock, only 2 left!

0

230.2

Bad Boy 013-6040-00

1/2-13 Gr 8 Centerlock Flange Nut

$1.49

$

In Stock, only 3 left!

0

230.3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

230.4

Bad Boy 015-4601-00

18cc Parker Wheel Motor- Left

$683.99

$

Usually ships in 4-7 days

0

230.5

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

230.6

Bad Boy 018-6041-00

1/2-13 x 2.75 Gr. 8 Hex Head Bolt

$3.49

$

In Stock, only 3 left!

0

230.7

Bad Boy 020-7022-00

1/8 X 1-1/2 COTTER PIN ZINC

$0.99

$

In Stock, only 2 left!

0

230.8

Bad Boy 024-2065-00

2019 Rouge/Renegade Wheel Motor 90* Fitting #6801-10L

$19.99

$

Usually ships in 4-7 days

0

230.9

Bad Boy 048-7001-00

3/4-16 RH Male Rod End

$30.99

$

In Stock, Qty 5

0

231.1

Bad Boy 013-0022-00

3/4"-16 Fine Full Nut

$7.99

$

In Stock, only 2 left!

0

231.2

Bad Boy 013-6040-00

1/2-13 Gr 8 Centerlock Flange Nut

$1.49

$

In Stock, only 3 left!

0

231.3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

231.4

Bad Boy 015-4600-00

18cc Parker Wheel Motor- Right

$683.99

$

Usually ships in 4-7 days

0

231.5

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 1 left!

0

231.6

Bad Boy 018-6041-00

1/2-13 x 2.75 Gr. 8 Hex Head Bolt

$3.49

$

In Stock, only 3 left!

0

231.7

Bad Boy 020-7022-00

1/8 X 1-1/2 COTTER PIN ZINC

$0.99

$

In Stock, only 2 left!

0

231.8

Bad Boy 024-2065-00

2019 Rouge/Renegade Wheel Motor 90* Fitting #6801-10L

$19.99

$

Usually ships in 4-7 days

0

231.9

Bad Boy 048-7001-00

3/4-16 RH Male Rod End

$30.99

$

In Stock, Qty 5

0

230.10

Bad Boy 051-6007-00

2019 Renegade Hydro Hose

$58.99

$

In Stock, only 2 left!

0

230.11

Bad Boy 064-8054-00

2019 Short Brake Cable-Suspension Models

$54.99

$

Usually ships in 4-7 days

0

230.12

Bad Boy 070-0001-00

2019 Left Trailing Arm

$332.99

$

Usually ships in 4-7 days

0

230.13

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

230.14

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

0

230.4.1

Bad Boy 013-7050-00

1" Castle Nut for HydroGear Wheel Motor

$19.99

$

Usually ships in 4-7 days

0

230.4.2

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0

231.10

Bad Boy 051-6007-00

2019 Renegade Hydro Hose

$58.99

$

In Stock, only 2 left!

0

231.11

Bad Boy 064-9002-00

2019 Long Brake Cable-Renegade, Rogue

$54.99

$

Usually ships in 4-7 days

0

231.12

Bad Boy 070-0002-00

2019 Right Trailing Arm

$250.99

$

Usually ships in 4-7 days

0

231.13

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

231.14

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

0

231.4.1

Bad Boy 013-7050-00

1" Castle Nut for HydroGear Wheel Motor

$19.99

$

Usually ships in 4-7 days

0

231.4.2

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0
