Renegade Diesel - Bad Boy Zero-Turn Mower (2023) ENGINE BAY Parts Diagram

Zero-Turn Mower

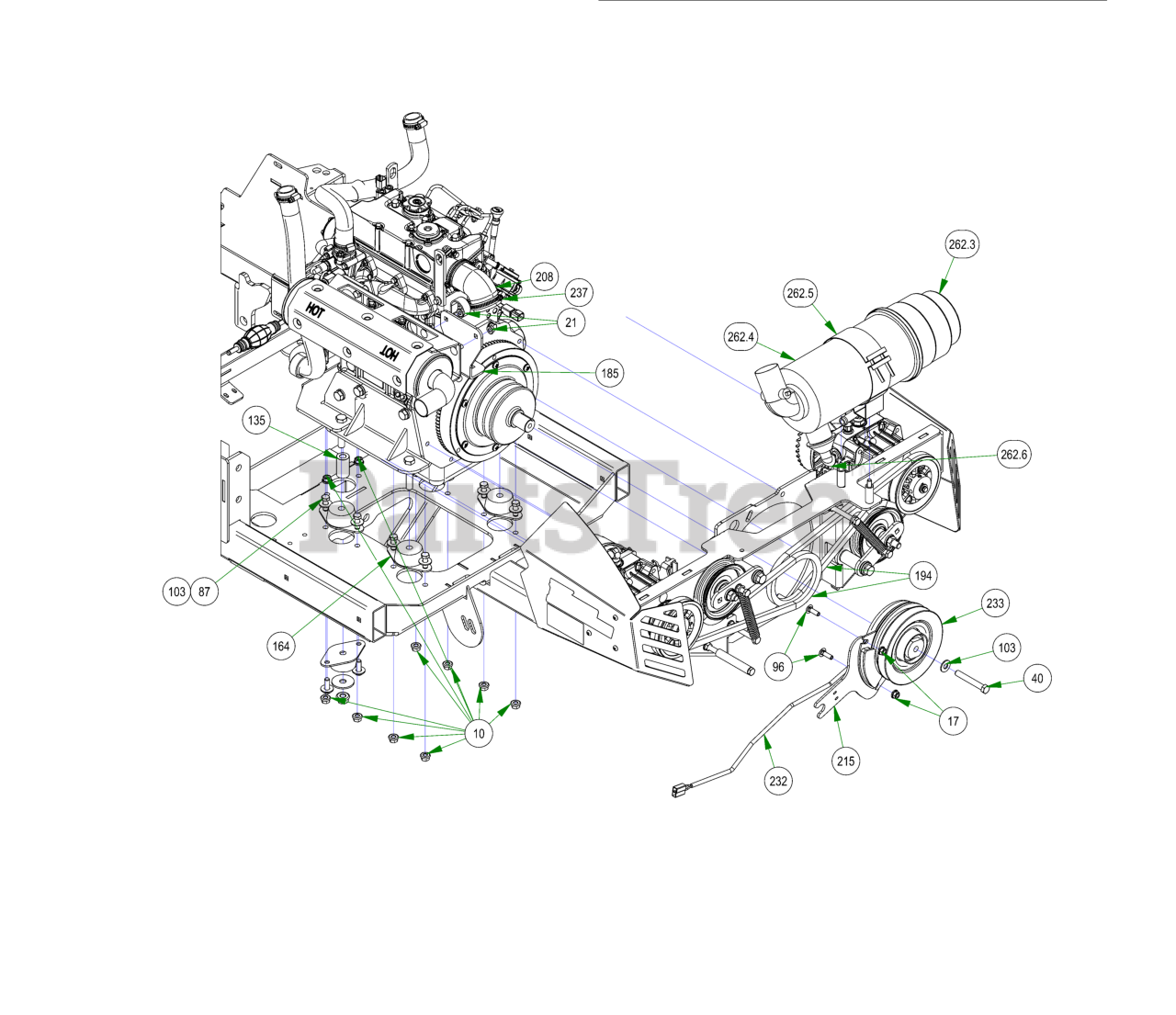

ENGINE BAY Parts Diagram

  • Title

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

21

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

40

Bad Boy 018-0007-21

7/16-20x3” Hex Bolt GR 8 W/ Patch

$3.49

$

Usually ships in 4-7 days

0

44

Bad Boy 018-0023-00

5/16-18 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$

$

Not available

74

Bad Boy 018-5019-00

1/2-13 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.99

$

In Stock, Qty 5

0

87

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

98

Bad Boy 018-9002-00

M12-1.25 X 30MM DIN 961 HEX TAP BOLT (CL 8.8) ZINC

$

$

Not available

103

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

128

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE SPACER ZINC

$7.99

$

Usually ships in 4-7 days

0

135

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 1 left!

0

164

Bad Boy 032-4050-00

Rubber Compression Mount

$81.99

$

Usually ships in 4-7 days

0

185

Bad Boy 039-1025-00

2019 Diesel Muffler Bracket

$

$

Currently unavailable

194

Bad Boy 041-8001-00

2020 Renegade Pump Belt, 42.99"

$85.99

$

In Stock, Qty 9

0

208

Bad Boy 051-3004-00

2019 Diesel Air intake Hose

$15.99

$

Usually ships in 4-7 days

0

215

Bad Boy 057-5919-00

2019 Outlaw Renegade Clutch Bracket

$30.99

$

Usually ships in 4-7 days

0

232

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

233

Bad Boy 070-5040-00

Clutch for Diesel/Vanguard

$454.99

$

In Stock, only 3 left!

0

237

Bad Boy 072-2002-00

2-1/2" Hose Clamp

$12.99

$

Usually ships in 4-7 days

0

262

Bad Boy 088-1010-50

Enginaire Canister VLR-Complet

$262.99

$

Usually ships in 4-7 days

0

168.1

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 13

0

168.2

Bad Boy 030-0076-00

5/16-24 X 1/2 SOCKET SET SCREW KNURLED CUP POINT

$0.99

$

Usually ships in 4-7 days

0

262.1

Bad Boy 063-2050-00

Diesel Air Filter- Outer

$55.99

$

In Stock, Qty 6

0

262.2

Bad Boy 063-2060-00

Diesel Air Filter- Inner

$45.99

$

In Stock, Qty 5

0

262.3

Bad Boy 088-1017-00

Enginaire Air canister cap

$80.99

$

In Stock, only 2 left!

0

262.4

Bad Boy 088-1018-00

Canister for All Diesel Models

$90.99

$

Usually ships in 4-7 days

0

262.5

Bad Boy 088-1019-00

Mounting Bracket For Diesel Air Filter

$36.99

$

Usually ships in 4-7 days

0

262.6

Bad Boy 088-1020-00

Debris Plug-Enginaire Filter

$15.99

$

Usually ships in 4-7 days

0
