Renegade Diesel - Bad Boy Zero-Turn Mower (2022) SEAT & BRAKE Parts Diagram

Zero-Turn Mower

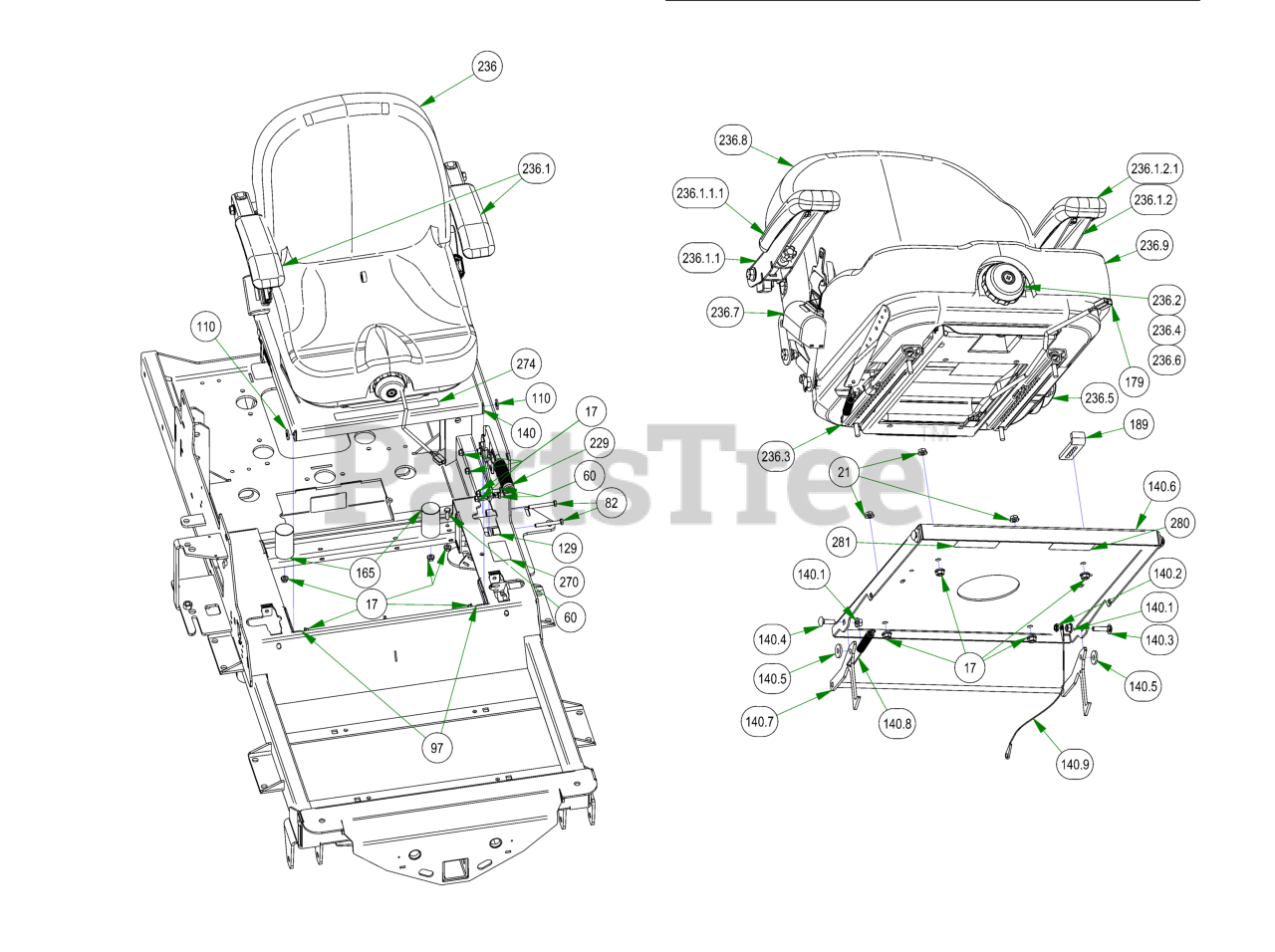

SEAT & BRAKE Parts Diagram

  • Title

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

21

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

60

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

82

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

97

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

110

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

129

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE SPACER ZINC

$7.99

$

Usually ships in 4-7 days

0

140

Bad Boy 026-2019-21

R-SERIES SEAT PLATE ASSEMBLY

$136.99

$

Usually ships in 4-7 days

0

165

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

$24.99

$

Usually ships in 4-7 days

0

179

Bad Boy 036-5300-00

Seat Switch Adapter

$16.99

$

Usually ships in 4-7 days

0

189

Bad Boy 039-2156-00

Seat Stop

$15.99

$

Usually ships in 4-7 days

0

229

Bad Boy 069-0001-00

2019 Brake Handle Assembly

$151.99

$

In Stock, only 2 left!

0

235

Bad Boy 070-5376-22

2022 Horizontal Diesel Frame

$

$

Not available

236

Bad Boy 071-6065-22

2022 Suspension Seat w/Seatbelt

$946.99

$

Usually ships in 4-7 days

0

270

Bad Boy 091-1101-18

2018 Out/XP/Diesel Brake Decal

$6.49

$

Usually ships in 4-7 days

0

274

Bad Boy 091-3150-00

Outlaw Warning Decal

$11.99

$

In Stock, only 2 left!

0

280

Bad Boy 091-4038-00

Control Adj. Control Rod Decal

$6.49

$

Usually ships in 4-7 days

0

281

Bad Boy 091-4039-00

Control Adj. Control Dampener Decal

$6.49

$

Usually ships in 4-7 days

0

140.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

140.2

Bad Boy 013-9005-00

5/16-18 NYLON INSERT JAM LOCKNUT ZINC

$3.49

$

Usually ships in 4-7 days

0

140.3

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

140.4

Bad Boy 018-8065-00

5/16-18 X 1 CARRIAGE BOLT (GR.8) ZINC

$0.99

$

In Stock, Qty 7

0

140.5

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

140.6

Bad Boy 026-2019-00

R-SERIES SEAT PLATE

$105.99

$

Usually ships in 4-7 days

0

140.7

Bad Boy 028-0090-00

Seat Latch Rod Assembly

$41.99

$

Usually ships in 4-7 days

0

140.8

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

140.9

Bad Boy 064-8081-00

Seat Cable

$16.99

$

In Stock, only 1 left!

0

236.1

Bad Boy 071-6065-04

Set of Armrests-SS Front Adj

$156.99

$

Usually ships in 4-7 days

0

236.2

Bad Boy 071-6065-05

Weight Adjust Indicator Knob Assy

$34.99

$

Usually ships in 4-7 days

0

236.3

Bad Boy 071-6065-06

4" Single Locking Track Kit

$105.99

$

Usually ships in 4-7 days

0

236.4

Bad Boy 071-6065-07

Delta Plunger Switch - N.O.

$22.99

$

Usually ships in 4-7 days

0

236.5

Bad Boy 071-6065-10

Recliner Adjustment Knob-New

$34.99

$

Usually ships in 4-7 days

0

236.6

Bad Boy 071-6065-13

Bellows w/Hardware

$68.99

$

Usually ships in 4-7 days

0

236.7

Bad Boy 071-6065-14

2" Retractable Belt Kit w/Spacers

$

$

Not available

236.8

Bad Boy 071-6065-15

Back Cover for I3M - Recl - Logos

$227.99

$

Usually ships in 4-7 days

0

236.9

Bad Boy 071-6065-16

Cushion Cover Kit for I3M-Logo

$175.99

$

Usually ships in 4-7 days

0

236.1.1

Bad Boy 071-6065-11

RH Armrest-Selfskin Front Adj

$136.99

$

Usually ships in 4-7 days

0

236.1.1.1

Bad Boy 071-6065-03

Black Selfskin-Arm Pad Only

$35.99

$

Usually ships in 4-7 days

0

236.1.2

Bad Boy 071-6065-12

LH Armrest-Selfskin Front Adj

$136.99

$

Usually ships in 4-7 days

0

236.1.2.1

Bad Boy 071-6065-03

Black Selfskin-Arm Pad Only

$35.99

$

Usually ships in 4-7 days

0
