Renegade Diesel - Bad Boy Zero-Turn Mower (2022) PUMP PLATE SUBS Parts Diagram

Zero-Turn Mower

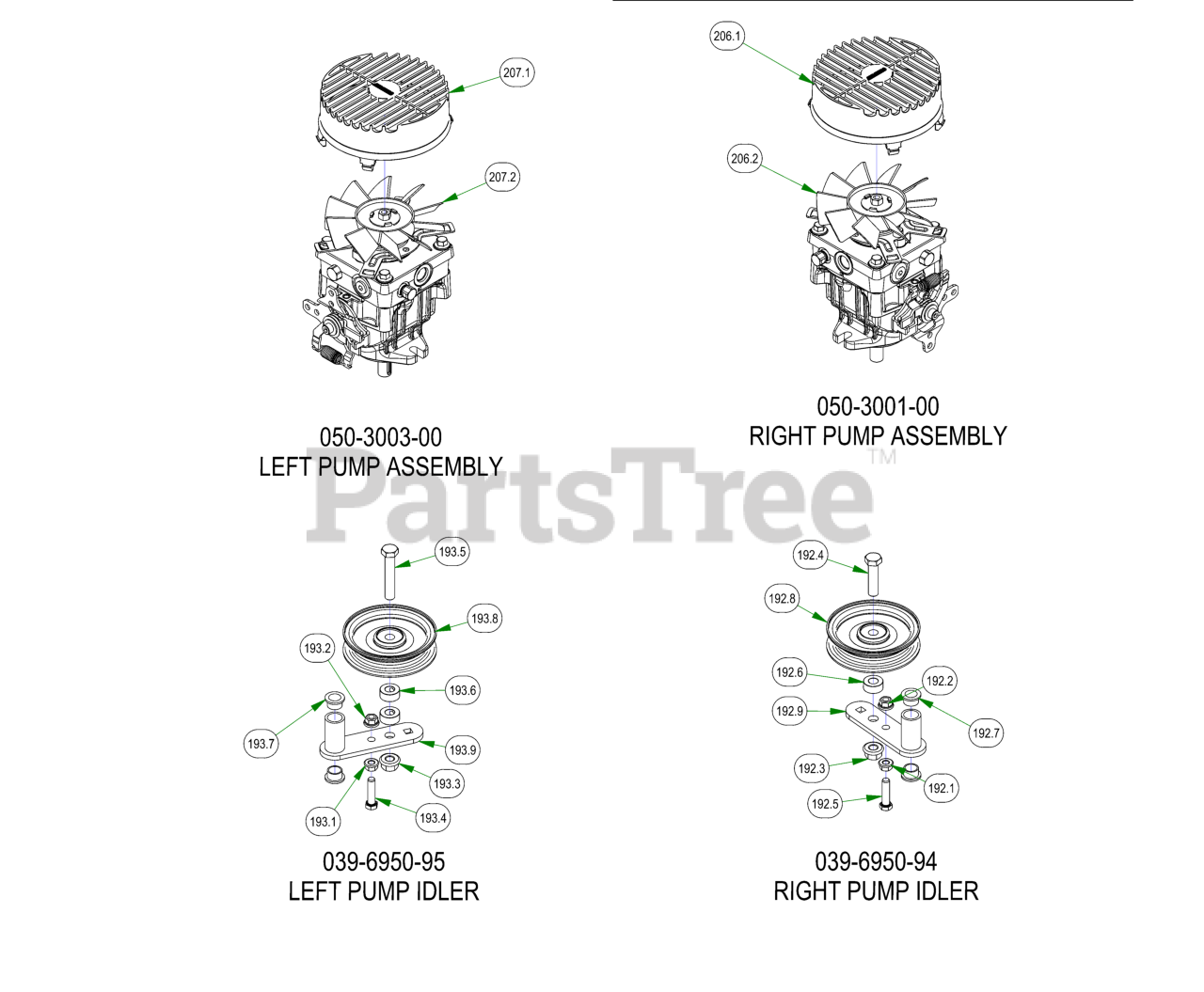

PUMP PLATE SUBS Parts Diagram

  • Title

44

Bad Boy 018-0023-00

5/16-18 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$

$

Not available

129

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE

$7.99

$

Usually ships in 4-7 days

0

192

Bad Boy 039-6950-94

2020 Diesel Pump Tensioner Assembly LH

$90.99

$

Usually ships in 4-7 days

0

193

Bad Boy 039-6950-95

2020 Diesel Pump Tensioner Assembly RH

$90.99

$

Usually ships in 4-7 days

0

206

Bad Boy 050-3001-00

2019 Rogue/Renegade Left Pump 16cc

$797.99

$

Usually ships in 4-7 days

0

207

Bad Boy 050-3003-00

2019 Outlaw Renegade Right Pump 16cc

$740.99

$

Usually ships in 4-7 days

0

171.1

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 13

0

171.2

Bad Boy 030-0076-00

5/16-24 X 1/2 SOCKET SET SCREW KNURLED CUP POINT

$0.99

$

Usually ships in 4-7 days

0

192.1

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

192.2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

192.3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

192.4

Bad Boy 018-0022-00

1/2-13 X 2 HEX CAP SCREW (GR.8) ZINC YELLOW

$3.49

$

Usually ships in 4-7 days

0

192.5

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

192.6

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

192.7

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK

$4.99

$

In Stock, Qty 11

0

192.8

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

192.9

Bad Boy 039-6950-00

Renegade - Gas Pump Idler - Weldment

$

$

Not available

193.1

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

193.2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

193.3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

193.4

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

193.5

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

193.6

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

193.7

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK

$4.99

$

In Stock, Qty 11

0

193.8

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

193.9

Bad Boy 039-6950-00

Renegade - Gas Pump Idler - Weldment

$

$

Not available

206.1

Bad Boy 014-5600-00

Fan Guard 6" - Fits Wheel

$42.99

$

Usually ships in 4-7 days

0

206.2

Bad Boy 015-9999-00

Hydro Fan - Light/Pup/Outlaw XP

$30.99

$

In Stock, Qty 5

0

207.1

Bad Boy 014-5600-00

Fan Guard 6" - Fits Wheel

$42.99

$

Usually ships in 4-7 days

0

207.2

Bad Boy 015-9999-00

Hydro Fan - Light/Pup/Outlaw XP

$30.99

$

In Stock, Qty 5

0
