Renegade Diesel - Bad Boy Zero-Turn Mower (2022) FLOORBOARD, ROPS, & RADIATOR Parts Diagram

Zero-Turn Mower

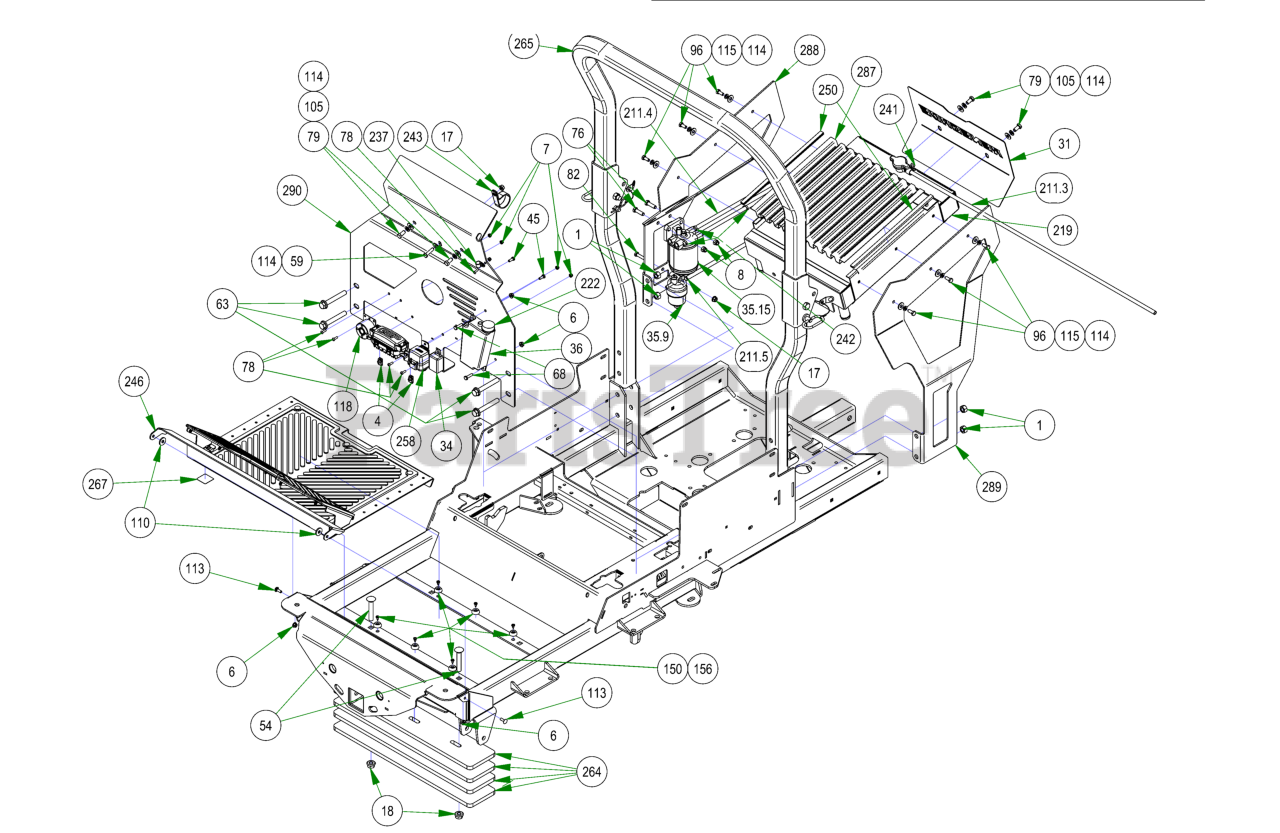

FLOORBOARD, ROPS, & RADIATOR Parts Diagram

  • Title

1

Bad Boy 013-0005-00

1/2-13 HEX 2-WAY REVERSIBLE CENTER LOCKNUT Grade B ZINC

$3.49

$

Usually ships in 4-7 days

0

4

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

7

Bad Boy 013-5019-00

10-24 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

18

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

31

Bad Boy 014-5065-22

2019 Diesel Upper Rear Cover - Black

$

$

Not available

34

Bad Boy 015-0015-00

Auto Shut Down for Cat Diesels

$797.99

$

Usually ships in 4-7 days

0

36

Bad Boy 015-0111-00

overflow Reservoir- 27Kaw & 28/35Hp Diesel

$79.99

$

In Stock, only 2 left!

0

45

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

54

Bad Boy 018-0067-00

1/2-13 x 3 Carriage Bolt Grade 5

$

$

Currently unavailable

59

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

63

Bad Boy 018-2018-00

1/2-13 X 3-1/2 HEX FLANGE BOLT (GR.8) ZINC

$3.99

$

In Stock, Qty 6

0

68

Bad Boy 018-4007-00

1/4-20 X 1 HEX CAP SCREW (GR.5) ZINC

$1.49

$

Usually ships in 4-7 days

0

76

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

78

Bad Boy 018-5200-00

10-24 X 5/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS STEEL

$0.99

$

In Stock, Qty 5

0

79

Bad Boy 018-5250-00

3/8-16 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

82

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

96

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

105

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

110

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

113

Bad Boy 019-8040-00

1/4-20 X 3/4 CARRIAGE BOLT (GR.5) ZINC

$1.99

$

In Stock, only 3 left!

0

114

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

115

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

118

Bad Boy 021-8059-00

Heat Warning Piezo Buzzer

$38.99

$

Usually ships in 4-7 days

0

150

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

156

Bad Boy 030-3050-00

10-16 X 1/2 PAN PHIL TEK/3 CLIMASEAL OR ACF-SILVER COATED

$0.99

$

In Stock, Qty 9

0

211

Bad Boy 051-7080-22

2022 Renegade Diesel Fuel Line Assembly

$

$

Currently unavailable

219

Bad Boy 061-5001-98

2019 Diesel Radiator Kit

$

$

Not available

222

Bad Boy 066-8075-00

Reservoir Tank Cap-Overflow

$6.99

$

Usually ships in 4-7 days

0

235

Bad Boy 070-5376-22

2022 Horizontal Diesel Frame

$

$

Not available

237

Bad Boy 072-0001-00

3/8 Cable Clamp-Black Nylon

$

$

Currently unavailable

241

Bad Boy 072-8067-00

5/8 Hose Clamp

$2.49

$

Usually ships in 4-7 days

0

242

Bad Boy 072-8076-00

2 EAR CLAMP 12.5mm-15mm

$2.49

$

Usually ships in 4-7 days

0

243

Bad Boy 072-8090-00

Diesel Clamp 1 3/4" Vinyl

$3.99

$

Usually ships in 4-7 days

0

246

Bad Boy 079-3155-20

R-Series Floorboard Assembly

$

$

Currently unavailable

250

Bad Boy 084-4015-00

Rubber Trim

$11.99

$

Usually ships in 4-7 days

0

258

Bad Boy 086-0247-20

2022 Renegade Diesel Wiring Harness

$580.99

$

Usually ships in 4-7 days

0

264

Bad Boy 088-1999-RW

2019 Outlaw Counter Weight

$

$

Currently unavailable

265

Bad Boy 089-0006-00

2019 2X2 Folding ROPS

$497.99

$

Usually ships in 4-7 days

0

267

Bad Boy 091-0020-22

Patent Decal (Anti-Wobble)

$1.49

$

Usually ships in 4-7 days

0

287

Bad Boy 094-5088-00

Radiator Screen Diesel

$148.99

$

Usually ships in 4-7 days

0

288

Bad Boy 201-8026-00

2019 Diesel Radiator Mount - Right

$45.99

$

Usually ships in 4-7 days

0

289

Bad Boy 201-8027-00

2019 Diesel Radiator Mount - Left

$46.99

$

Usually ships in 4-7 days

0

290

Bad Boy 201-8028-00

2022 Diesel Radiator Mount

$

$

Not available

35.9

Bad Boy 015-0097-07

FUEL PRE-FILTER

$34.99

$

Usually ships in 4-7 days

0

211.3

Bad Boy 051-8069-00

5/16 Clear Hose

$3.49

$

Usually ships in 4-7 days

0

211.4

Bad Boy 051-8075-00

5/16" fuel line hose

$7.99

$

Usually ships in 4-7 days

0

211.5

Bad Boy 072-8068-00

5/16 Fuel Line Clamp

$3.99

$

Usually ships in 4-7 days

0

35.15

Bad Boy 063-2011-01

Fuel Filter

$28.99

$

In Stock, only 2 left!

0
