Renegade Diesel - Bad Boy Zero-Turn Mower (2022) FLOORBOARD & RADIATOR Parts Diagram

Zero-Turn Mower

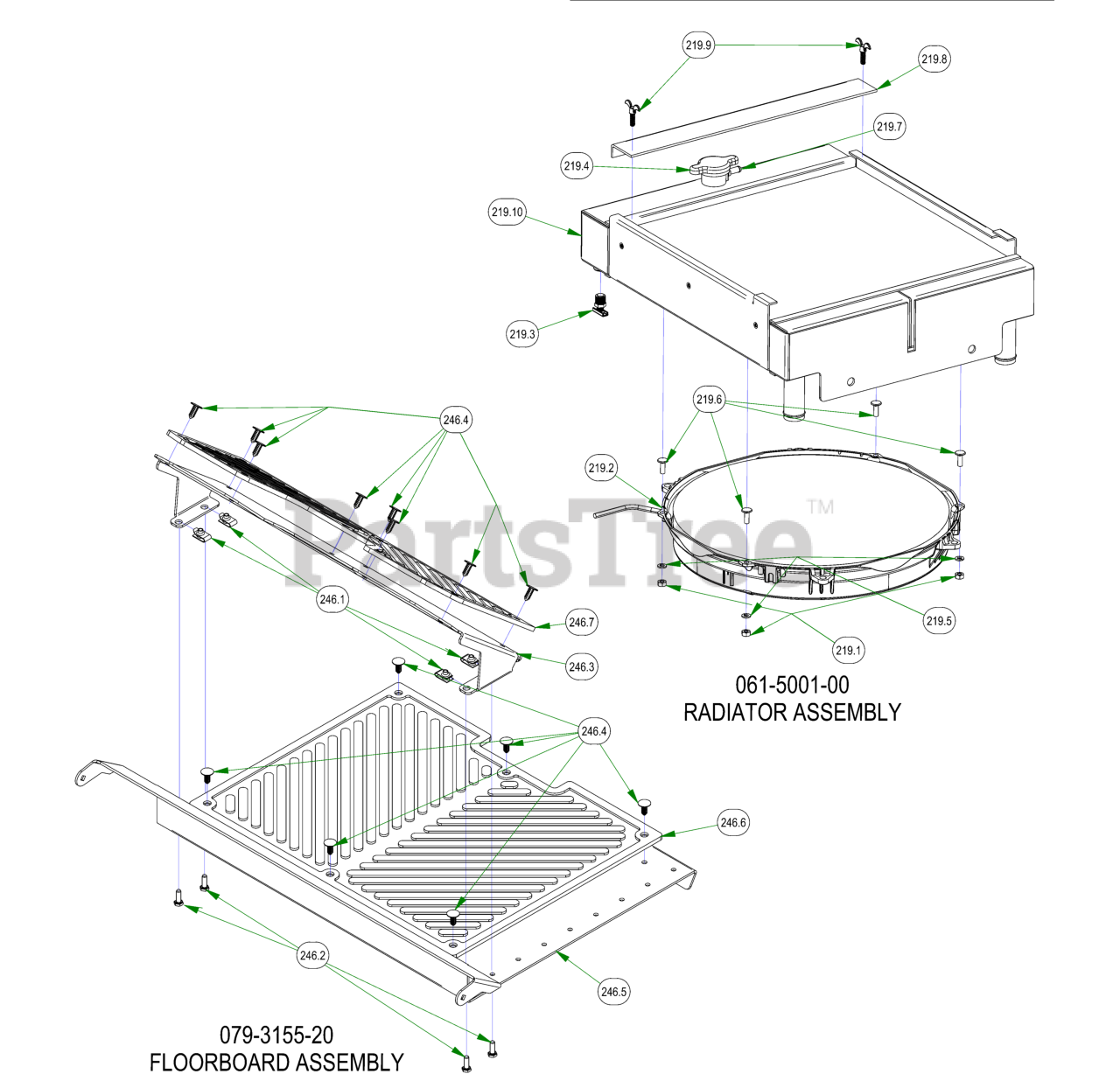

FLOORBOARD & RADIATOR Parts Diagram

  • Title

219

Bad Boy 061-5001-98

2019 Diesel Radiator Kit

$

$

Not available

246

Bad Boy 079-3155-20

R-Series Floorboard Assembly

$

$

Currently unavailable

219.1

Bad Boy 013-8039-00

1/4-20 Hex Nut

$0.99

$

Usually ships in 4-7 days

0

219.2

Bad Boy 014-3005-00

Electric Fan for 2019 Diesel Radiator

$797.99

$

Usually ships in 4-7 days

0

219.3

Bad Boy 015-0098-00

1/4 NPT Drain Plug

$9.49

$

Usually ships in 4-7 days

0

219.4

Bad Boy 015-0104-00

radiator cap

$33.99

$

Usually ships in 4-7 days

0

219.5

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, Qty 6

0

219.6

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 3 left!

0

219.7

Bad Boy 024-0015-00

1/4 Barb to 3/16 NPT Overflow Fitting

$

$

Currently unavailable

219.8

Bad Boy 026-2008-00

Screen Rentention Plate for 2019 Diesel Radiator

$

$

Not available

219.9

Bad Boy 030-0090-00

1/4-20 x 3/4 Thumb Screw

$7.99

$

Usually ships in 4-7 days

0

246.1

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

246.2

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

246.3

Bad Boy 026-2230-00

OUTLAW ADJUSTABLE FOOT PLATE-ORANGE

$75.99

$

Usually ships in 4-7 days

0

246.4

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

246.5

Bad Boy 079-3155-00

2019 Outlaw Floorboard

$125.99

$

Usually ships in 4-7 days

0

246.6

Bad Boy 081-0050-00

MAT (FLOOR)

$83.99

$

Usually ships in 4-7 days

0

246.7

Bad Boy 081-0051-00

MAT (FOOT PLATE)

$83.99

$

Usually ships in 4-7 days

0

219.10

Bad Boy 061-5001-00

2019 Diesel Radiator

$1595.99

$

Usually ships in 4-7 days

0
