Renegade Diesel - Bad Boy Zero-Turn Mower (2022) ENGINE ASSEMBLY Parts Diagram

Zero-Turn Mower

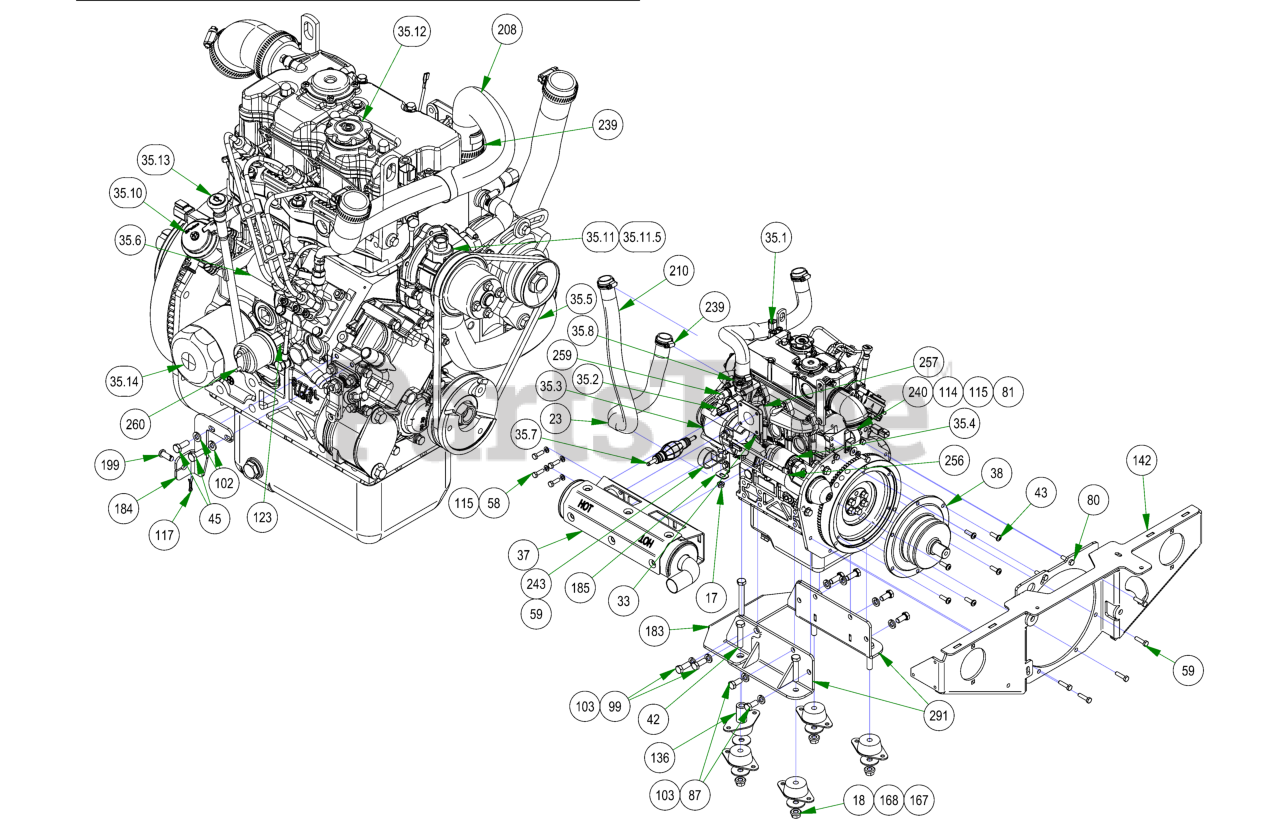

ENGINE ASSEMBLY Parts Diagram

  • Title

23

Bad Boy 014-1053-00

2019 Plastic Mesh Hose Loom

$

$

Not available

33

Bad Boy 015-0010-50

Diesel Muffler Gasket

$18.99

$

Usually ships in 4-7 days

0

35

Bad Boy 015-0097-00

24.7HP Perkins Engine, 403J-11

$

$

Not available

37

Bad Boy 015-1019-00

2019 Renegade 1100cc Diesel Muffler

$200.99

$

Usually ships in 4-7 days

0

38

Bad Boy 017-3001-00

2019 Diesel Stub Shaft Double V

$172.99

$

Usually ships in 4-7 days

0

42

Bad Boy 018-0015-00

1/2-13 X 2-1/2 HEX CAP SCREW GR 5 ZINC

$3.49

$

Usually ships in 4-7 days

0

43

Bad Boy 018-0016-00

5/16-18 X 1 BUTTON TORX CAP SCREW ZINC

$3.49

$

Usually ships in 4-7 days

0

44

Bad Boy 018-0023-00

5/16-18 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$

$

Not available

58

Bad Boy 018-2001-00

M8-1.25 X 25MM DIN 933 HEX TAP BOLT (CL 10.9) ZINC

$0.99

$

Usually ships in 4-7 days

0

75

Bad Boy 018-5019-00

1/2-13 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.99

$

In Stock, Qty 6

0

80

Bad Boy 018-5320-00

M8-1.25 X 30MM DIN 933 HEX TAP BOLT (CL 10.9) ZINC

$1.49

$

Usually ships in 4-7 days

0

81

Bad Boy 018-5321-00

M8-1.25 X 20MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$1.99

$

Usually ships in 4-7 days

0

87

Bad Boy 018-6022-00

M12-1.25 X 25MM DIN 961 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

Usually ships in 4-7 days

0

99

Bad Boy 018-9002-00

M12-1.25 X 30MM DIN 961 HEX TAP BOLT (CL 8.8) ZINC

$

$

Not available

103

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, Qty 20+

0

114

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

115

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

117

Bad Boy 020-2000-00

3/32 X 1/2 COTTER PIN ZINC

$0.99

$

Usually ships in 4-7 days

0

123

Bad Boy 024-0070-00

8mm x 1/8 mpt Adaptor

$53.99

$

Usually ships in 4-7 days

0

129

Bad Boy 025-0027-00

.380 ID X .625 OD X 1.500 LGTH 2019 OUTLAW BRAKE HANDLE SPACER ZINC

$7.99

$

Usually ships in 4-7 days

0

132

Bad Boy 025-2001-00

ACS Spacer 3/4x3/8x1/4

$16.99

$

Usually ships in 4-7 days

0

136

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

168

Bad Boy 032-4051-00

.520 ID X 1.750 OD X .120 THICK FLAT WASHER ZINC

$18.99

$

Usually ships in 4-7 days

0

183

Bad Boy 039-0176-00

2022 Renegade Diesel Front Engine Mount

$

$

Currently unavailable

184

Bad Boy 039-1010-00

Throttle Bracket

$5.99

$

Usually ships in 4-7 days

0

185

Bad Boy 039-1015-00

Diesel Radiator Hose Clamp Bracket

$2.49

$

Usually ships in 4-7 days

0

199

Bad Boy 044-2006-00

1/4 X 5/8 CLEVIS PIN PLAIN

$0.99

$

Usually ships in 4-7 days

0

208

Bad Boy 051-3003-00

2019 Diesel Radiator Hose Upper

$52.99

$

Usually ships in 4-7 days

0

209

Bad Boy 051-3004-00

2019 Diesel Air intake Hose

$15.99

$

Usually ships in 4-7 days

0

210

Bad Boy 051-3005-00

2019 Diesel Radiator Hose Lower

$47.99

$

Usually ships in 4-7 days

0

239

Bad Boy 072-2003-00

1 1/8" Hose Clamp

$6.49

$

Usually ships in 4-7 days

0

240

Bad Boy 072-5000-00

Diesel Hydraulic Hose Clamp

$7.99

$

Usually ships in 4-7 days

0

256

Bad Boy 086-0003-00

Red Battery Cable Alternator to Starter Cable

$8.49

$

Usually ships in 4-7 days

0

257

Bad Boy 086-0009-00

2022 DIESEL JUMPER WIRE, WHITE, 14AWG

$

$

Currently unavailable

259

Bad Boy 086-7003-00

Coolant Temperature Sender

$33.99

$

Usually ships in 4-7 days

0

260

Bad Boy 086-7004-00

Oil Pressure Guage with Sender

$136.99

$

Usually ships in 4-7 days

0

284

Bad Boy 091-4064-00

Patent Decal (ROGUE/RENEGADE)

$5.99

$

Usually ships in 4-7 days

0

35.1

Bad Boy 015-0096-06

OIL PRESSURE SWITCH

$143.99

$

Usually ships in 4-7 days

0

35.2

Bad Boy 015-0096-07

COOLANT TEMPERATURE SWITCH

$242.99

$

Usually ships in 4-7 days

0

35.3

Bad Boy 015-0096-09

ALTERNATOR

$911.99

$

Usually ships in 4-7 days

0

35.4

Bad Boy 015-0097-01

STARTER

$

$

Not available

35.5

Bad Boy 015-0097-02

ALTERNATOR BELT

$34.99

$

Usually ships in 4-7 days

0

35.6

Bad Boy 015-0097-03

FUEL SHUTOFF SOLENOID

$269.99

$

Usually ships in 4-7 days

0

35.7

Bad Boy 015-0097-04

FUEL PRIMING BULB PUMP

$110.99

$

Usually ships in 4-7 days

0

35.8

Bad Boy 015-0097-06

THERMOSTAT GASKET

$22.99

$

Usually ships in 4-7 days

0

35.10

Bad Boy 015-0097-08

FUEL LIFT PUMP

$

$

Not available

35.11

Bad Boy 015-0097-09

WATER PUMP WITH GASKET

$284.99

$

Usually ships in 4-7 days

0

35.12

Bad Boy 015-0097-11

OIL FILLER CAP

$

$

Not available

35.13

Bad Boy 015-0097-12

OIL LEVEL DIPSTICK

$

$

Not available

35.14

Bad Boy 063-2010-01

OIL FILTER

$31.99

$

In Stock, only 3 left!

0

35.11.5

Bad Boy 015-0097-05

THERMOSTAT

$90.99

$

Usually ships in 4-7 days

0
