Renegade Diesel - Bad Boy Zero-Turn Mower (2022) DECK SUBASSEMBLIES Parts Diagram

Zero-Turn Mower

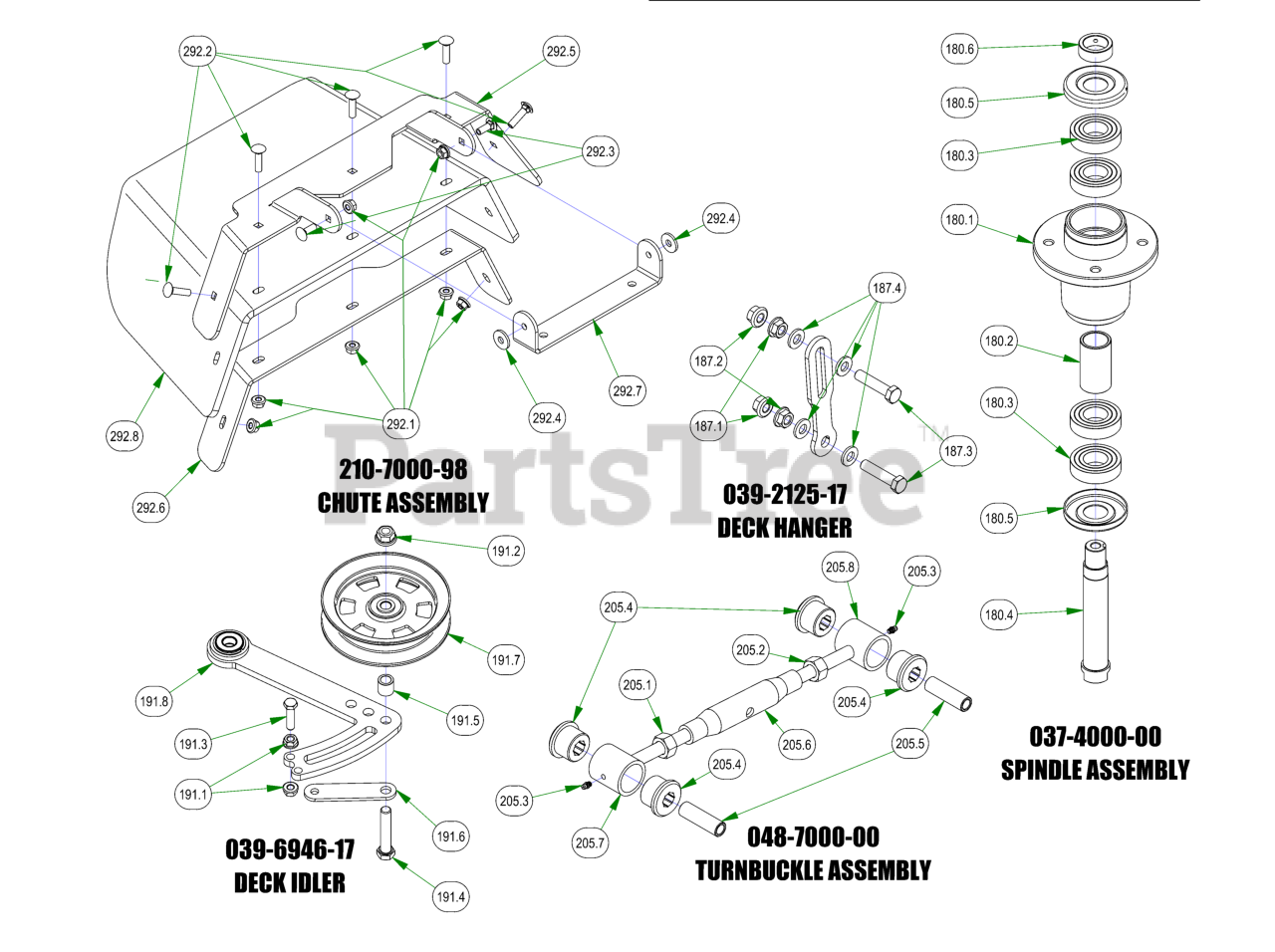

DECK SUBASSEMBLIES Parts Diagram

  • Title

180

Bad Boy 037-4000-00

OUTLAW SPINDLE ASSEMBLY

$332.99

$

In Stock, Qty 20+

0

187

Bad Boy 039-2125-17

Deck Hanger Assembly

$16.99

$

In Stock, only 2 left!

0

191

Bad Boy 039-6946-17

2019 Renegade Deck Idler

$83.99

$

Usually ships in 4-7 days

0

205

Bad Boy 048-7000-00

Turnbuckle

$

$

Not available

292

Bad Boy 210-7000-98

2019 Outlaw Gen2 Chute Assembly

$181.99

$

In Stock, only 2 left!

0

180.1

Bad Boy 037-4000-01

4000 Series Spindle Housing

$136.99

$

Usually ships in 0 days

0

180.2

Bad Boy 037-4002-00

4000 Series Spindle Spacer

$7.99

$

Usually ships in 4-7 days

0

180.3

Bad Boy 037-6023-00

Bearing - 6206

$

$

Not available

180.4

Bad Boy 037-6026-00

Spindle Shaft

$89.99

$

In Stock, Qty 12

0

180.5

Bad Boy 037-8002-00

Spindle Dust Cap

$12.99

$

In Stock, Qty 8

0

180.6

Bad Boy 037-9050-00

Locking Collar w/ 1/4"-20 Set Screw

$7.99

$

In Stock, Qty 6

0

187.1

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

187.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

187.3

Bad Boy 018-6037-00

1/2-13 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

187.4

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

187.5

Bad Boy 039-2125-00

Deck Hangar

$

$

Not available

191.1

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

191.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

191.3

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

191.4

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

191.5

Bad Boy 025-5203-00

.51 ID X .75 OD X .75 LGTH SOLID SPACER ZINC

$3.49

$

In Stock, Qty 17

0

191.6

Bad Boy 026-0167-00

Belt Tensioner Retainer Plate

$28.99

$

Usually ships in 4-7 days

0

191.7

Bad Boy 033-8050-00

5" Idler Pully

$37.99

$

In Stock, Qty 20+

0

191.8

Bad Boy 039-6946-00

2019 Deck Tensioner

$37.99

$

Usually ships in 4-7 days

0

205.1

Bad Boy 013-0007-00

11/16-12 Hex Nut-2015 Toplink

$3.49

$

In Stock, only 2 left!

0

205.2

Bad Boy 013-0008-00

11/16-12 Lefthand Hex Nut-Topl

$3.49

$

In Stock, only 2 left!

0

205.3

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

205.4

Bad Boy 032-2000-00

Polyeurethane Bushing

$4.99

$

In Stock, Qty 11

0

205.5

Bad Boy 032-2001-00

Sleeve

$4.99

$

In Stock, only 4 left!

0

205.6

Bad Boy 048-7020-00

2015 Outlaw Toplink Body

$30.99

$

Usually ships in 4-7 days

0

205.7

Bad Boy 048-7021-00

2015 Outlaw Toplink RH End

$33.99

$

In Stock, Qty 5

0

205.8

Bad Boy 048-7022-00

2015 Outlaw Toplink LH End

$33.99

$

In Stock, Qty 5

0

292.1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

292.2

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

292.3

Bad Boy 018-8066-00

5/16-18 X 7/8 CARRIAGE BOLT ZINC

$1.99

$

In Stock, Qty 6

0

292.4

Bad Boy 019-6042-00

.360 ID X .983 OD X .120 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 11

0

292.5

Bad Boy 039-4893-00

2019 Upper Chute Bracket

$49.99

$

Usually ships in 4-7 days

0

292.6

Bad Boy 039-4894-00

2019 Lower Chute Bracket

$46.99

$

Usually ships in 4-7 days

0

292.7

Bad Boy 206-6018-00

2019 Chute Hanger

$10.99

$

Usually ships in 4-7 days

0

292.8

Bad Boy 210-6025-00

2019 Belted Chute with Logo

$66.99

$

In Stock, only 2 left!

0
