Renegade Diesel - Bad Boy Zero-Turn Mower (2022) DECK HEIGHT ACTUATORS Parts Diagram

Zero-Turn Mower

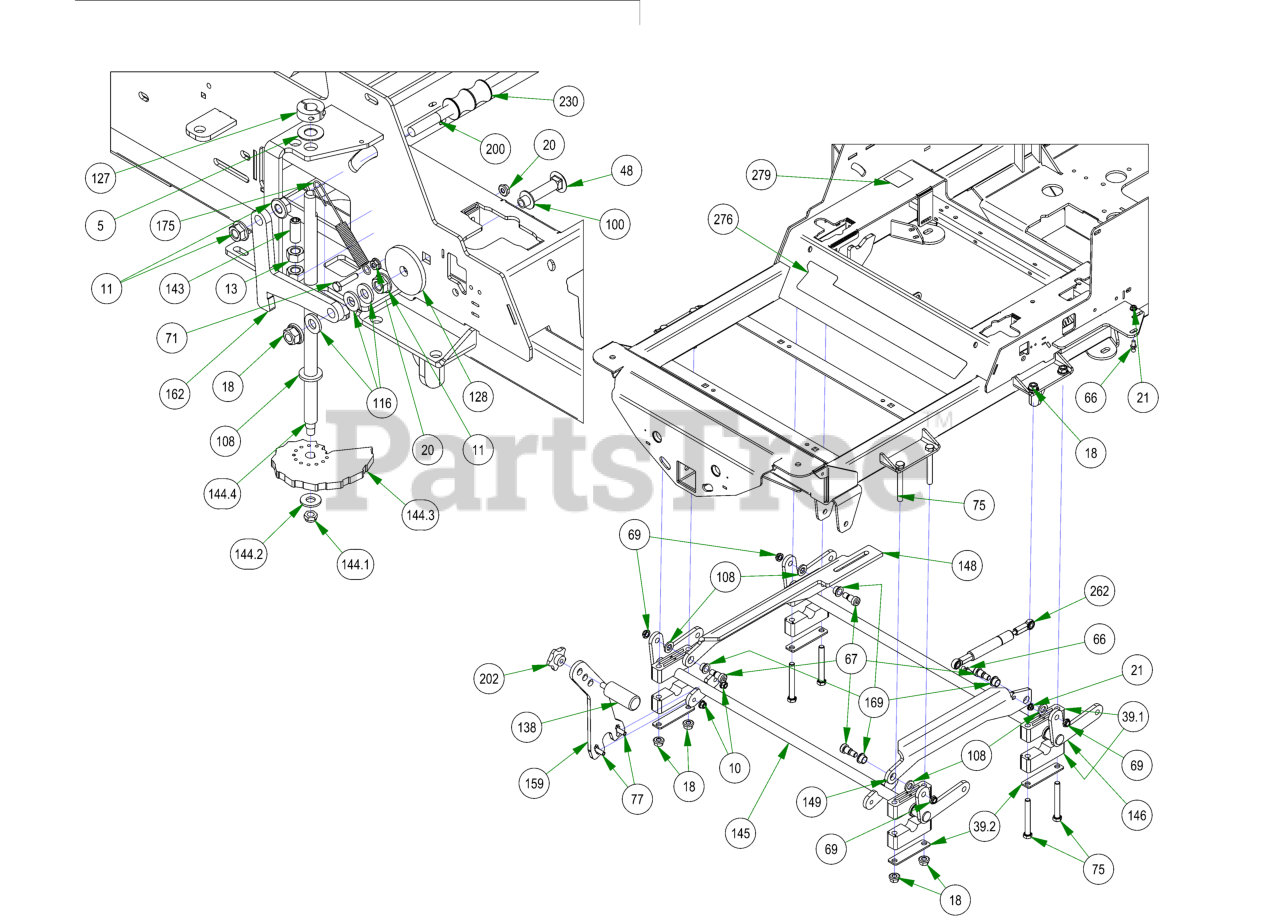

DECK HEIGHT ACTUATORS Parts Diagram

  • Title
5

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

13

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

18

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

20

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

21

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

39

Bad Boy 017-9075-00

Pillow Block Assembly

$41.99

$

Usually ships in 4-7 days

0

48

Bad Boy 018-0043-00

2 1/2 x 1/2 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

66

Bad Boy 018-2055-00

10mm Damper Ball Stud-XP Linkage

$2.49

$

In Stock, only 4 left!

0

67

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 11

0

69

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 11

0

71

Bad Boy 018-4702-00

1/4-20 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

75

Bad Boy 018-5019-00

1/2-13 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.99

$

In Stock, Qty 6

0

77

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

100

Bad Boy 019-0007-00

.517 SQ WDTH ID X .937 OD X .060 THICK F/W PHOS/OIL

$1.49

$

In Stock, only 2 left!

0

108

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

116

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

127

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

128

Bad Boy 025-0025-00

MZ Deck Idler Spacer

$7.99

$

In Stock, only 3 left!

0

138

Bad Boy 026-0026-00

Knurled Pedal

$41.99

$

In Stock, only 4 left!

0

143

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

144

Bad Boy 028-0015-19

2019 Outlaw Gen2 Deck Height Dial Rod Assy

$45.99

$

Usually ships in 4-7 days

0

145

Bad Boy 028-0026-00

2019 Outlaw Actuator - Front

$136.99

$

Usually ships in 4-7 days

0

146

Bad Boy 028-0027-00

2019 Outlaw Actuator - Rear

$87.99

$

Usually ships in 4-7 days

0

148

Bad Boy 028-6075-22

2019 Actuator Linkage – Right – Black

$46.99

$

Usually ships in 4-7 days

0

149

Bad Boy 028-6076-22

2019 Actuator Linkage - Left - Black

$

$

Not available

159

Bad Boy 031-0003-00

Foot Lift Upright Lever

$18.99

$

Usually ships in 4-7 days

0

162

Bad Boy 031-0125-00

2019 Outlaw Deck Travel Lock

$30.99

$

Usually ships in 4-7 days

0

169

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG

$4.99

$

In Stock, Qty 11

0

175

Bad Boy 034-1025-00

Brake Spring

$13.99

$

Usually ships in 4-7 days

0

200

Bad Boy 044-4000-00

Seat Bracket Pin

$7.99

$

Usually ships in 4-7 days

0

202

Bad Boy 045-6044-00

Foot Pedal Knob 1/2-13

$13.99

$

In Stock, Qty 8

0

230

Bad Boy 069-4011-00

Travel Lock Rubber Grip

$9.49

$

Usually ships in 4-7 days

0

235

Bad Boy 070-5376-22

2022 Horizontal Diesel Frame

$

$

Not available

262

Bad Boy 087-6100-00

250lb Gas Spring - 61" Deck

$83.99

$

In Stock, only 2 left!

0

276

Bad Boy 091-4015-00

2019 Renegade Cooler Cover Decal

$13.99

$

Usually ships in 4-7 days

0

279

Bad Boy 091-4037-00

2019 Deck Release Decal

$8.49

$

Usually ships in 4-7 days

0

39.1

Bad Boy 017-9000-00

Two Piece Pillow Block

$11.99

$

Usually ships in 4-7 days

0

39.2

Bad Boy 017-9025-00

Two Piece Pillow Block Strap

$34.99

$

Usually ships in 4-7 days

0

144.1

Bad Boy 018-4011-00

3/8-24 Nylon Insert jam locknut

$1.99

$

Usually ships in 4-7 days

0

144.2

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

144.3

Bad Boy 026-1101-00

2019 Deck Height Cam

$16.99

$

Usually ships in 4-7 days

0

144.4

Bad Boy 028-0015-00

2019 Outlaw Gen2 Dial Rod

$18.99

$

Usually ships in 4-7 days

0
