Renegade Diesel - Bad Boy Zero-Turn Mower (2021) REAR SWING ARMS Parts Diagram

Zero-Turn Mower

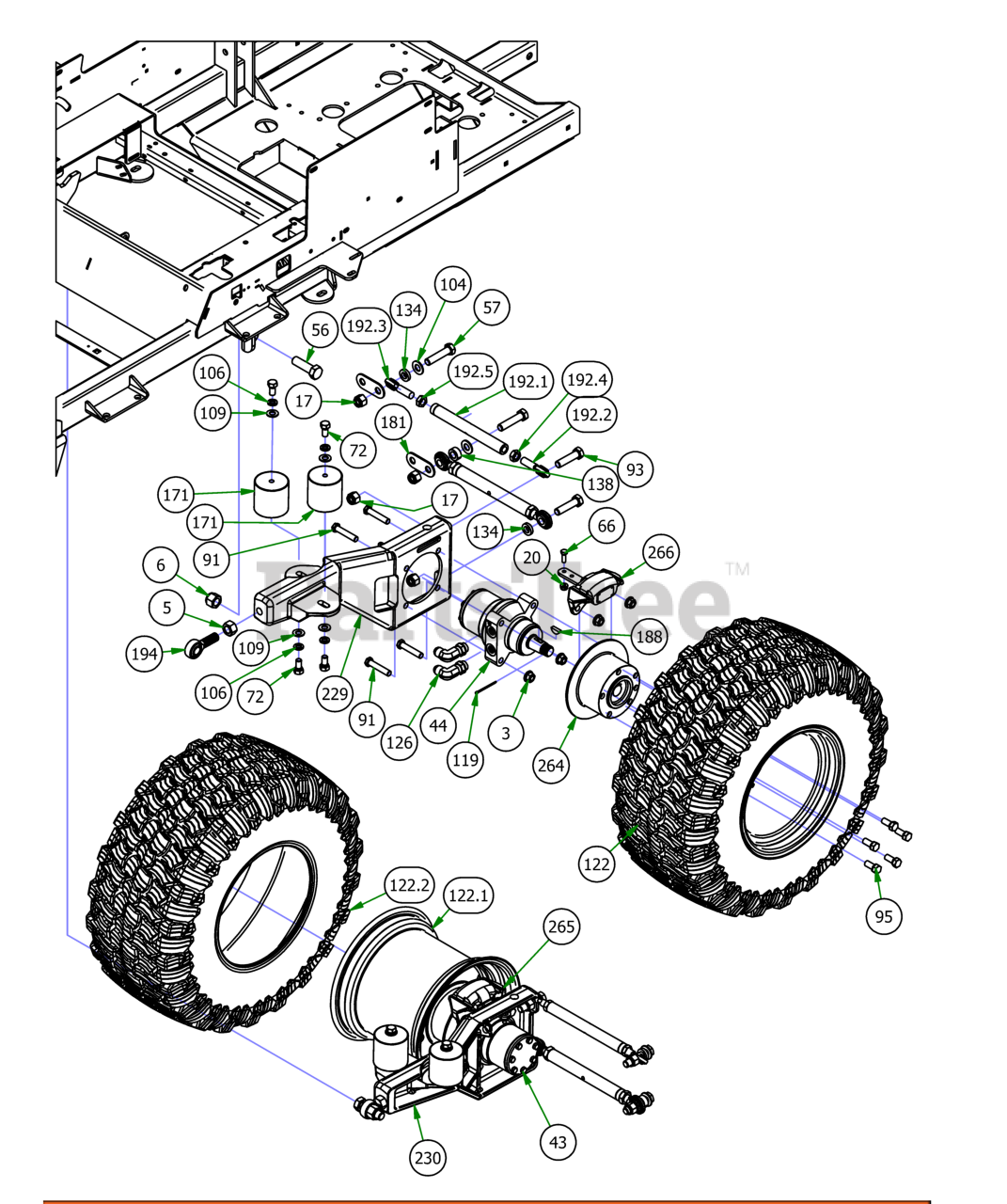

REAR SWING ARMS Parts Diagram

  • Title

3

Bad Boy 013-0010-00

1/2-13 Gr 8 Centerlock Flange Nut

$1.49

$

In Stock, only 3 left!

0

5

Bad Boy 013-0022-00

3/4"-16 Fine Full Nut

$7.99

$

In Stock, only 2 left!

0

6

Bad Boy 013-0023-00

3/4" Course Thread Nylon Lock Nut

$7.99

$

Usually ships in 4-7 days

0

17

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

20

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

43

Bad Boy 015-4600-00

18cc Parker Wheel Motor- Right

$683.99

$

Usually ships in 4-7 days

0

44

Bad Boy 015-4601-00

18cc Parker Wheel Motor- Left

$683.99

$

Usually ships in 4-7 days

0

56

Bad Boy 018-0045-00

3/4 x 2 1/2 Course Thread Bolt

$3.49

$

Usually ships in 4-7 days

0

57

Bad Boy 018-0049-00

AS 2465 - 5/8 x 2 3/4 UNC

$4.99

$

Usually ships in 4-7 days

0

66

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, Qty 5

0

72

Bad Boy 018-2030-00

1/2" x 1" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

91

Bad Boy 018-6041-00

1/2-13 x 2.75 Gr. 8 Hex Head Bolt

$3.49

$

In Stock, only 3 left!

0

93

Bad Boy 018-6059-00

5/8" x 2 1/2" Grade 5 Hex Bolt (Coarse)

$2.99

$

In Stock, only 2 left!

0

95

Bad Boy 018-7033-00

1/2-20 x 1-1/2 Lug Bolts Zinc

$2.49

$

In Stock, Qty 20+

0

104

Bad Boy 019-0009-00

5/8" Flat Washer SAE Spec Grade 8

$3.49

$

Usually ships in 4-7 days

0

106

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

109

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 1 left!

0

119

Bad Boy 020-7022-00

1/8x2-1/4 cotter pin Zinc

$0.99

$

In Stock, only 2 left!

0

122

Bad Boy 022-4090-00

2019 Assy-26x12-12 Reaper Turf -10.5" Rim

$389.99

$

In Stock, only 2 left!

0

126

Bad Boy 024-2065-00

2019 Rouge/Renegade Wheel Motor 90* Fitting #6801-10L

$19.99

$

Usually ships in 4-7 days

0

134

Bad Boy 025-0071-00

Spacer 1.125OD x .625 ID x .250 Length

$15.99

$

Usually ships in 4-7 days

0

138

Bad Boy 025-7020-00

5/8" x 1/" Collar W/One Set Screw

$4.99

$

In Stock, only 2 left!

0

171

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

181

Bad Boy 039-2145-00

2019 Suspension Gusset Outlaw

$15.99

$

Usually ships in 4-7 days

0

188

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0

192

Bad Boy 048-6061-00

2019 Suspension Radius Rod Assembly

$62.99

$

Usually ships in 4-7 days

0

193

Bad Boy 048-6064-00

2019 Suspension Radius Rod Assembly

$83.99

$

In Stock, only 2 left!

0

194

Bad Boy 048-7001-00

3/4-16 RH Male Rod End

$30.99

$

In Stock, Qty 5

0

229

Bad Boy 070-0001-00

2019 Left Trailing Arm

$332.99

$

Usually ships in 4-7 days

0

230

Bad Boy 070-0002-00

2019 Right Trailing Arm

$250.99

$

Usually ships in 4-7 days

0

233

Bad Boy 070-5374-19

2019 Renegade Diesel Frame - Powdercoated

$

$

Currently unavailable

264

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

265

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

0

266

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

0

122.1

Bad Boy 022-4086-00

2019 10.5" Wheel

$206.99

$

Usually ships in 4-7 days

0

122.2

Bad Boy 022-4085-00

2019 26x12-12 Reaper Turf Tire

$250.99

$

In Stock, only 4 left!

0

192.1

Bad Boy 048-0001-00

2019 Suspension Link Body

$30.99

$

Usually ships in 4-7 days

0

192.2

Bad Boy 048-6062-00

2019 RH 5/8" Heim

$45.99

$

In Stock, only 3 left!

0

192.3

Bad Boy 048-6063-00

2019 LH 5/8" Heim

$45.99

$

In Stock, only 3 left!

0

192.4

Bad Boy 013-0019-00

5/8-11 HEX JAM NUT ZINC

$4.99

$

Usually ships in 4-7 days

0

192.5

Bad Boy 013-0020-00

NUT, 5/8-18LH

$4.99

$

Usually ships in 4-7 days

0

193.1

Bad Boy 048-0002-00

Rear Radius Rod, 3/4 Body

$

$

Currently unavailable

193.2

Bad Boy 048-6065-00

3/4-16 x 5/8 RH Heim

$45.99

$

Usually ships in 4-7 days

0

193.3

Bad Boy 048-6066-00

3/4-16 x 5/8 LH Heim

$45.99

$

Usually ships in 4-7 days

0

193.4

Bad Boy 013-0027-00

3/4-16 HEX JAM NUT ZINC

$

$

Currently unavailable

193.5

Bad Boy 013-0028-00

3/4-16 LH HEX JAM NUT ZINC

$2.49

$

Usually ships in 4-7 days

0
