Bad Boy Renegade Diesel - Bad Boy Zero-Turn Mower (2020) REAR SWING ARMS Parts Lookup with Diagrams

4

Bad Boy 013-0022-00

3/4"-16 Fine Full Nut

$7.99

$

In Stock, only 2 left!

5

Bad Boy 013-0023-00

3/4" Course Thread Nylon Lock Nut

$7.99

$

Usually ships in 4-7 days

12

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

15

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

18

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

41

Bad Boy 015-4600-00

18cc Parker Wheel Motor- Right

$683.99

$

Usually ships in 4-7 days

42

Bad Boy 015-4601-00

18cc Parker Wheel Motor- Left

$683.99

$

Usually ships in 4-7 days

47

Bad Boy 018-0015-00

1/2" x 3" Hex Bolt

$3.49

$

Usually ships in 4-7 days

54

Bad Boy 018-0045-00

3/4 x 2 1/2 Course Thread Bolt

$3.49

$

Usually ships in 4-7 days

55

Bad Boy 018-0049-00

AS 2465 - 5/8 x 2 3/4 UNC

$4.99

$

Usually ships in 4-7 days

64

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 1 left!

70

Bad Boy 018-2030-00

1/2" x 1" Hex Bolt

$3.49

$

Usually ships in 4-7 days

89

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 4 left!

91

Bad Boy 018-6059-00

5/8" x 2 1/2" Grade 5 Hex Bolt (Coarse)

$2.99

$

In Stock, only 2 left!

93

Bad Boy 018-7033-00

1/2-20 x 1-1/2 Lug Bolts Zinc

$2.49

$

In Stock, Qty 20+

102

Bad Boy 019-0009-00

5/8" Flat Washer SAE Spec Grade 8

$3.49

$

Usually ships in 4-7 days

104

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

107

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 1 left!

117

Bad Boy 020-7022-00

1/8x2-1/4 cotter pin Zinc

$0.99

$

In Stock, only 2 left!

120

Bad Boy 022-4090-00

2019 Assy-26x12-12 Reaper Turf -10.5" Rim

$389.99

$

In Stock, only 2 left!

124

Bad Boy 024-2065-00

2019 Rouge/Renegade Wheel Motor 90* Fitting #6801-10L

$19.99

$

Usually ships in 4-7 days

132

Bad Boy 025-0071-00

Spacer 1.125OD x .625 ID x .250 Length

$15.99

$

Usually ships in 4-7 days

136

Bad Boy 025-7020-00

5/8" x 1/" Collar W/One Set Screw

$4.99

$

In Stock, only 2 left!

169

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

179

Bad Boy 039-2145-00

2019 Suspension Gusset Outlaw

$15.99

$

Usually ships in 4-7 days

186

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

190

Bad Boy 048-6061-00

2019 Suspension Radius Rod Assembly

$62.99

$

Usually ships in 4-7 days

191

Bad Boy 048-6064-00

2019 Suspension Radius Rod Assembly

$83.99

$

In Stock, only 2 left!

192

Bad Boy 048-7001-00

3/4-16 RH Male Rod End

$30.99

$

In Stock, Qty 5

227

Bad Boy 070-0001-00

2019 Left Trailing Arm

$332.99

$

Usually ships in 4-7 days

228

Bad Boy 070-0002-00

2019 Right Trailing Arm

$250.99

$

Usually ships in 4-7 days

231

Bad Boy 070-5374-19

2019 Horizontal Diesel Frame

$

Currently unavailable 

262

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

263

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

264

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

120.1

Bad Boy 022-4086-00

2019 10.5" Wheel

$206.99

$

Usually ships in 4-7 days

120.2

Bad Boy 022-4085-00

2019 26x12-12 Reaper Turf Tire

$250.99

$

Usually ships in 4-7 days

190.1

Bad Boy 048-0001-00

2019 Suspension Link Body

$30.99

$

Usually ships in 4-7 days

190.2

Bad Boy 048-6062-00

2019 RH 5/8" Heim

$45.99

$

In Stock, only 3 left!

190.3

Bad Boy 048-6063-00

2019 LH 5/8" Heim

$45.99

$

In Stock, only 3 left!

190.4

Bad Boy 013-0019-00

5/8-11 HEX JAM NUT ZINC

$4.99

$

Usually ships in 4-7 days

190.5

Bad Boy 013-0020-00

NUT, 5/8-18LH

$4.99

$

Usually ships in 4-7 days

191.1

Bad Boy 048-0002-00

Rear Radius Rod, 3/4 Body

$

Currently unavailable 

191.2

Bad Boy 048-6065-00

3/4-16 x 5/8 RH Heim

$45.99

$

Usually ships in 4-7 days

191.3

Bad Boy 048-6066-00

3/4-16 x 5/8 LH Heim

$45.99

$

Usually ships in 4-7 days

191.4

Bad Boy 013-0027-00

3/4-16 HEX JAM NUT ZINC

$

Currently unavailable 

191.5

Bad Boy 013-0028-00

3/4-16 LH HEX JAM NUT ZINC

$2.49

$

Usually ships in 4-7 days

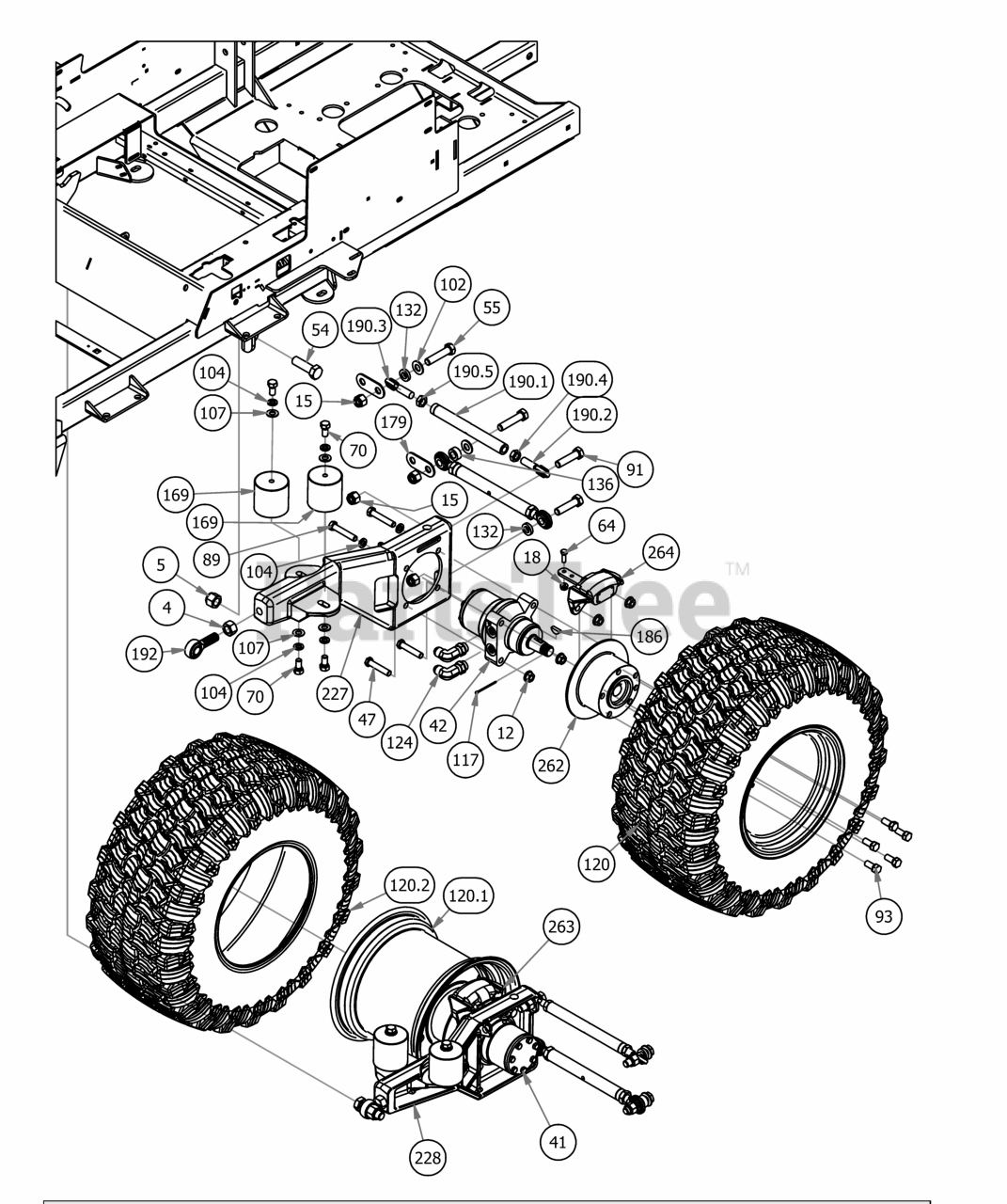

Renegade Diesel - Bad Boy Zero-Turn Mower (2020) REAR SWING ARMS Parts Diagram

REAR SWING ARMS Parts Diagram
