Renegade Diesel - Bad Boy Zero-Turn Mower (2020) ENGINE BAY Parts Diagram

Zero-Turn Mower

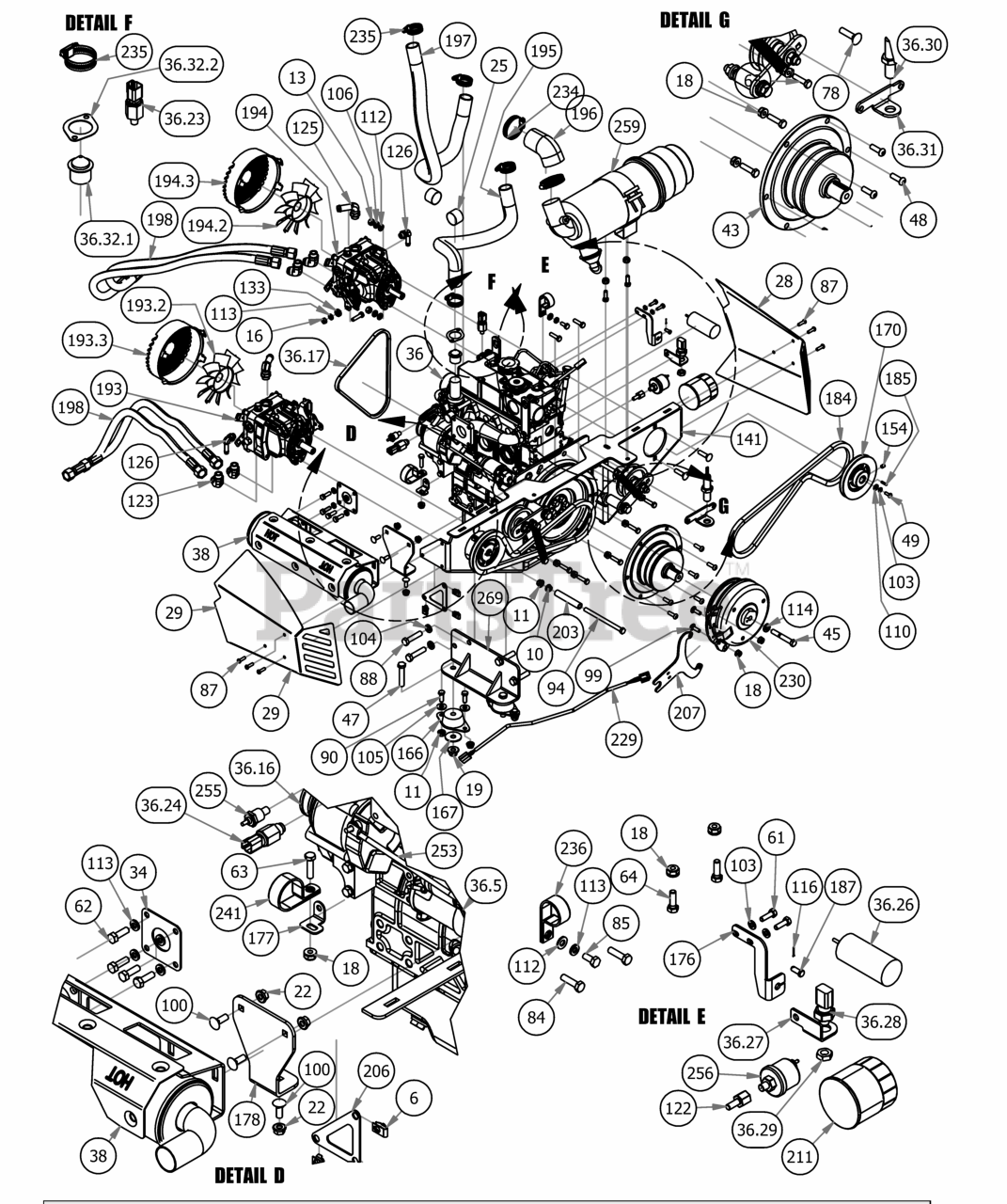

ENGINE BAY Parts Diagram

6

Bad Boy 013-0054-00

1/4-20 Cage Nut

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

11

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

13

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

16

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

18

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

19

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

25

Bad Boy 014-1053-00

2019 Plastic Mesh Hose Loom

$

$

Not available

28

Bad Boy 014-5060-00

2019 Horizontal Pump Cover - Right

$22.99

$

Usually ships in 4-7 days

0

29

Bad Boy 014-5061-00

2019 Horizontal Pump Cover - Left

$34.99

$

Usually ships in 0 days

0

34

Bad Boy 015-0010-50

Diesel Muffler Gasket

$18.99

$

Usually ships in 4-7 days

0

36

Bad Boy 015-0096-00

24.7 hp Perkins Engine

$

$

Not available

38

Bad Boy 015-1019-00

2019 Renegade 1100cc Diesel Muffler

$200.99

$

Usually ships in 4-7 days

0

43

Bad Boy 017-3001-00

2019 Diesel Stub Shaft Double V

$172.99

$

Usually ships in 4-7 days

0

45

Bad Boy 018-0007-00

7/16"-20 x 3" Hex Bolt Gr. 8

$3.49

$

Usually ships in 4-7 days

0

46

Bad Boy 018-0010-00

1/2-13 X 90MM HEX FLANGE BOLT W/SHOULDER (GR.8) ZINC

$6.99

$

In Stock, Qty 20+

0

47

Bad Boy 018-0015-00

1/2" x 3" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

48

Bad Boy 018-0016-00

5/16-18 x 1 Button Head Torx

$3.49

$

Usually ships in 4-7 days

0

49

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 8

0

58

Bad Boy 018-1010-00

3/8-16 X 3-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

61

Bad Boy 018-2000-00

M6x1.0x 20mm 8.8 Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

62

Bad Boy 018-2001-00

M8 x 1.25 x 25mm Hex Head Bolt

$0.99

$

Usually ships in 4-7 days

0

63

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

64

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 1 left!

0

78

Bad Boy 018-4706-00

3/8 x 1 1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

84

Bad Boy 018-5320-00

M8 x 1.25 x 30mm Hex Head Bolt

$1.49

$

Usually ships in 4-7 days

0

85

Bad Boy 018-5321-00

M8x1.20x20MM Hex head bolt

$1.99

$

Usually ships in 4-7 days

0

87

Bad Boy 018-6014-00

Hexagon Socket Button Head Cap Screw

$6.49

$

Usually ships in 4-7 days

0

88

Bad Boy 018-6022-00

12mm Bolt- Diesel

$3.49

$

Usually ships in 4-7 days

0

90

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

94

Bad Boy 018-7060-00

3/8-16 x 5 1/2 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

99

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

100

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, Qty 6

0

103

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, Qty 6

0

104

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

105

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

106

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

108

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

110

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

112

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

113

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

114

Bad Boy 019-8053-00

7/16" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

116

Bad Boy 020-2000-00

3/32 X 1/2 Cotter-pin

$0.99

$

Usually ships in 4-7 days

0

122

Bad Boy 024-0070-00

8mm x 1/8 mpt Adaptor

$53.99

$

Usually ships in 4-7 days

0

123

Bad Boy 024-2052-00

2019 Outlaw 90 Degree Pump Fitting #6801-10-08

$13.99

$

Usually ships in 4-7 days

0

125

Bad Boy 024-5002-00

90 Degree Fitting, 1/2 x 3/4, 4601-8-8

$18.99

$

Usually ships in 4-7 days

0

126

Bad Boy 024-5206-00

90 Degree Fitting, 3/8 s 9/16

$13.99

$

Usually ships in 4-7 days

0

133

Bad Boy 025-2001-00

ACS Spacer 3/4x3/8x1/4

$16.99

$

Usually ships in 4-7 days

0

141

Bad Boy 026-8050-00

2020 Diesel Pump Plate Weldment - Painted

$

$

Not available

154

Bad Boy 030-0075-00

5/16-24 X 3/8 Set Screw

$1.99

$

Usually ships in 4-7 days

0

166

Bad Boy 032-4050-00

Rubber Compression Mount

$81.99

$

Usually ships in 4-7 days

0

167

Bad Boy 032-4051-00

Snubbing Washer

$18.99

$

Usually ships in 4-7 days

0

170

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 13

0

173

Bad Boy 034-9000-00

ZT and ACS Handle Spring

$16.99

$

In Stock, Qty 5

0

174

Bad Boy 035-0005-00

2019 Outlaw Gen2 Horizontal Push Rod Assembly

$49.99

$

In Stock, only 4 left!

0

176

Bad Boy 039-1010-00

Diesel Throttle Bracket 4 Tier

$5.99

$

Usually ships in 4-7 days

0

177

Bad Boy 039-1015-00

Diesel Radiator Hose Clamp Bracket

$2.49

$

Usually ships in 4-7 days

0

178

Bad Boy 039-1025-00

2019 Diesel Muffler Bracket

$

$

Currently unavailable

181

Bad Boy 039-6950-98

2019 Renegade Belt Tensioner LH

$90.99

$

Usually ships in 4-7 days

0

182

Bad Boy 039-6950-99

2019 Renegade Belt Tensioner LH

$90.99

$

Usually ships in 4-7 days

0

184

Bad Boy 041-8000-00

2019 Renegade Pump Belt

$85.99

$

In Stock, Qty 9

0

185

Bad Boy 042-5012-00

5mm x 1.25" Key

$

$

Not available

187

Bad Boy 044-2006-00

1/4-5/8 Clevis Pin

$0.99

$

Usually ships in 4-7 days

0

193

Bad Boy 050-3001-00

2019 Rogue/Renegade Left Pump 16cc

$797.99

$

Usually ships in 4-7 days

0

194

Bad Boy 050-3003-00

2019 Outlaw Renegade Right Pump 16cc

$740.99

$

Usually ships in 4-7 days

0

195

Bad Boy 051-3003-00

2019 Diesel Radiator Hose Upper

$52.99

$

Usually ships in 4-7 days

0

196

Bad Boy 051-3004-00

2019 Diesel Air intake Hose

$15.99

$

Usually ships in 4-7 days

0

197

Bad Boy 051-3005-00

2019 Diesel Radiator Hose Lower

$47.99

$

Usually ships in 4-7 days

0

198

Bad Boy 051-6007-00

2019 Renegade Hydro Hose

$58.99

$

In Stock, only 2 left!

0

203

Bad Boy 051-8076-00

3/8 hose 4" long

$6.99

$

Usually ships in 4-7 days

0

206

Bad Boy 057-5915-00

Pump Plate Clip Nut Holder

$18.99

$

Usually ships in 4-7 days

0

207

Bad Boy 057-5919-00

2019 Outlaw Renegade Clutch Bracket

$30.99

$

Usually ships in 4-7 days

0

211

Bad Boy 063-2010-00

CAT Oil Filter

$36.99

$

In Stock, Qty 6

0

229

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

230

Bad Boy 070-5040-00

Clutch for Diesel/Vanguard

$454.99

$

In Stock, only 3 left!

0

234

Bad Boy 072-2002-00

2-1/2" Hose Clamp

$12.99

$

Usually ships in 4-7 days

0

235

Bad Boy 072-2003-00

1 1/8" Hose Clamp

$6.49

$

Usually ships in 4-7 days

0

236

Bad Boy 072-5000-00

Diesel Hydraulic Hose Clamp

$7.99

$

Usually ships in 4-7 days

0

241

Bad Boy 072-8090-00

Diesel Clamp 1 3/4" Vinyl

$3.99

$

Usually ships in 4-7 days

0

253

Bad Boy 086-0003-00

Red Battery Cable Alternator to Starter Cable

$8.49

$

Usually ships in 4-7 days

0

255

Bad Boy 086-7003-00

Coolant Temperature Sender

$33.99

$

Usually ships in 4-7 days

0

256

Bad Boy 086-7004-00

Oil Pressure Guage with Sender

$136.99

$

Usually ships in 4-7 days

0

259

Bad Boy 088-1010-50

Enginaire Canister VLR-Complet

$262.99

$

Usually ships in 4-7 days

0

269

Bad Boy 201-8030-00

2019 Diesel Motor Mount - Weldment

$

$

Currently unavailable

36.5

Bad Boy 015-0096-08

Starter

$797.99

$

Usually ships in 4-7 days

0

174.1

Bad Boy 035-0005-01

2019 Outlaw Gen2 Horizontal Push Rod

$

$

Not available

174.2

Bad Boy 035-0006-00

2019 Outlaw Gen2 Horizontal Push Rod Adjuster

$

$

Currently unavailable

174.3

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

174.4

Bad Boy 048-3003-00

Spherical Rod End - Outlaw

$22.99

$

Usually ships in 4-7 days

0

174.5

Bad Boy 048-3002-00

Spherical Rod End - Outlaw

$34.99

$

Usually ships in 4-7 days

0

174.6

Bad Boy 013-6050-00

5/16" LH Fine Threaded Jam Nut

$4.99

$

Usually ships in 4-7 days

0

174.7

Bad Boy 013-6049-00

5/16" RH Fine Threaded Jam Nut

$4.99

$

Usually ships in 4-7 days

0

193.2

Bad Boy 015-9999-00

Hydraulic Fan

$30.99

$

In Stock, Qty 5

0

193.3

Bad Boy 014-5600-00

Fan Guard 6" Fits wheel Motor Pumps

$42.99

$

Usually ships in 4-7 days

0

194.2

Bad Boy 015-9999-00

Hydraulic Fan

$30.99

$

In Stock, Qty 5

0

194.3

Bad Boy 014-5600-00

Fan Guard 6" Fits wheel Motor Pumps

$42.99

$

Usually ships in 4-7 days

0

36.16

Bad Boy 015-0096-09

Altenator

$911.99

$

Usually ships in 4-7 days

0

36.17

Bad Boy 041-0010-00

Diesel Engine Belt

$90.99

$

Usually ships in 4-7 days

0

36.23

Bad Boy 015-0096-06

Oil Pressure Sensor

$143.99

$

Usually ships in 4-7 days

0

36.24

Bad Boy 015-0096-07

Coolant Temperature Sensor

$242.99

$

Usually ships in 4-7 days

0

36.26

Bad Boy 015-0096-05

Fuel Shutdown Solenoid

$1709.99

$

Usually ships in 4-7 days

0

36.27

Bad Boy 015-0096-04

Barometric Pressure Sensor Bracket

$34.99

$

Usually ships in 4-7 days

0

36.28

Bad Boy 015-0096-03

Barometric Pressure Sensor

$250.99

$

Usually ships in 4-7 days

0

36.29

Bad Boy 013-4000-00

Pressure Sensor Nut for 1100cc Diesel

$9.49

$

Usually ships in 4-7 days

0

36.30

Bad Boy 015-0096-01

Crank Sensor w/ nut

$181.99

$

Usually ships in 4-7 days

0

36.31

Bad Boy 015-0096-02

Crank Sensor Bracket

$56.99

$

Usually ships in 4-7 days

0

36.32.1

Bad Boy 015-0070-00

1100cc Diesel Thermostat

$91.99

$

Usually ships in 4-7 days

0

36.32.2

Bad Boy 015-0071-00

1100cc Diesel Thermostat Gasket

$22.99

$

Usually ships in 4-7 days

0
