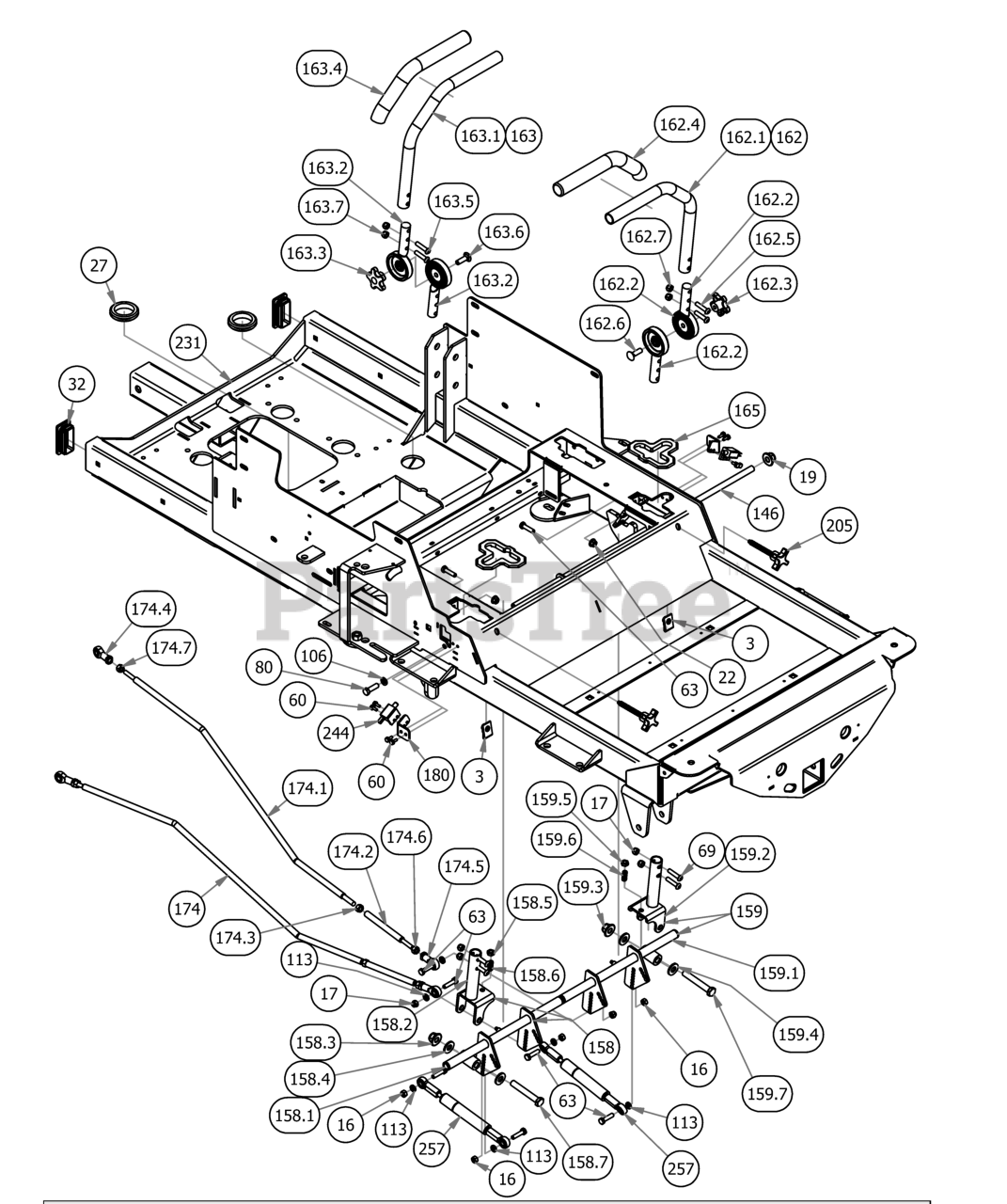

Renegade Diesel - Bad Boy Zero-Turn Mower (2020) CONTROL ARMS Parts Diagram

Zero-Turn Mower

CONTROL ARMS Parts Diagram

  • Title
3

Bad Boy 013-0021-00

Extruded Nut 3/8"-16 3/4" Hole Center With Patch

$4.99

$

In Stock, Qty 6

0

16

$0.99

$

In Stock, Qty 5

0

17

$0.99

$

In Stock, only 4 left!

0

19

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

27

Bad Boy 014-2052-00

2019 2" x .25 Rubber Grommet

$13.99

$

Usually ships in 4-7 days

0

32

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

$3.49

$

Usually ships in 4-7 days

0

60

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

0

63

Bad Boy 018-2006-00

5/16 x 1 1/4 Hex Bolt

$0.99

$

In Stock, Qty 5

0

69

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

80

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

106

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

113

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

146

Bad Boy 028-0051-00

2019 Steering Actuator Rod

$24.99

$

Usually ships in 4-7 days

0

158

Bad Boy 031-0030-19

2019 R Series RH Arm Rod Assembly

$90.99

$

Usually ships in 4-7 days

0

159

Bad Boy 031-0031-19

2019 R Series LH Arm Rod Assembly

$90.99

$

In Stock, only 2 left!

0

162

Bad Boy 031-9005-70

2019 Left Hand ADJ. Steering Arm Kit

$151.99

$

Usually ships in 4-7 days

0

163

Bad Boy 031-9055-70

2019 Right Hand ADJ. Steering Arm Kit

$131.99

$

Usually ships in 4-7 days

0

165

Bad Boy 032-0002-00

Snap-In Bushing-2019

$16.99

$

In Stock, only 2 left!

0

174

Bad Boy 035-0005-00

2019 Outlaw Gen2 Horizontal Push Rod Assembly

$49.99

$

In Stock, only 4 left!

0

180

Bad Boy 039-2160-00

2019 Arm Switch Bracket

$14.99

$

Usually ships in 4-7 days

0

205

Bad Boy 057-5800-00

Speed Limiting Knob 3/8-16X 3"

$6.99

$

Usually ships in 4-7 days

0

231

Bad Boy 070-5374-19

2019 Horizontal Diesel Frame

$

$

Currently unavailable

244

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

257

Bad Boy 087-0002-00

2019 SROID Damper With Spherical Rod Ends

$66.99

$

Usually ships in 4-7 days

0

158.1

Bad Boy 031-0030-00

2019 Drive Arm Actuator right

$49.99

$

Usually ships in 4-7 days

0

158.2

Bad Boy 031-0014-00

Drive Arm Pivot

$26.99

$

Usually ships in 4-7 days

0

158.3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

158.4

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

158.5

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

158.6

Bad Boy 018-0063-00

3/8-16 x 1 Set Socket Set Screw Cup Point

$3.49

$

Usually ships in 4-7 days

0

158.7

Bad Boy 018-0050-00

1/2-13 x 3.25 GR 5 Hex Bolt Zinc

$0.99

$

Usually ships in 4-7 days

0

159.1

Bad Boy 031-0031-00

2019 Drive Arm Actuator left

$49.99

$

Usually ships in 4-7 days

0

159.2

Bad Boy 031-0014-00

Drive Arm Pivot

$26.99

$

Usually ships in 4-7 days

0

159.3

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

159.4

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

159.5

Bad Boy 013-0017-00

3/8-16 Half Jam Nut

$3.49

$

Usually ships in 4-7 days

0

159.6

Bad Boy 018-0063-00

3/8-16 x 1 Set Socket Set Screw Cup Point

$3.49

$

Usually ships in 4-7 days

0

159.7

Bad Boy 018-0050-00

1/2-13 x 3.25 GR 5 Hex Bolt Zinc

$0.99

$

Usually ships in 4-7 days

0

162.1

Bad Boy 031-9006-00

2019 Steering Arm Grip

$45.99

$

Usually ships in 4-7 days

0

162.2

Bad Boy 031-9005-00

2019 Steering Arm Adjuster Casting

$30.99

$

In Stock, only 2 left!

0

162.3

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

162.4

Bad Boy 069-4010-00

Black Steering Arm Grip

$8.49

$

In Stock, Qty 17

0

162.5

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

162.6

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

162.7

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

163.1

Bad Boy 031-9006-00

2019 Steering Arm Grip

$45.99

$

Usually ships in 4-7 days

0

163.2

Bad Boy 031-9005-00

2019 Steering Arm Adjuster Casting

$30.99

$

In Stock, only 2 left!

0

163.3

Bad Boy 045-5000-00

Black Knob for Adjustable Steering Arm

$5.99

$

In Stock, only 4 left!

0

163.4

Bad Boy 069-4010-00

Black Steering Arm Grip

$8.49

$

In Stock, Qty 17

0

163.5

Bad Boy 018-2020-18

5/16-18 UNC X 1-3/8" BHCS, TORX DRIVE, GR 5

$1.99

$

In Stock, Qty 5

0

163.6

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

163.7

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

174.1

Bad Boy 035-0005-01

2019 Outlaw Gen2 Horizontal Push Rod

$

$

Not available

174.2

Bad Boy 035-0006-00

2019 Outlaw Gen2 Horizontal Push Rod Adjuster

$

$

Currently unavailable

174.3

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

174.4

Bad Boy 048-3003-00

Spherical Rod End - Outlaw

$22.99

$

Usually ships in 4-7 days

0

174.5

Bad Boy 048-3002-00

Spherical Rod End - Outlaw

$34.99

$

Usually ships in 4-7 days

0

174.6

Bad Boy 013-6050-00

5/16" LH Fine Threaded Jam Nut

$4.99

$

Usually ships in 4-7 days

0

174.7

Bad Boy 013-6049-00

5/16" RH Fine Threaded Jam Nut

$4.99

$

Usually ships in 4-7 days

0
