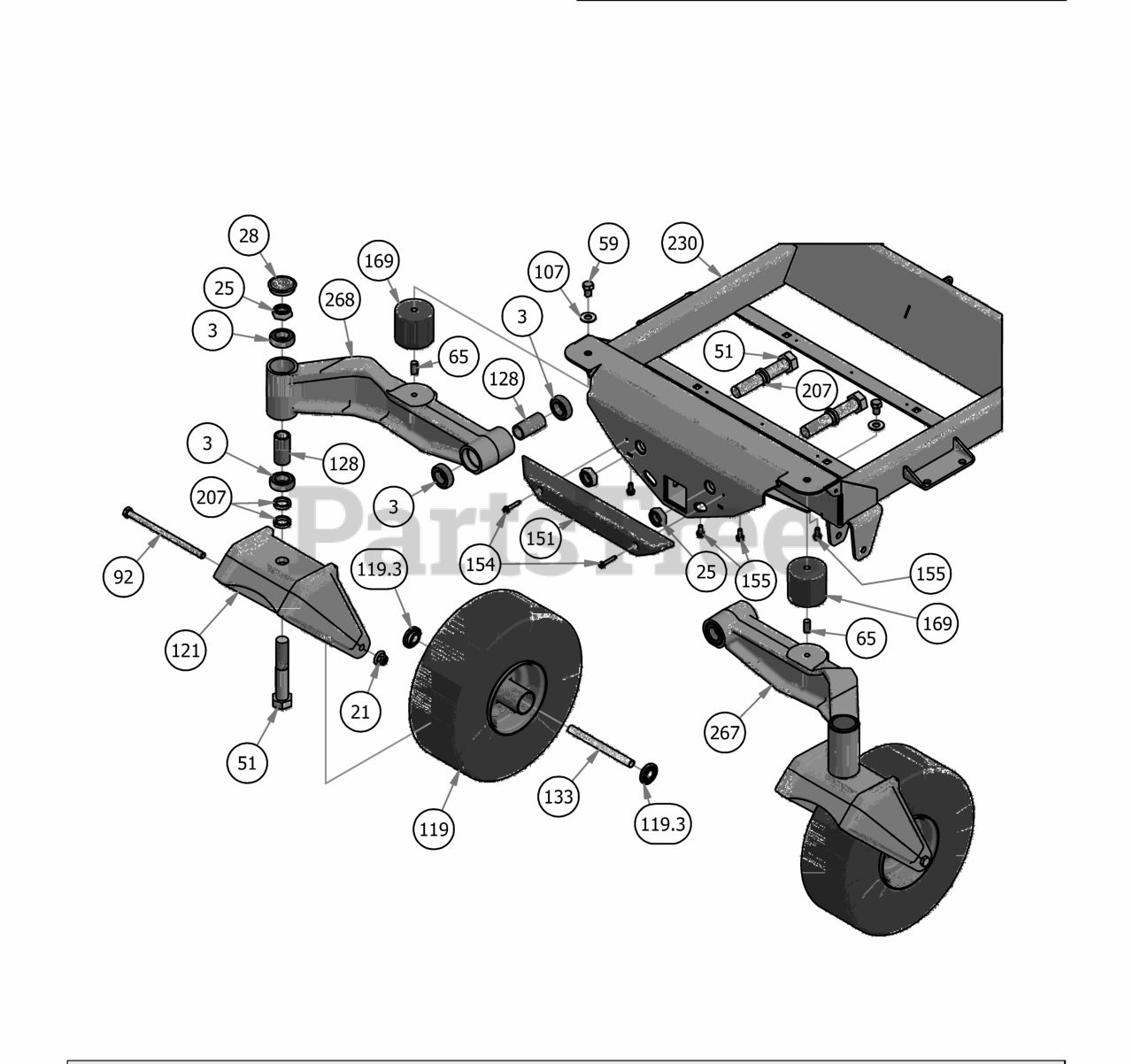

Renegade Diesel - Bad Boy Zero-Turn Mower (2019) FRONT END Parts Diagram

Zero-Turn Mower

FRONT END Parts Diagram

  • Title

3

Bad Boy 010-1050-00

Caster Bearing 2016 - 1641 Bearing

$19.99

$

In Stock, Qty 20+

0

21

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

25

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 8

0

28

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

51

Bad Boy 018-0026-00

1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow

$14.99

$

In Stock, only 2 left!

0

59

Bad Boy 018-1055-00

1/2" x 3/4" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

65

Bad Boy 018-2009-00

1/2-13 x 1" Stud

$6.49

$

Usually ships in 4-7 days

0

92

Bad Boy 018-7010-00

1/2" x 9" GR 5 Hex Bolt

$6.49

$

In Stock, Qty 17

0

107

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

119

Bad Boy 022-0003-00

2019 15x6.00-6 Non Pneumatic Black Front Assembly

$182.99

$

In Stock, Qty 6

0

121

Bad Boy 023-0004-00

2019 Rebel, Rogue, Renegade Front Fork

$193.99

$

Usually ships in 4-7 days

0

128

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

133

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

151

Bad Boy 029-8000-00

2017 XP Bumper

$33.99

$

In Stock, only 2 left!

0

154

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

155

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

169

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

0

207

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 5

0

230

Bad Boy 070-5374-19

2019 Horizontal Diesel Frame

$

$

Currently unavailable

267

Bad Boy 250-0032-00

2019 Front I-Beam Left

$249.99

$

Usually ships in 4-7 days

0

268

Bad Boy 250-0033-00

2019 Front I-Beam Right

$331.99

$

Usually ships in 4-7 days

0

119.3

Bad Boy 022-7010-00

1-3/4" Bearing-Large Bore Front Rim

$21.99

$

In Stock, Qty 20+

0
