RECON 48 (53AH8ST3050) - Cub Cadet 48" Zero-Turn Mower, 23hp Kohler Kohler Engine Assembly 23HP Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

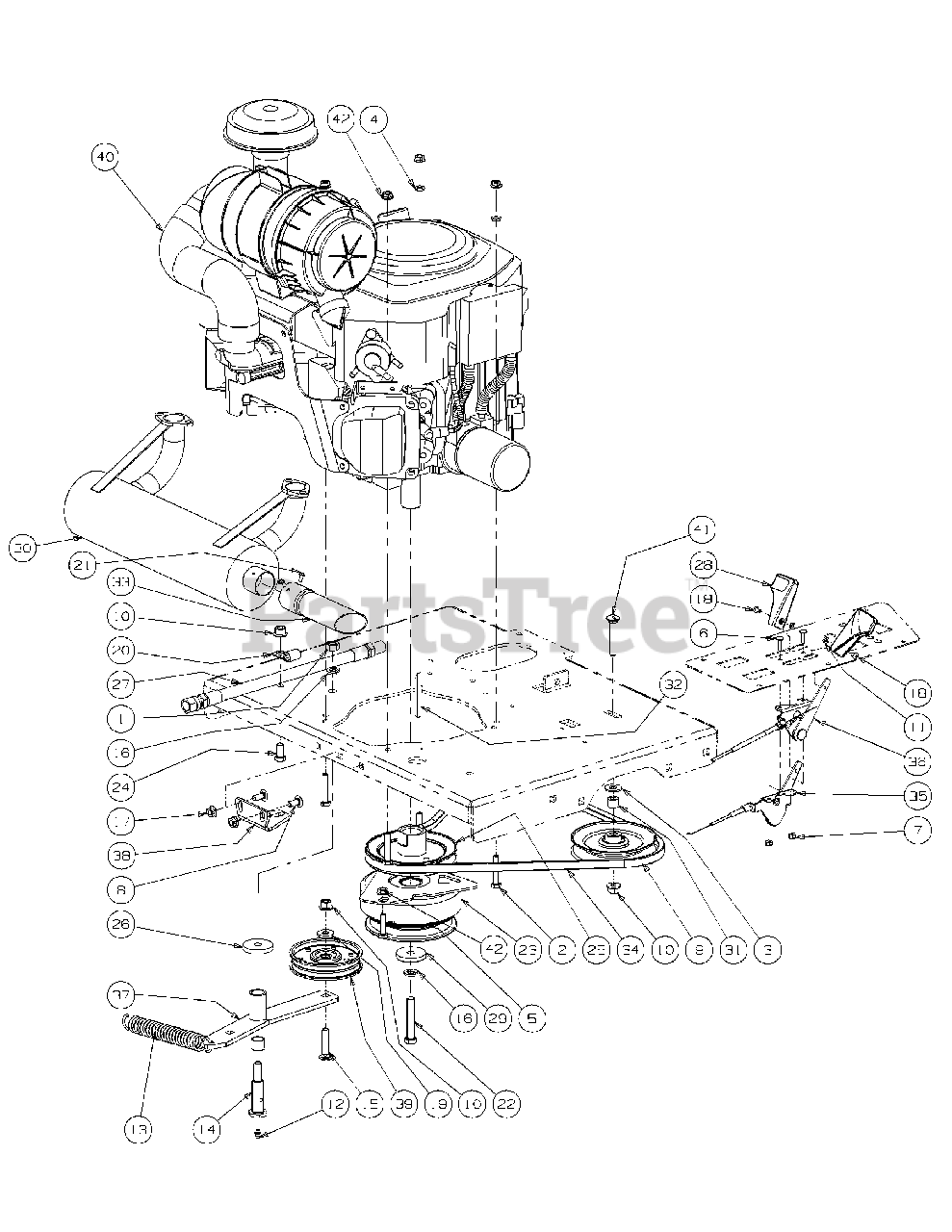

Kohler Engine Assembly 23HP Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00006168

Flat Washer, 3/8 zinc
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00012169

Flat Washer, .320 ID x .591 OD x .078

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

6

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

7

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

8

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.99

$

In Stock, only 3 left!

0

9

Cub Cadet 00021975

Idler Pulley

$74.99

$

In Stock, only 1 left!

0

10

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 01000199

Spring Extension, 1.0 OD x 5.00S

$17.99

$

In Stock, only 4 left!

0

14

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

16

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

19

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 726-3008

Clip, Heat Shield Cable

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0148

Screw, #8-32 x 0.375

$4.49

$

In Stock, Qty 16

0

22

Cub Cadet 01001395

Capscrew, 7/16-20 x 2.50

$4.99

$

In Stock, only 2 left!

0

23

Cub Cadet 01001979P

Clutch Brake, 1.125 ID

$988.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16, .750

$4.49

$

In Stock, Qty 15

0

25

Cub Cadet 01002880

Pump Drive Pulley

$101.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

27

Cub Cadet 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-04914

Control Throttle Knob

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .25

$15.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01006566

Muffler Accessory Kohler
(Superseded to 01006566P)

$

$

Not available

31

Cub Cadet 750-05392

Spacer, 1.50 OD x .385 ID x .585

$12.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2.75

$11.99

$

In Stock, only 1 left!

0

33

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available

34

Cub Cadet 754-04212

Belt, 50.125 Lg

$39.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02003421

Throttle, Control Cable
(Superseded to 02003421P)

$38.99

$

In Stock, only 1 left!

0

36

Cub Cadet 02003423

Choke, Control Cable

$160.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 02004075

Engine Idler Arm Assembly Includes:

$

$

Not available

37

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

38

Cub Cadet 02004926-0637

Retainer Clutch Assembly

$

$

Not available

39

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

40

Cub Cadet 02005089P

Engine, 23HP Kohler

Note: (Before ordering engine parts, verify engine model number.)

$4469.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 02005526

Carriage Bolt, 3/8-16 x 2.25
(Superseded to 710-06072)

$6.49

$

In Stock, only 1 left!

0

42

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 5

0

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

Note: (not shown)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet KH-25-083-04-S

Pre Filter

Note: (not shown)

$32.99

$

In Stock, Qty 20+

0

Cub Cadet KH-25-083-01-S

Air Filter

Note: (not shown)

$32.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

Note: (not shown)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-12-050-01-S

Oil Filter

Note: (not shown)

$13.99

$

In Stock, Qty 20+

0
